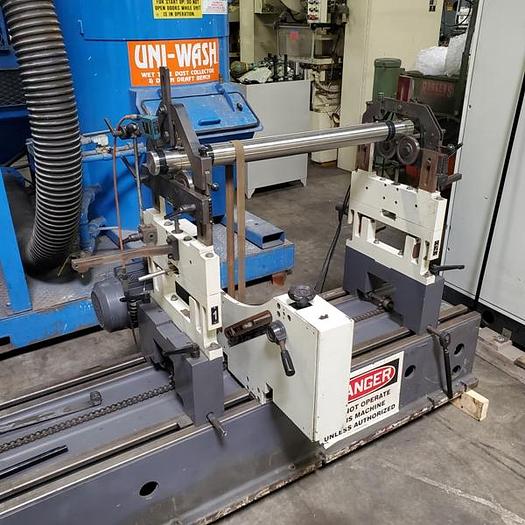

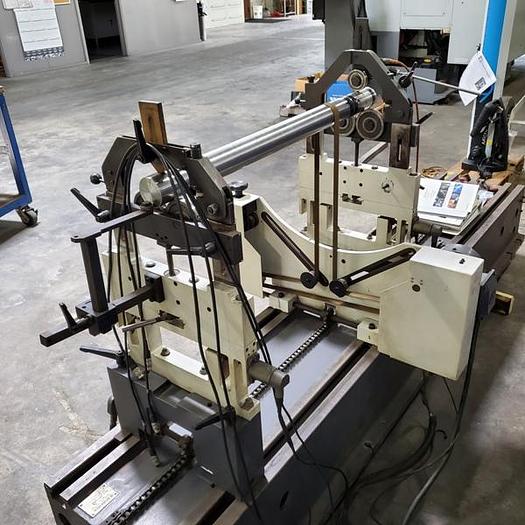

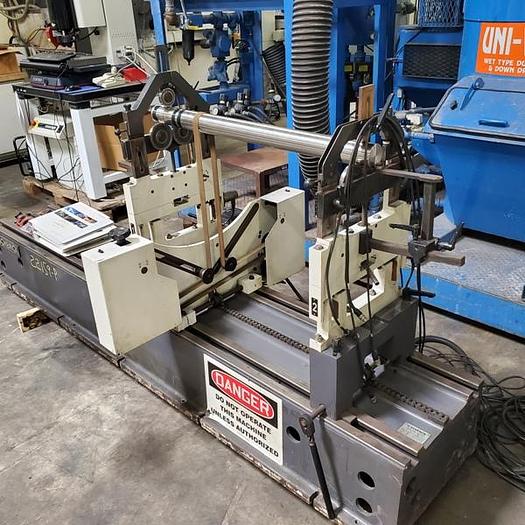

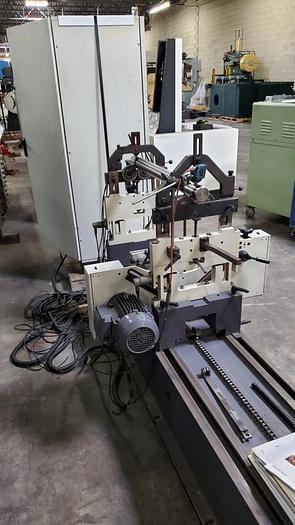

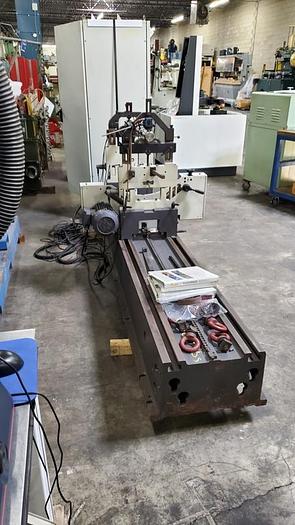

SCHENCK BALANCER

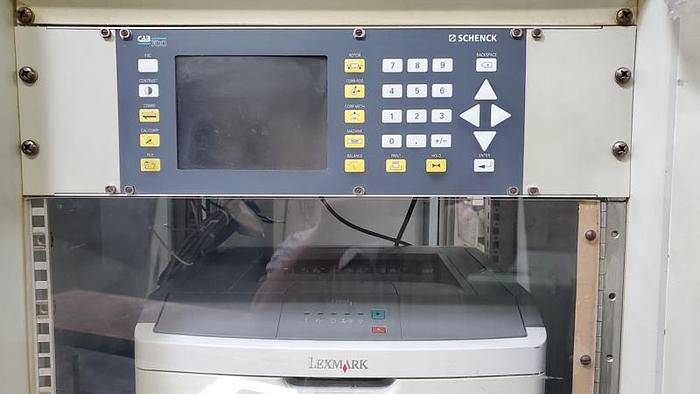

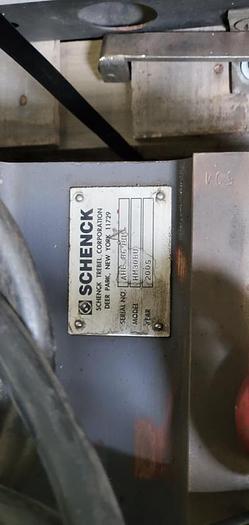

SCHENCK BALANCER PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $29,500.00 HMC Stock # 22159-P Machine Serial No.: AHE-8698M Machine Model No.: HM30BU New Date: 2005 Nominal Weight Capacity: 1,000 Lbs. Base to Center Line of Shaft Being Balanced: 27" Maximum / 25-1/2" Minimum Maximum Distance Between Stands: 96" Minimum Distance Between Stands: 8" EQUIPPED WITH: Schenck CAB 700H Control: 320 x 240 Pixel LCD Display Languages for English, German, French, Dutch, Italian, Swedish, Spanish Basic System: Measuring Unbalanced in 2 Planes or the Static Unbalance and Moment Unbalance Automatic Tolerance Comparison Polar Display in Digital Form Display in Evenly or Unevenly Spaced Components Averaging the Measurements Over Time Balancing Record Printout (Single or Series) Compensation Automatic Self-Test at Switch-On Measuring Range: 1:1 000 000 Speed Range: 120 to 10,000 RPM (This is Only for the Controller; the Actual Top RPM of the Stand and Motor is TBD) Interfaces: Printer RS232C, Computer RS232C, CAN-Bus (Machine Control) Power Supply: 115 Volts Optional Features Supplied from New: Index Balancing Single Compensation (Biasing) Key Compensation Asymmetric Component Correction Siemens Micromaster 440 Variable Frequency Inverter Drive for Main Motor Siemens Micromaster Manual Schenck Manual Control Cabinet Wired for 3 Phase, 220 Volts Overall Size: Stand: 99" LR x 40" FB x 50" High x 1,500 Lbs. Control: 24" LR x 24" FB x 72" High x 500 Lbs.
