GIDDINGS & LEWIS TABLE TYPE HORIZONTAL BORING MILL

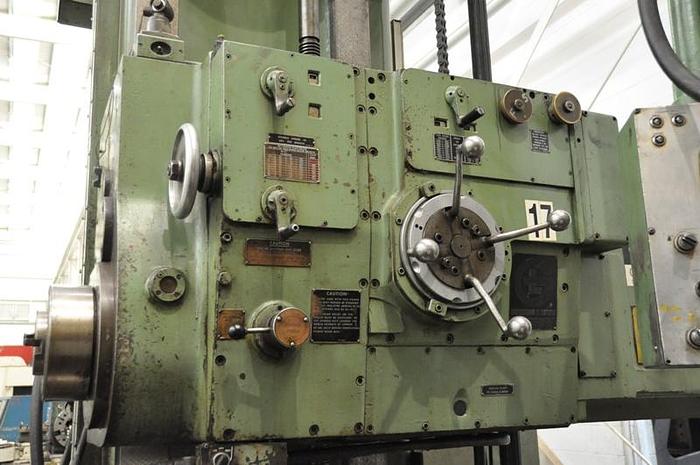

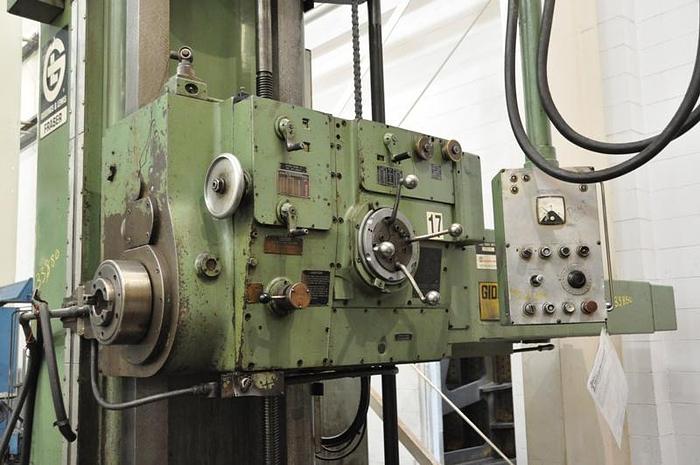

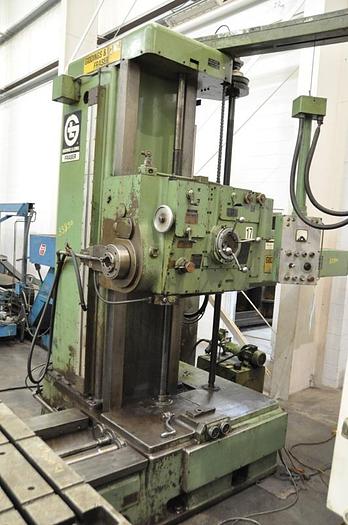

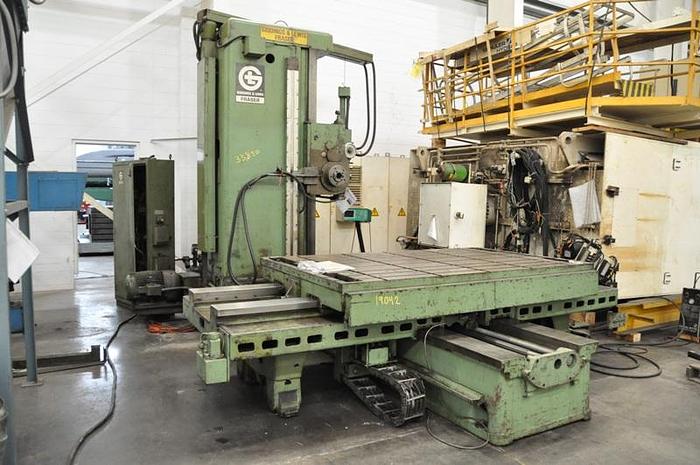

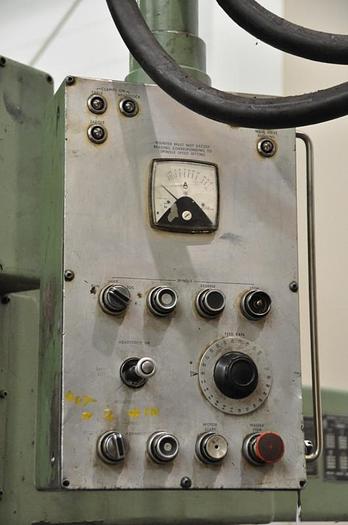

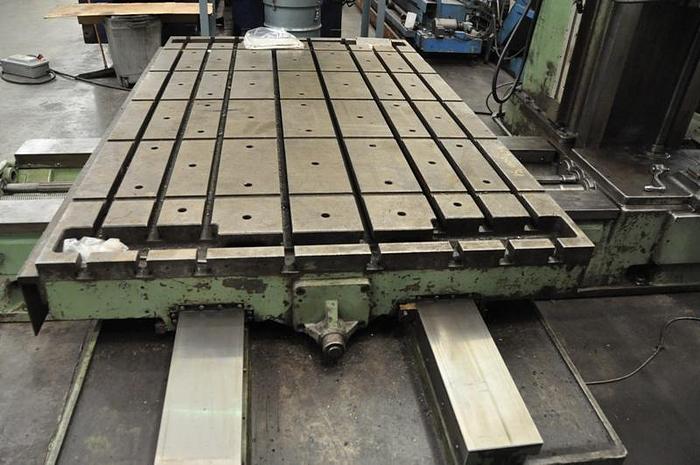

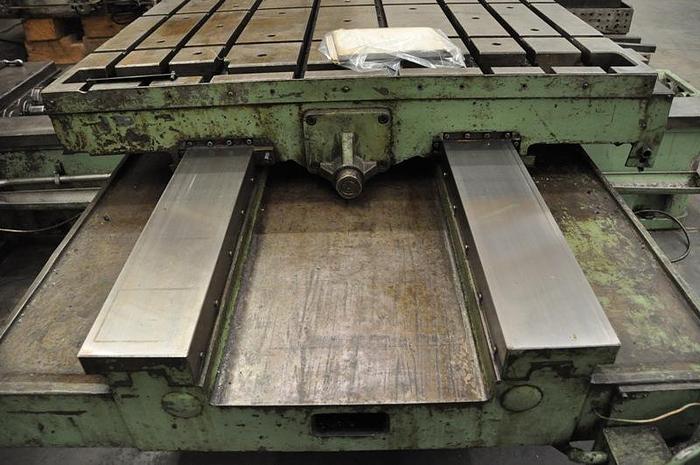

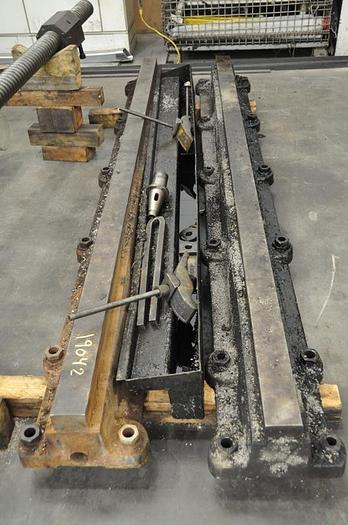

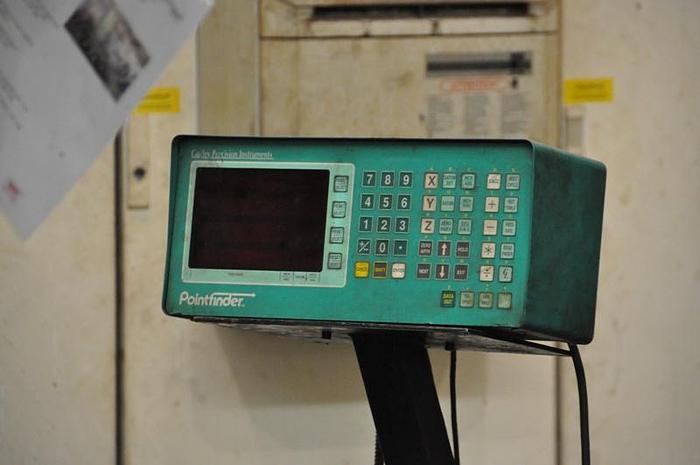

5" GIDDINGS & LEWIS TABLE TYPE HORIZONTAL BORING MILL PRICE: Loaded on Truck, Our Warehouse, York, PA …… $32,500.00 HMC Stock No. 19042 Machine Serial No. 150-910 Machine Model No. 70A-DP5-T Fraser Estimated New Date: 1969 Made in Scotland Table Size: 60" x 98" Table Travel: 86" Saddle Travel: Approx. 60" Head Vertical Travel: 60" Spindle Diameter: 5" Spindle Travel: 33-1/2" (36) Standard Spindle Speeds: 7.5 to 467 RPM (7) Speeds in High Range: 480 to 975 RPM Spindle Taper: #50 National Standard with Power Draw Bolt Spindle Feeds: Standard Range 0.005" to 0.260" IPR Spindle Feeds: High Range 0.002" to 0.120" IPR Milling Feeds: 0.04 to 120 IPM EQUIPPED WITH: Hard Replaceable Bed & Table Ways in Good Condition Soft Vertical Ways in Good Condition Pendant Control 3-Axis Teledyne Gurley Pathfinder Digital Readout Power Rapid Traverse and Clamping Each Axis Manual Spindle Clamping (1) Manual Axis Manual Crank Handle (2) Floor Mounted Table Outrigger Supports 18.5 KW (25 HP) Main Motor, 3 Phase, 50 Cycle, 220 Delta/380/440Y Volts 1-1/2 HP Hydraulic Pump Motor, 3 Phase, 60 Cycle, 230/440 Volts 3/4 HP Power Tool Draw Bar Motor Overall Size of Machine Fully Assembled: 245" Long x 167" Wide x 140" High OVERALL SIZE OF COMPONENTS DISSEMBLED FOR TRUCKING: Machine Base, Column and Head: 245" Long x 101" Wide x 136" High x 33,850 Lbs. Saddle and Table: 152" Long x 63" Wide x 38" High x 15,000 Lbs. Floor Out Riggers (both): 112" Long x 29" wide x 8-3/4" High x 2200 Lbs.
