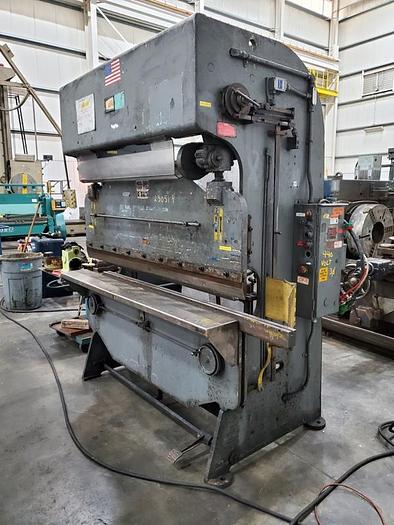

DIACRO HYDRAULIC PRESS BRAKE

DIACRO HYDRAULIC PRESS BRAKE

$8,950 (USD)

orCall 717-846-2600

Description

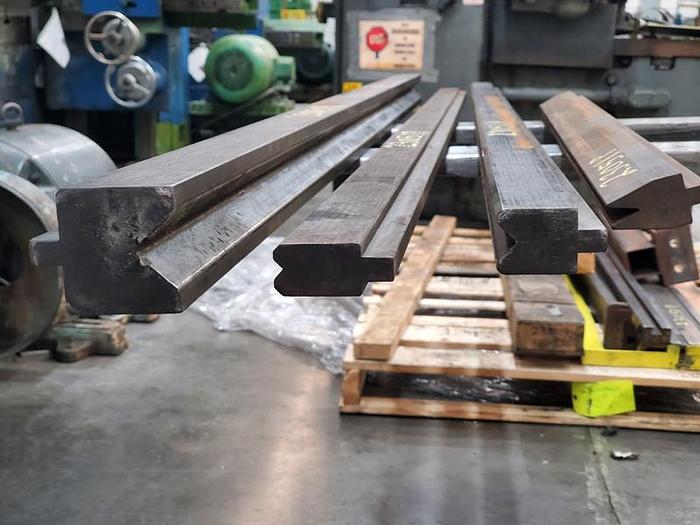

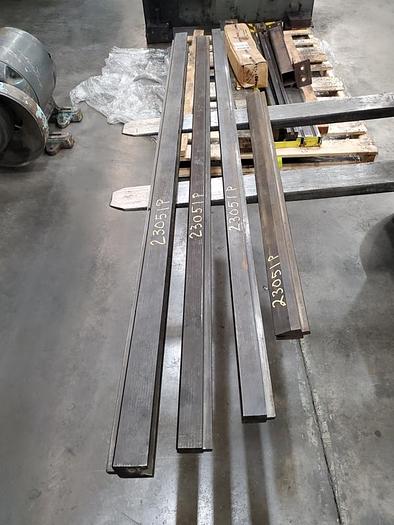

6' X 35 TON DIACRO HYDRAULIC PRESS BRAKE PRICE: Loaded on Truck, Our Warehouse, York, PA …… $8,950.00 HMC Stock # 23051-P Machine Serial No.: JG1228 Machine Model No.: 14-72 Hydra-Power M72 New Date: Unknown Ram and Bed Length: 72" Clear Distance Between Housings: 5' 2" Rated Capacity: 6' x 14 Ga. Mild Steel Ram Stroke: 2" Ram Adjustment: 3" Center of Die to Frame, Throat: 9" Die Space, Stroke Down Adjustment Up: 9" Distance Floor to Machine Bed: 34" Variable Ram Stoke Speeds: 7 to 29 SPM Speed Control Settings: Slow – Fast, Dual EQUIPPED WITH: Dual Speed Operating Cycle with Power Work Stroke 60" Long Back Gauge Bar with Manual Height and In – Out Adjustment Independent Manual Ram Adjustment Each Side with Position Indicator (4) Unisorb Vibration Mounting Pads Mechanical Foot Pedal Operation Control Flush Floor Design (1) Bottom Die Holder 73" Long (2) V Shaped Bottom Dies 73" Long (4) Assorted V Punches (3 are 72" Long) (1 is 40" Long) 3 HP Motor Wired for 3 Phase, 60 Hz, 440 Volt Operation Overall Size: 100" LR x 62" FB x 92" High x 5,500 Lbs.

Specifications

Model14-72 HYDRA POWER M72
ConditionUsed
Stock Number23051
Size035 6' X 14 GA.
