HANSEN OIL CHILLER

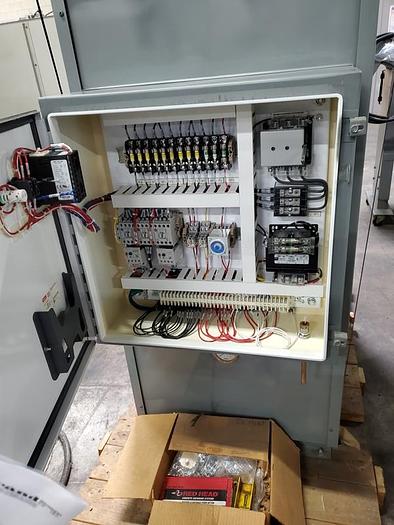

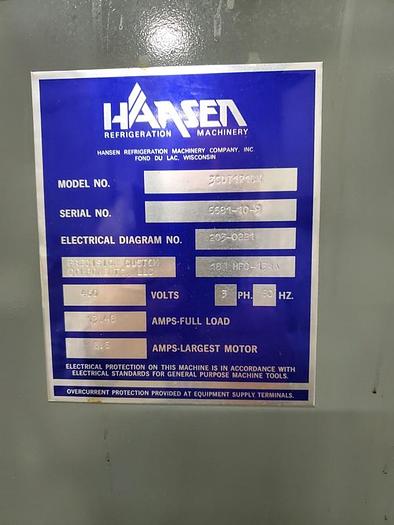

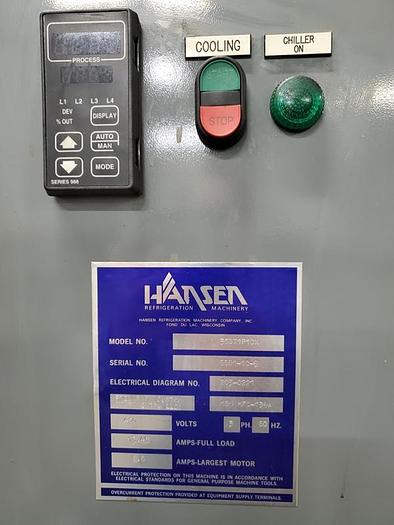

HANSEN OIL CHILLER PRICE: Loaded on Truck, Our Warehouse, York, PA …… $2,500.00 HMC Stock No. 21022 Machine Serial No. 6681-10-9 Machine Model No. 3SDT1P1CX New Date: 2009 / Appears UNUSED The Hansen Model 3SDT1P1CS / Serial No. 6681-10-9 Industrial Chiller, as originally built in 2009 was configured to circulate an ISO-32 Hydrostatic Oil from a customer provided reservoir, through the evaporator on the chiller and return to customer provided reservoir while maintaining the temperature of the reservoir within the range of the plant ambient air temperature. A digital ambient tracker temperature controller was provided as part of the chiller's control package. Refer to the attached Hansen #203-0221 Electrical Control Schematic on the next page for complete chiller operating logic. Not For Chilling Coolant or Water. Primary Voltage: 460V/3Ph/60Hz Control Voltage: 120V/1Ph/60Hz Refrigerant: HFC-134a Full Load Amps: 13.48A @ 460V Condenser Type: Air Cooled Compressor Type: Hermetic Reciprocating Circulation Pump Type: Positive Displacement Gear Pump Electrical Control Logic: Hansen #203-0221 Oil Circuiting Logic: Hansen #700-1556 Capacity: 30,000 BTU/H Fluid to be Cooled: Hydrostatic Oil (ISO-32) Filtered to 10 Micron Level Oil Flow Rate: 9 GPM via Self-Contained Chiller Circulation Pump Oil Pressure: 50 PSI Range Thermostat: Self-Contained Digital Ambient Tracking Ambient Temperature Range: 70 to 90 Degrees F Oil Control Temperature Range: 70 to 90 Degrees F Compressor Crank Case Heater ½ HP Pump Motor 5 HP Compressor Motor ½ HP Fan Motor Overall Size on Skid: 75" Long x 39" Wide x 72" High Overall Size Off he Skid: 56" Long x 27-1/2" Wide x 56" High
