BARNES / HENRY SUPER-VAC COOLANT SYSTEM

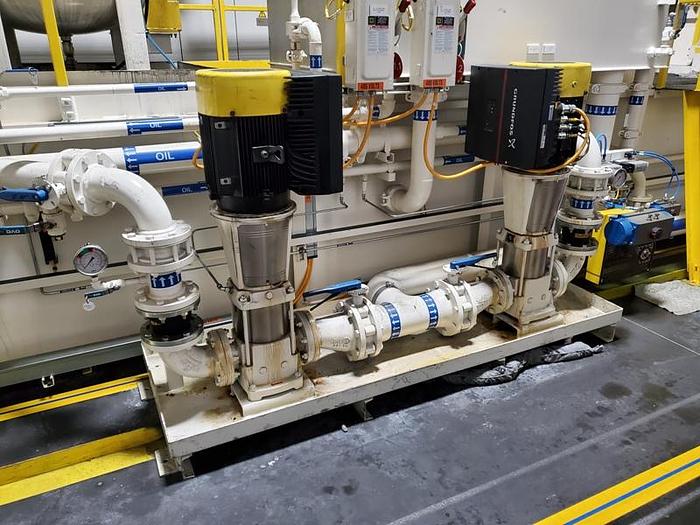

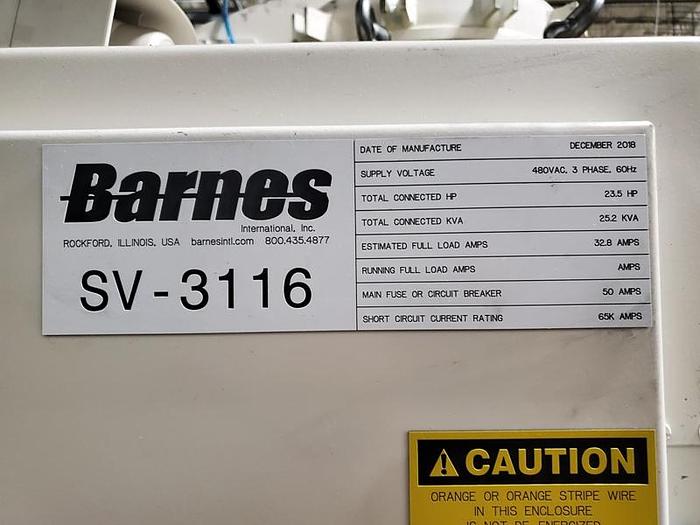

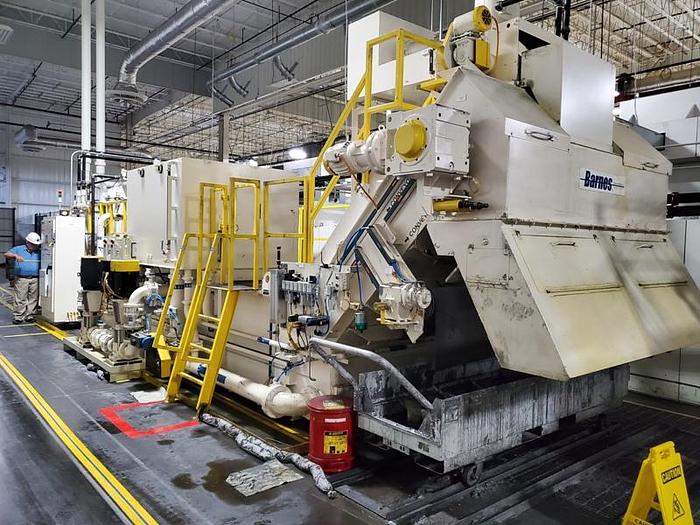

BARNES / HENRY SUPER-VAC COOLANT SYSTEM PRICE: Loaded on Truck, Our Warehouse, York, PA … $129,500.00 HMC Stock # 23138-P Machine Serial No.: JF7815 Machine Model No.: SV-3116 New Date: December 2018 GENERAL DESCRIPTION: The original application of the system was service (2) Gehring Hones for cast iron engine blocks. Coolant used was straight OIL. Total Available Flow to Machines: 212 GPM Total Filtration Rate: 242 GPM PRIMARY COMPONENTS: Primary Filter: Model SV8-166 Vacuum Filter Type: Disposable Roll Media Vacuum Filter Filter Area: 166 Sq/Ft Overall Filter Footprint: 15' Wide x 38' 7" Long Filter Tank: 7' 10" Inside Width x 3' 6" Side Height, 5060 Gallons Index Tank Capacity: 785 Gallons for 3.25 Minutes Media Roll: 93" x 250' Barnes Magnetic Coolant Pre-Separator Dirty oil will be passed over the separator and a good portion of the ferrous particulate will be separated prior to the coolant entering the filter tank. Grundfos CR64 Series Filter Pump 20 HP Motor, 3450 RPM Wired for 3 Phase, 60 Hz, 460 Volts Liquid Level Monitoring Efector Level Tank Level Probe in Tank to Monitor Coolant Levels. (high/makeup/low) Secondary Bag Filter System: Duplex Bag Filter System: (1) Operating & (1) on Standby Each Vessel with (8) Pleated Elements Each Element is 25 Sq/Ft Area x 8 Elements Equals 200 Sq/Ft at 1.06 GPM/Sq Ft Temperature Control System: Plate & Frame Heat Exchanger Rated at 180,000 BTU/Hr (15 Tons) Temperature Control: 75°F Using 50°F Plant Chilled Water Electrical Controls: Hoffman NEMA 12 Main Enclosure 24 VDC Control Circuit Red-Yellow-Green Light and Alarm Monitor Siemens SIMATIC S7-1200 PLC Siemens TP600 Touch Screen Hirshman Ethernet Switch Overall Size For Trucking: Main Unit with some parts removed: 39' (466") Long x 135" (11' 3") Wide x 11' (132") High x 36,200 Lbs. Removed Items: (1) Skid with Top Reservoir and piping: 49" x 48" x 31" High x 480 Lbs. Rosedale Filter tank system 126" Long x 40" x 74" High x 2080 Lbs. Pan with (2) Pumps: 103" Long x 32" Wide x 55" High x 2015 Lbs.. Note: Barnes International is Available for "Factory Rebuilt Services" to Tweak the Filter for Your Specific Application. SEE MORE INFORAMTION and DRAWINGS on our website at: https://www.hildebrandmachinery.com/23138-moreinformation.pdf
