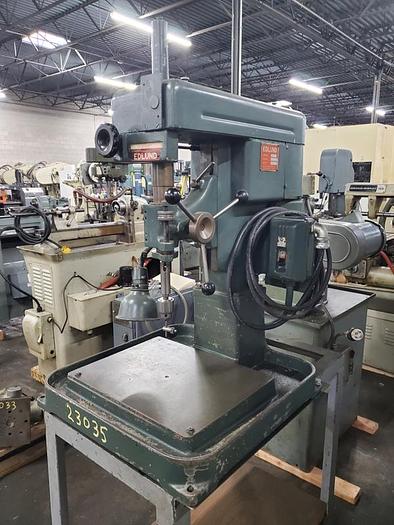

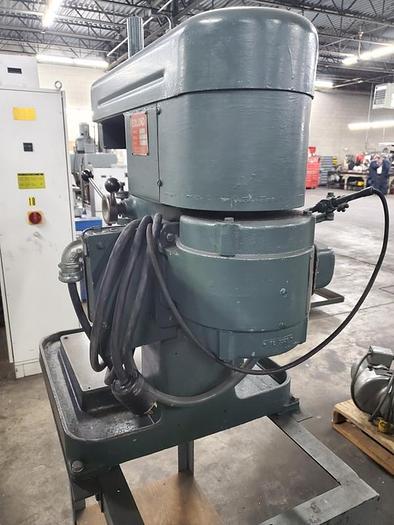

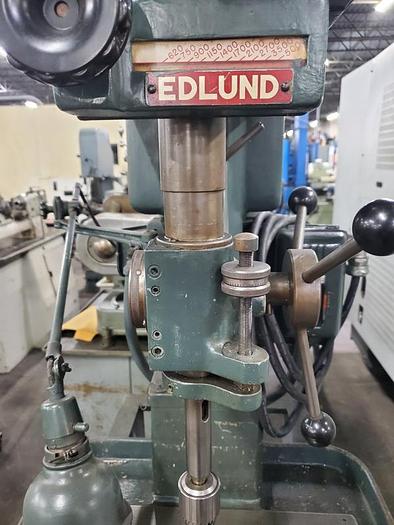

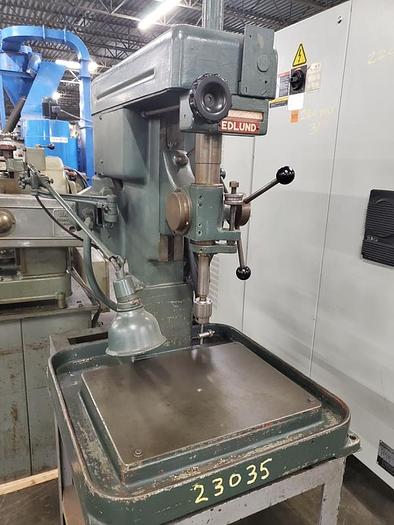

EDLUND SINGLE SPINDLE BENCH MODEL DRILL

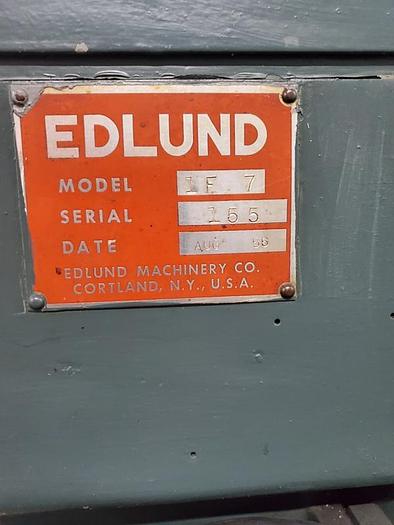

EDLUND SINGLE SPINDLE BENCH MODEL DRILL PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $695.00 HMC Stock # 23035 Machine Serial No.: 155 Machine Model No.: 1F7 New Date: August 1956 Table Work Area Size: 18" LR x 14" FB Table Overall Size with Coolant Trough: 22-3/4" LR x 23" FB Spindle Taper: #2 Morse Quill Travel: 5" Centerline of Spindle to Frame: 8" Spindle Speeds: Variable 620 to 5000 RPM Via Hand Crank Knob Approx. Maximum Distance Spindle Nose to Table: 10-1/4" EQUIPPED WITH: Machine Work Light Adjustable Quill Depth Stop (1) Jacobs Key Type Drill Chuck 0 - 3/8" with #2 Morse Taper and Key Bolted to 35" High Angle Iron Stand Vertical Adjustment of Spindle Bracket Carrier 1 HP Motor, 1730 RPM Wired for 3 Phase, 60 Hz, 220 / 440 Volt Operation Overall Size: Machine 23" LR x 33" FB x 36" High x ? Lbs. Stand 23" LR x 35" FB x 35" High x ? Lbs.
