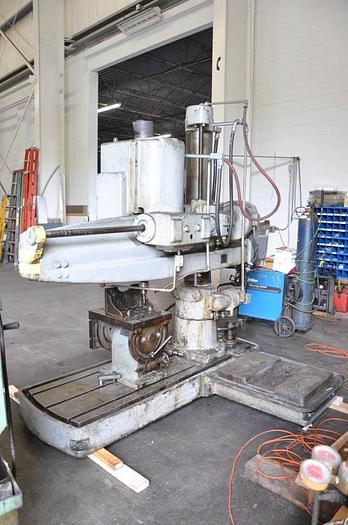

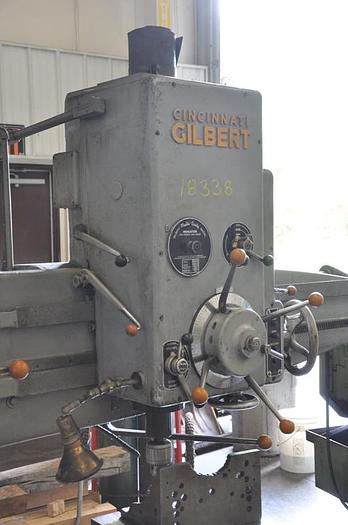

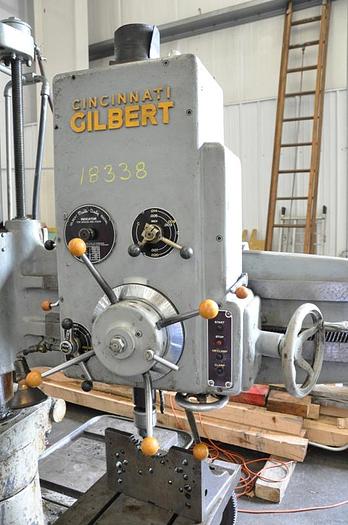

CINCINNATI GILBERT RADIAL ARM DRILL

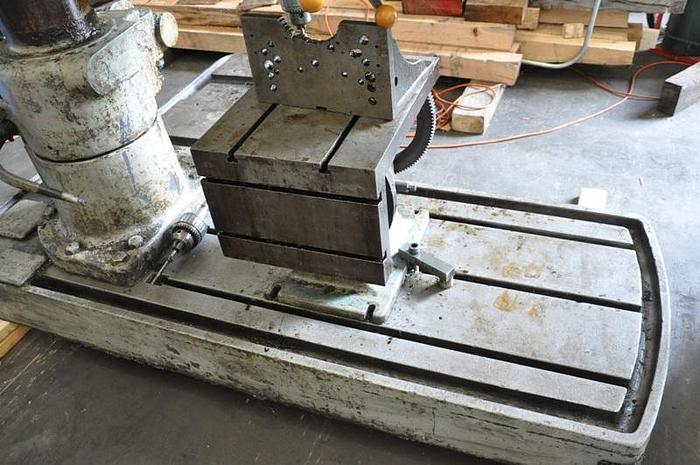

4' X 9" CINCINNATI GILBERT RADIAL ARM DRILL PRICE: Loaded on Truck, Our Warehouse, York, PA …… $1,500.00 AS IS HMC Stock No. 18338 Machine Serial No. 6040 Machine Model No. 3B / Lot No. 88 New Date: 1954 Working Surface of Base: 54" x 30" with (3) 15/16" T-Slots Maximum Distance Spindle to Base: 52" Minimum Distance Spindle to Base: 25" (12) Spindle Speeds: 33 to 1200 RPM Spindle Taper: #4 Morse Spindle Travel: 11-1/2" (6) Spindle Feeds: .003 to .020 TPR Manual Clamping to Head and Arm EQUIPPED WITH: 5 HP Spindle Drive Motor, Wired 3 Phase, 60 Hz, 230-460 Volts Plain Box Table Power Arm Elevation Power Arm Rotation Clamp Machine Work Light Adjustable Quill Depth Stop with Feed Kick Out Removable L Base Section: 30" x 34" Friction Clutch of Spindle (1) 3/8-1" Jacobs Drill Chuck with Key (1) 1/8-3/4" Jacobs Drill Chuck with Key Coolant Pump and Piping Tilting Box Table: Top: 16" x 19-1/2" with (2) T-Slots Face: 16" x 12" with (2) T-Slots Machine Size: 85" LR x 31" FB without L Base x 94" H on 3-1/2" Blocks 65" FB with L Base Machine Weight: 7,600 Lbs.
