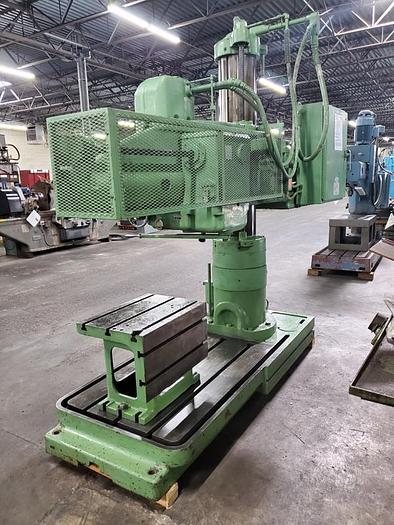

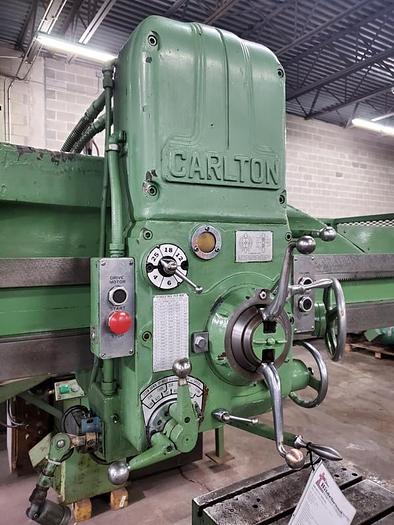

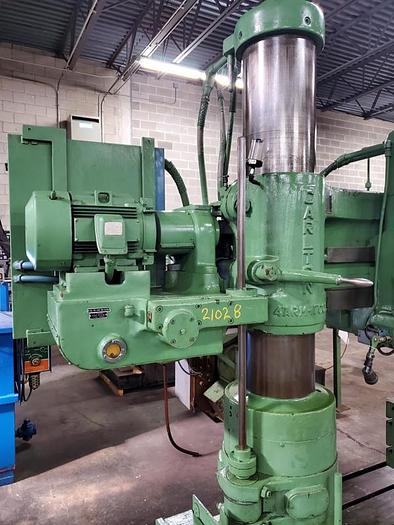

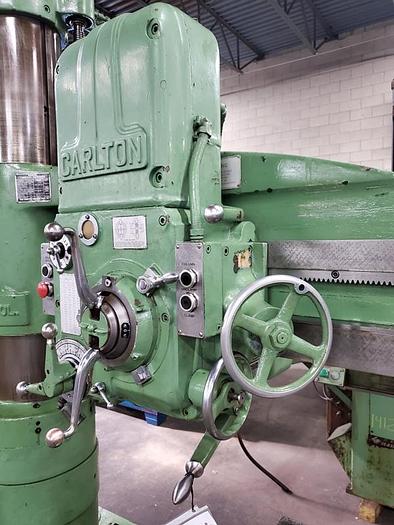

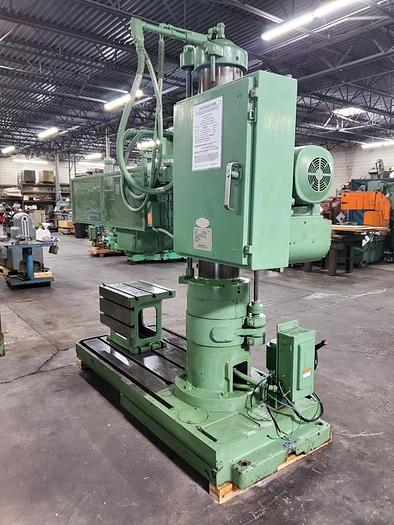

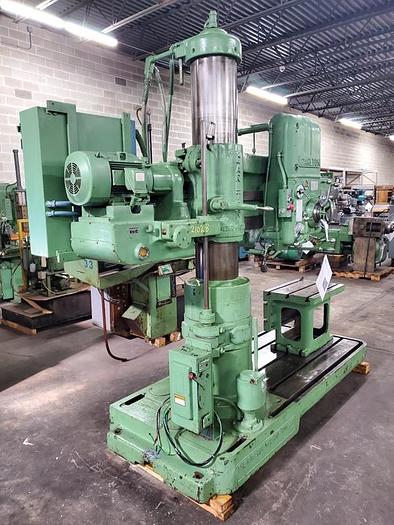

CARLTON RADIAL DRILL

CARLTON 4' X 11" RADIAL DRILL PRICE: Loaded on Truck, Our Warehouse, York, PA …… $14,500.00 HMC Stock # 21028 Machine Serial No.: 1A-4370T Machine Model No.: 1A New Date: 1981 Arm Length: 4' Column Diameter: 11" Face of Column to Center of Spindle: 9" Min. to 48" Max. Spindle to Base: 14-3/4" to 4' 7" Working Surface of Base: 3' x 5 '6" Vertical Travel of Spindle in Head: 12" Quill Diameter: 2-1/2" Quill Travel: 12" (6) Quill Feeds: .004,.006,.008, .012, .018, .025 IPR Taper In Spindle: #4 Morse (12) Spindle Speeds: 80 to 2000 RPM Drilling Capacities: 2" Mild Steel, 2-1/4" Cast Iron Traverse of Arm on Column: 28-1/2" Traverse of Head on Arm: 39" Drills to Center of a 8' Circle Main Base Size: 36" x 54" x 8" Thick with (3) T Slots EQUIPPED WITH: Power Elevation of Arm on Column Rapid Traverse of Head on Arm Power Clamping of Column and Arm Manual Clamping of Head on Arm Arm Has Replaceable Wear Strips for Head Machine Work Light Friction Clutch for Forward and Reverse Engagement 11-3/4" Rise Block Under Column is Removeable Designed for Bolt-On L Base Section – NOT Supplied Adjustable Quill Depth Stop Plain Box Table Size: Top 18" x 24" x 20" High, Face 24" x 14" Tapping Lead are Same as Feed Rates OEM Parts / Operation Manual and Foundation Print & Electrical Schematic 1/4 HP Coolant Pump Motor with Piping, 3 Phase, 230/460 Volts 1 HP Arm Elevation Motor 1/2 HP Column Clamping Motor 10 HP Main Motor Wired for 3 Phase, 60 Hz, 230/460 Volts Overall Size: 108" LR x 46" FB x 108" High (on 3" block) x 9,750 Lbs.
