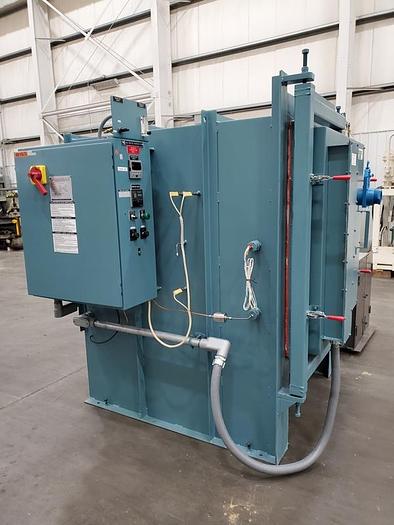

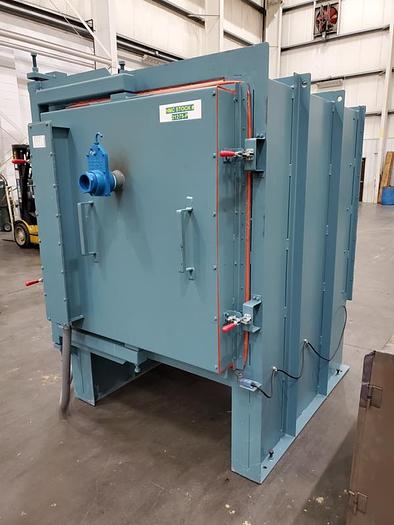

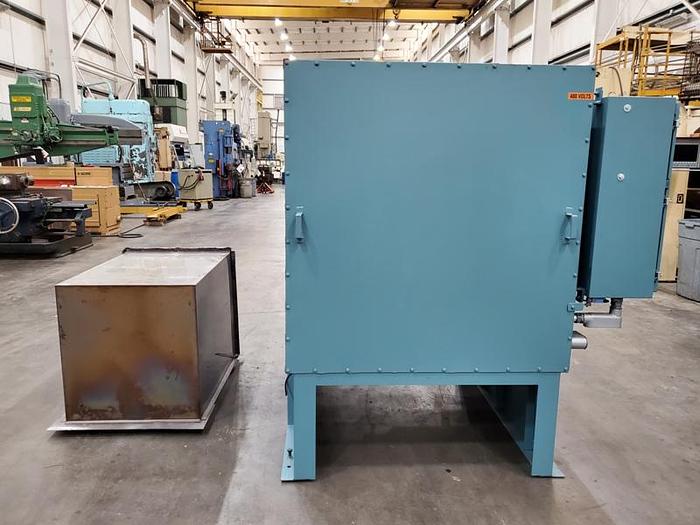

L & L SPECIAL FURNACE CO ELECTRIC FURNACE

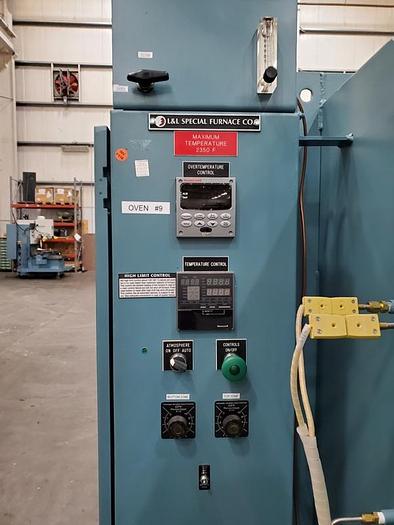

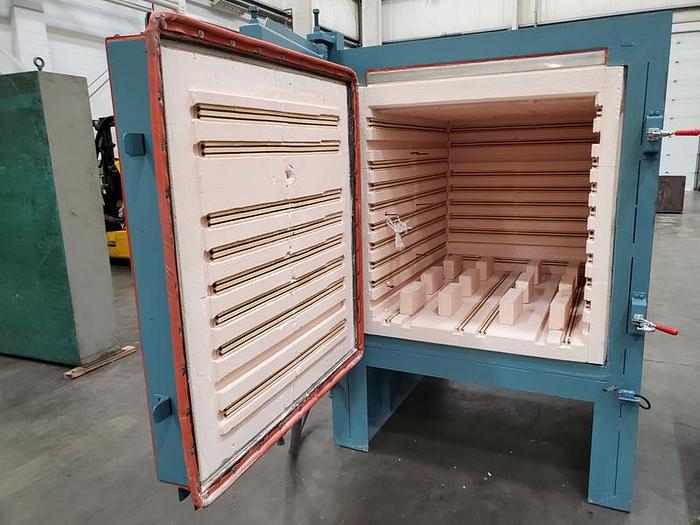

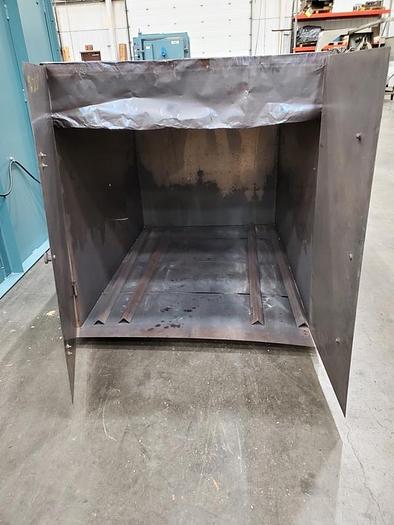

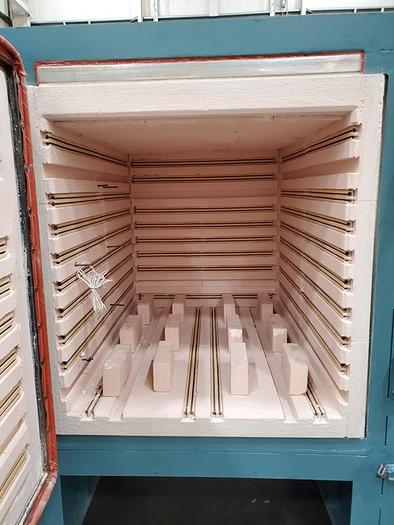

L&L SPECIAL FURNACE CO. ELECTRIC FURNACE PRICE: Loaded on Truck, Our Warehouse, York, PA ……… $42,500.00 HMC Stock # 21275-P Machine Serial No.: B508LL-B Machine Model No.: XLE-3648-FE02-01-G784-480R3K-B08 New Date: 2005 Rated Chamber Size: 36" x 48" Actual Chamber Size: 36-3/4" x 38" High x 49-1/2" Deep Maximum Temperature: 2350 Degrees F Hearth Weight Capacity: 900 Lbs. Maximum Coil Type Electric Heating Elements on All Sides Except the Ceiling Atmosphere System for Nitrogen Air Inert Machine Style: B Top Section KW: 51.0 Full Load Amperes: 63 Drawing No.: FE02-01 Elements Type: KAN EQUIPPED WITH: Honeywell Digital Oven Temperature Controller Honeywell Digital Oven Over Temperature Controller Controls For: Atmosphere: On – Off Main Controls: On - Off Infinitely Variable Temperature Controller for Bottom Zone Infinitely Variable Temperature Controller for Top Zone Selector Switch for Top or Bottom Zone Atmosphere Process Gas Valve Process Gas Flow Meter High Limit Temperature Controller (12) 4" x 9" Fire Bricks (they are not secured to the oven floor) Outside Floor to Bottom of Furnace Floor: 29-3/4" Furnace Chamber and Elements are in EXCELLENT Condition Removeable Custom Made Metal Chamber Insert Wired for 3 Phase, 60 Hz, 480 Volts Only Overall Size: 71" LR x 77" FB x 86" High x 4,000 Lbs.
