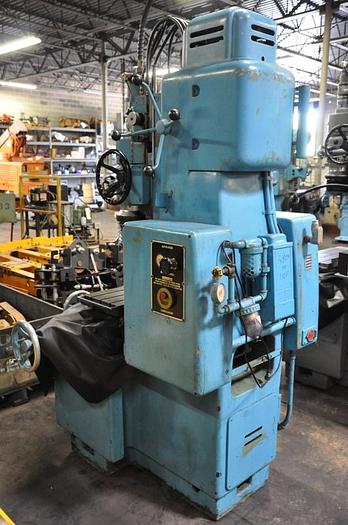

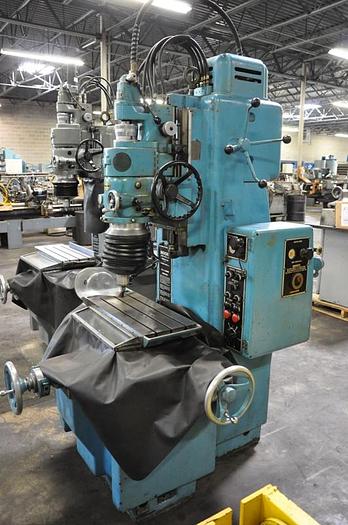

MOORE JIG GRINDER

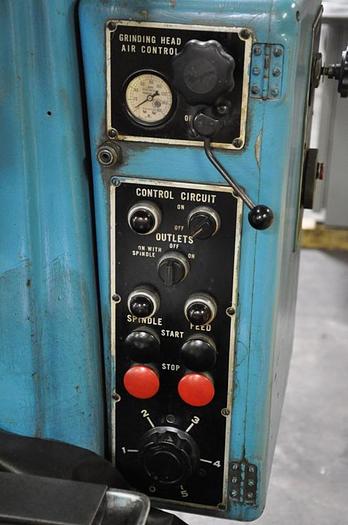

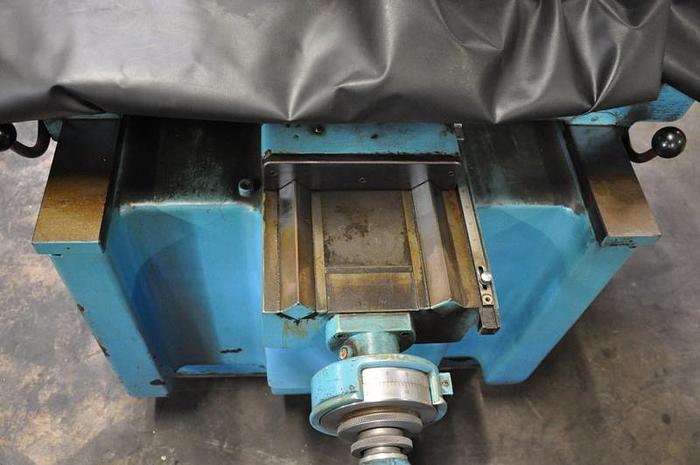

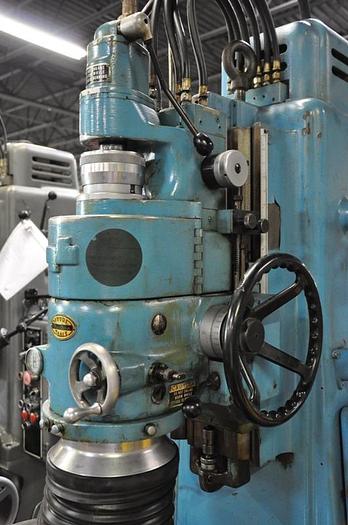

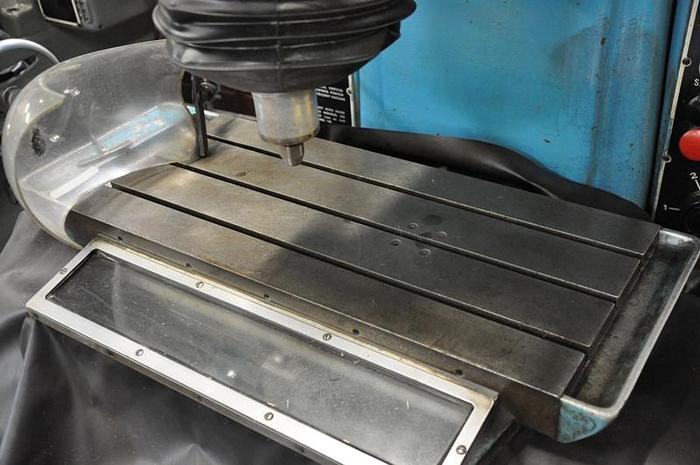

#3 MOORE JIG GRINDER PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $7,950.00 Stock # 15053-P Serial # G229 Model # 3 New Date: 1960 Table Size: 11" x 24" Longitudinal Table Travel: 18" Cross Table Travel: 11" Spindle Head Vertical Travel: 12-5/8" (Manual) Spindle Travel: 3-5/8" (Power) Distance Table to Spindle: 2" Min. to 18" Max. Center of Spindle Back to Column Ways: 10" Center of Spindle Back to Below Column Ways: 13-1/2" Variable Spindle Rotation Speeds: 25 to 225 RPM Variable Spindle Feeds: 2 to 120 SPM Range of Hole Sizes That Can Be Ground: 1/64" to 3-1/2" Dia. Max. Dia. of Hole Ground with Extension Plate: 13-1/2" (NOT SUPPLIED) EQUIPPED WITH: (1) Grinding Head, Speed Rate Unknown (1) Machine Work Light Nylon Way Cover All Around Table Hard Square Box Style Ways in Good Condition Manually Adjustable Grinding Head Spindle Temperature Gage Micrometer Adjustable Head Carrier Stop Adjustable Air Control of Grinding Head (5) Grinding Head Rotation Speeds, Rate Unknown Adjustable Auto Feed Air Controller Central Lubrication System Air Regulator with Filter Bowl One Shot Lubrication System to Table Adjustable Plastic Grinding Shield Guard Wired for 3 Phase, 60 Hz, 440 Volts ONLY Overall Size: 49" L-R x 61" F-B x 86" High x 4,000 Lbs.
