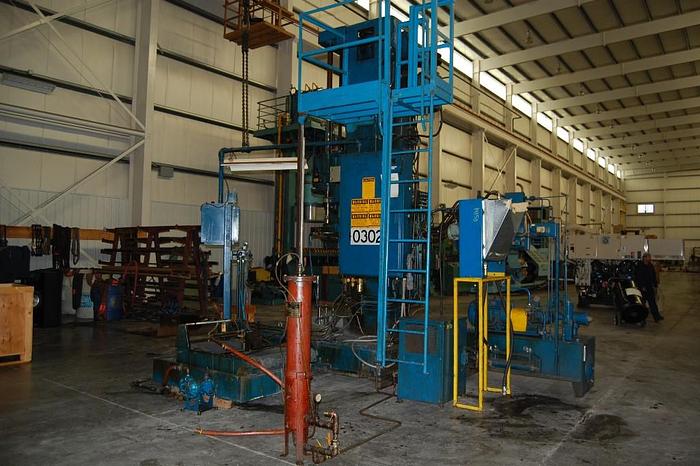

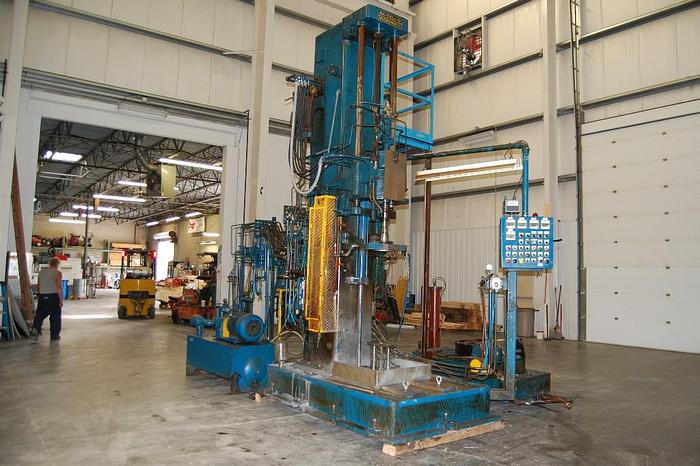

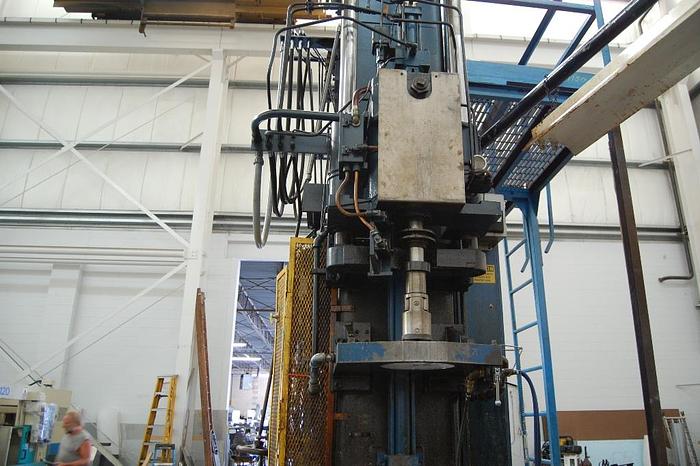

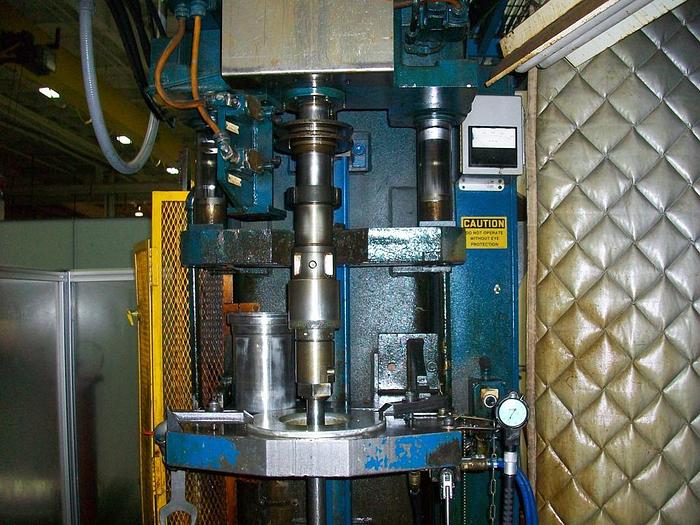

EXCELLO MICROMATIC VERTICAL HONE

EXCELLO MICROMATIC VERTICAL HONE PRICE: Loaded on Truck, Our Warehouse, York, PA …… $39,500.00 Stock# 14150 Serial # H7745 New 1981 Model: 10VH-36 Rated Diameter Capacity: Up to 5" (Larger with Special Tooling) Diameter Capacity Can Be Extended to 10" if Bore Lengths and Feed Rates are Reduced Proportionately. Rebuilt in 1981 by Kenrie Incorporated, www.kenrie.com For Parts and Service Contact Kenrie Incorporated Spindle to Column Clearance: 14" Base Height: 13-3/4" Hydraulic Oil Capacity: 100 Gallons Bore Length: Up to 31" (Plain Open End Bore) Maximum Spindle Stroke: 36" EQUIPPED WITH: Service Parts and Operation Manuals Auto Cycle Operation Gauging System (May Not be Complete) NO Work Table Quick Change Hone Drive Head Coolant Pump in Machine Base Trabon Central Lubrication System Frostrode Oil Cooler Unit Modine Radiator Type Heat Exchanger Spindle Speed Meter Reads: 0 to 400 RPM (May Not Be Actual Speed Range) Spindle Jog 15 HP Hydraulic System with Tank Delpark Paper Type Coolant Filter System (No Paper) Sandpiper Air Diaphragm Type Coolant Pump (2) Large Wood Crates of Assorted Tooling and Miscellaneous 10 HP Spindle Motor 3/4 HP Approx. Coolant Pump Motor 3 HP Frostrode Motor 2 HP Approx. Filter System Motor   Over Size of Components for Trucking: Machine: 74" L-R x 122" F-B x 177" High x 12,500 Lbs. Delpark Filter: 38" x 76" x 26" High x ? Lbs. Frostrode Unit: 25" x 24" x 35" High x ? Lbs. Modine Heat Exchanger on Stand: 36" x 22" x 89" High x ? Lbs. Hydraulic System: 85" x 40" x 88" High x ? Lbs. Ladder with Platform: 74" x 40" x 156" High x ? Lbs. Wood Crate 1: 29" x 75" x 41" High x ? Lbs. Wood Crate 2: 29" x 75" x 41" High x ? Lbs.
