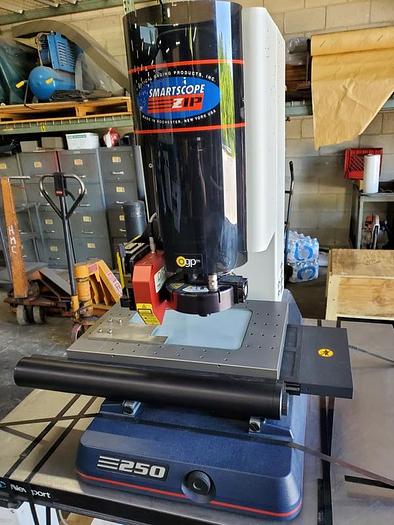

OGP SMART SCOPE OPTICAL GAGING SYSTEM

OGP SMART SCOPE OPTICAL GAGING SYSTEM PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $3,950.00 HMC Stock # 22155 Machine Serial No.: SK2251674 Machine Model No.: Smart Scope 225 Zip New Date: 12-1999 Stage Unit Dimensions: 29" x 21" x 32" Stage Travel: 10" x 6" x 6" XYZ Scale Resolution: 0.000002" Motion Controls: DC Servo Motor Drives 4 Axis (X,Y,Z Zoom) Variable Speed Joystick Standard Trackball Optional Stage: Hardcoat Anodized Aluminum with Fixturing Holes and 55 Lb. Load Capacity Optical: AccuCentric Auto-Calibrating Zoom Lens with 40x-200x On-Screen Magnification 2.0x Lens Attachment Standard 0.5x, 0.75x and 1.5x Lens Attachments Optional 0.67x and 2.0x Extension Tubes Optional Illumination: 12 v 100 W Backlight 12 v 100 W Fiber Optic Ring Light 12 v 100 W Coaxial Surface Illuminator Standard SmartRing Lights, Grid Projector Autofocus and Polarizer Optional Electrical: 115 vac ± 5%, 50/60 Hz, Wired for 110 Volts Single Phase, 7.5 Amps, 900 Watts Video System: 1/2" Format Digitally Processed Color CCD Camera with 768 x 494 Pixel Array 3 Lux Sensitivity Image Processing: 256 Level Gray Scale Processing with 10:1 Sub-Pixel Resolution Tools Provided for Arc, Circle, Line, Point, Maximum Point, Minimum Point, Line Trace and Autofocus Environmental: 18-23° C (65-75° F), 30-80% Relative Humidity (Non-Condensing) Temperature Change Less than 1° C (2° F) Per Hour, Max. Vibration 0.005 g Below 10 Hz EQUIPPED WITH: Newport Optical Air Table 30" x 36" with Model ACGP Air Compressor and Regulator PC Computer with CD Drive, 3-1/2" Floppy Drive, (3) USB Ports, RJ45 Port, (3) LPT Ports Intel Core 2 CPU, 6300@1.86 GHZ, 0.97 GB Ram Software Key System (USB Plugin) 3 Axis Joystick Smart Scope Controller Smart Scope Control Unit Ports For: Joystick, Parallel Ports, Camera Out, Control Panel Heavy Steel Metal Frame Under Newport Table with (4) Casters Included Software: OGP Smart Report Rev 1.60.5 OEM Manual QVI Smart Report Plus Reference Guide Manual (1) Windows 95 Startup Disk Upgraded to Windows XP Pro (1) OGP Alignment Reticle, Part No. 623970 (1) Lifting Tools and Instruction Kit (1) Set of Keys for Scope Back Panel (1) Navitar 2X Lense, #1-60113 (1) Navitar 0.5X Lense, #1-60110 (9) New X000H1CG23, JC 12V G4 20W Halogen Light Bulbs by CBconcept.com (1) QVI Alignment Target Tool, Part No. 526685 Prolink Inc QC-CALC for Windows 95/NT, 32 Bit, Ver 2.00, Software (5) Disks OGP Smart Report for Windows 95/NT, Ver 1.60, Software (5) Disks and OEM Manual OGP MeasureMind+ Software, Rev: 10.53 and 10.55, (4) Disks For: Measure Mind CNC Software Includes: 3-D Edge Finder, Productivity Automation Pkg, Video Toolbox, Weak Edge Point (1) CD For OGP Smart Report Software, Ver 2.2.17 with CD Key Programs Installed in Computer: Mastermind 3D Multi Sensor Smart Report Plus True Map Overall Size of All Items on Skid: 48" LR x 32" FB x 67" High x 650 Lbs. All Items Need to Be Repackaged for Proper Shipping. Metal Push Cart Seen in the Pictures is NOT INCLUDED in the Sale or Part of the Machine.
