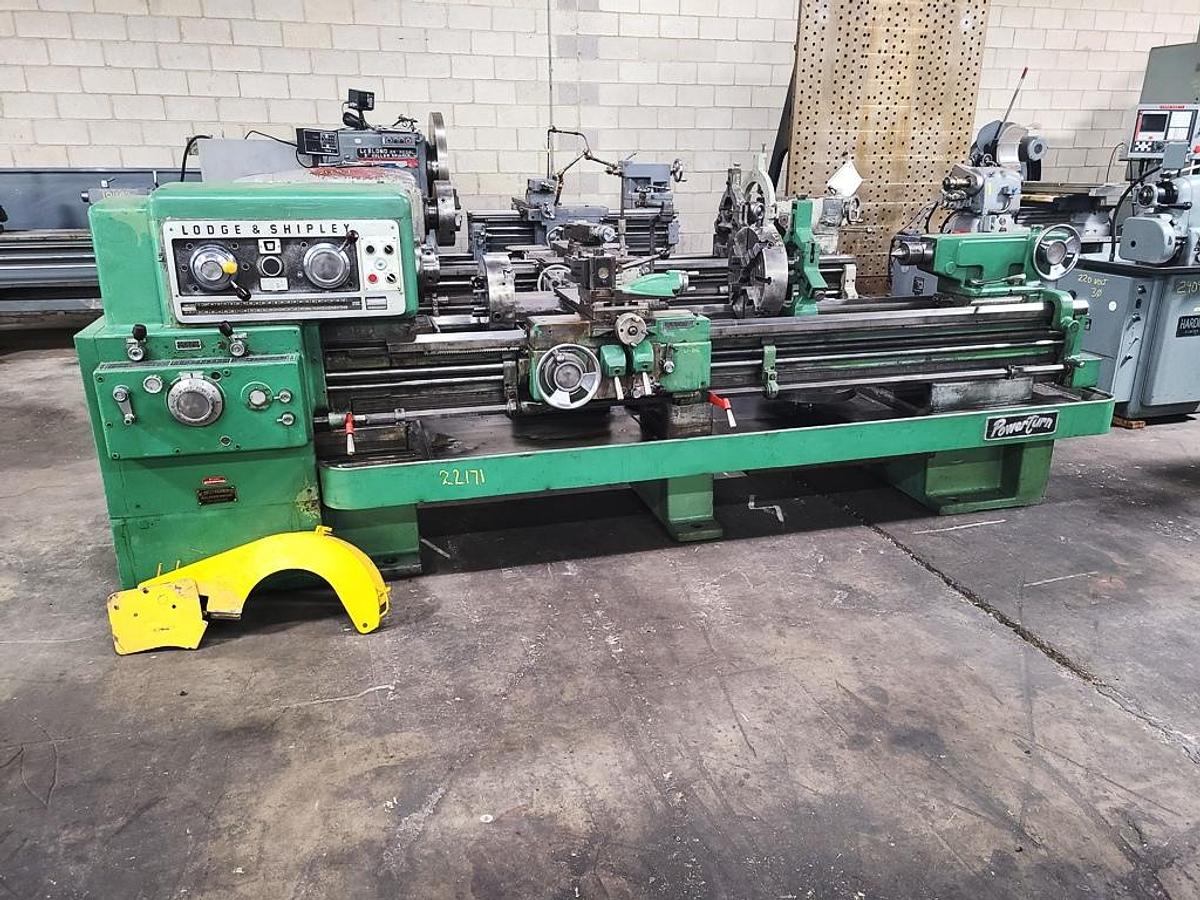

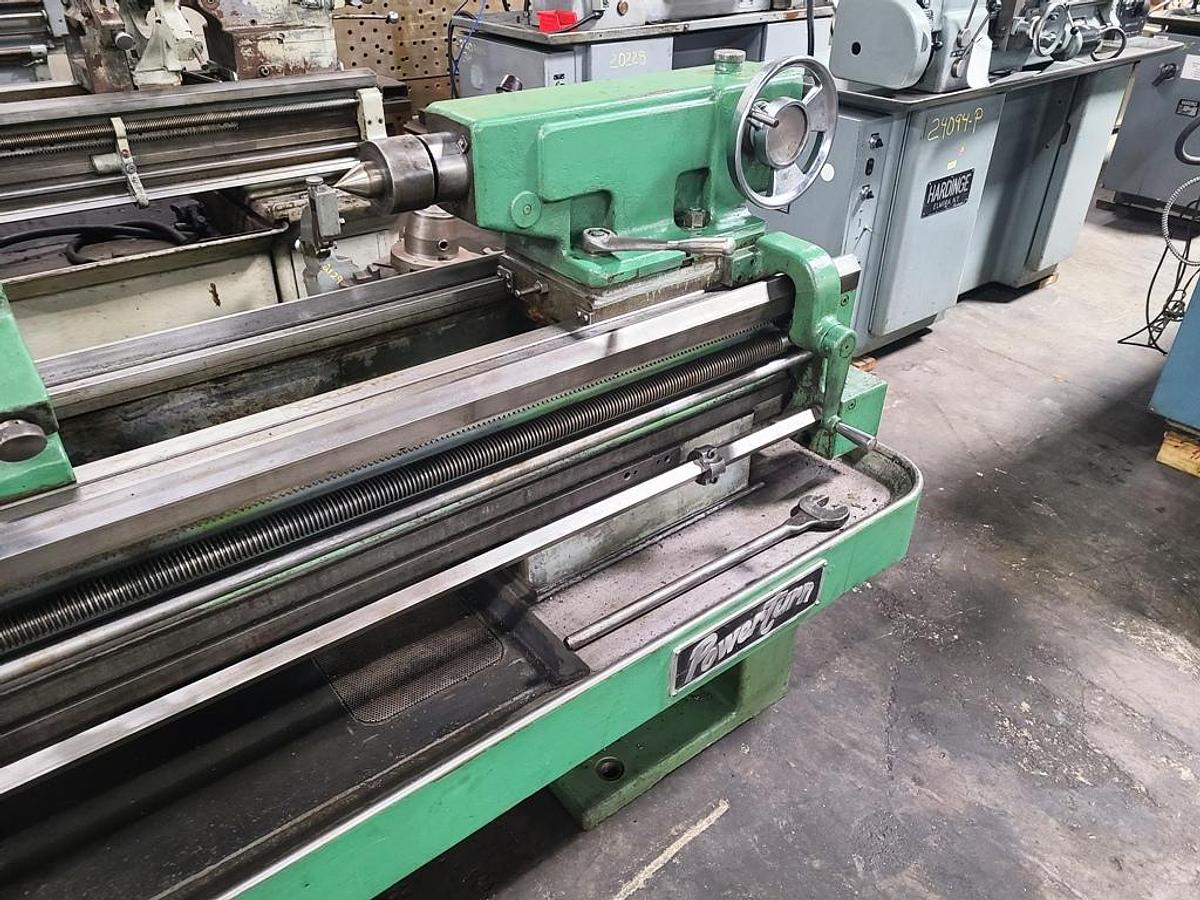

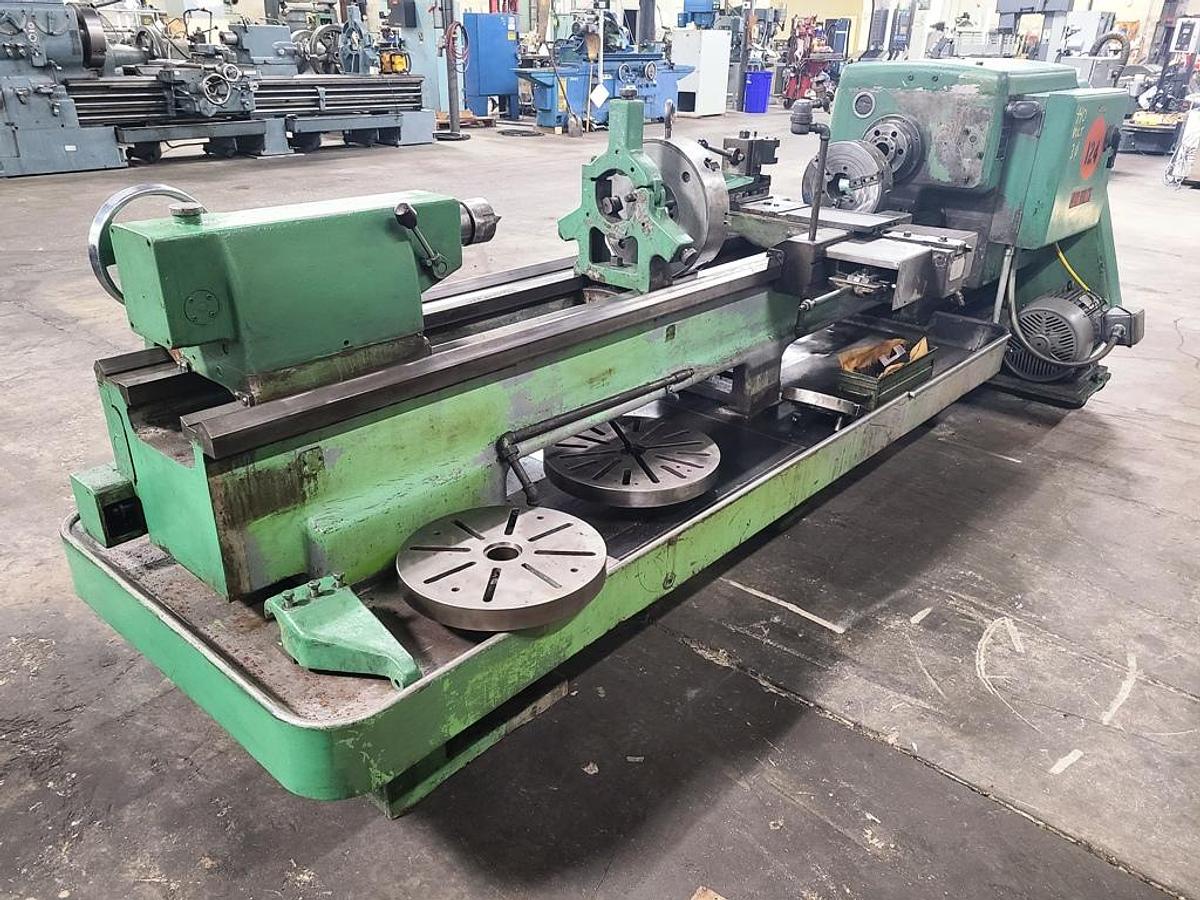

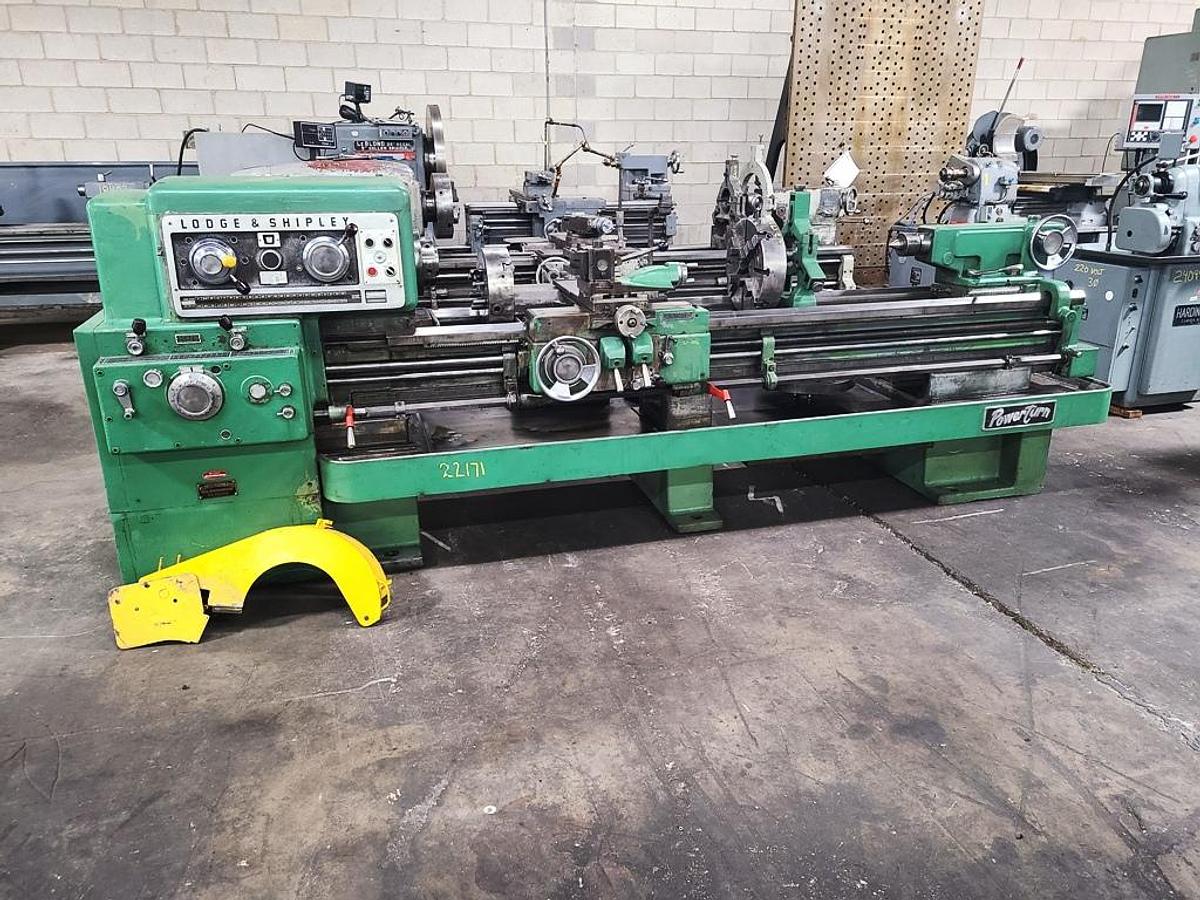

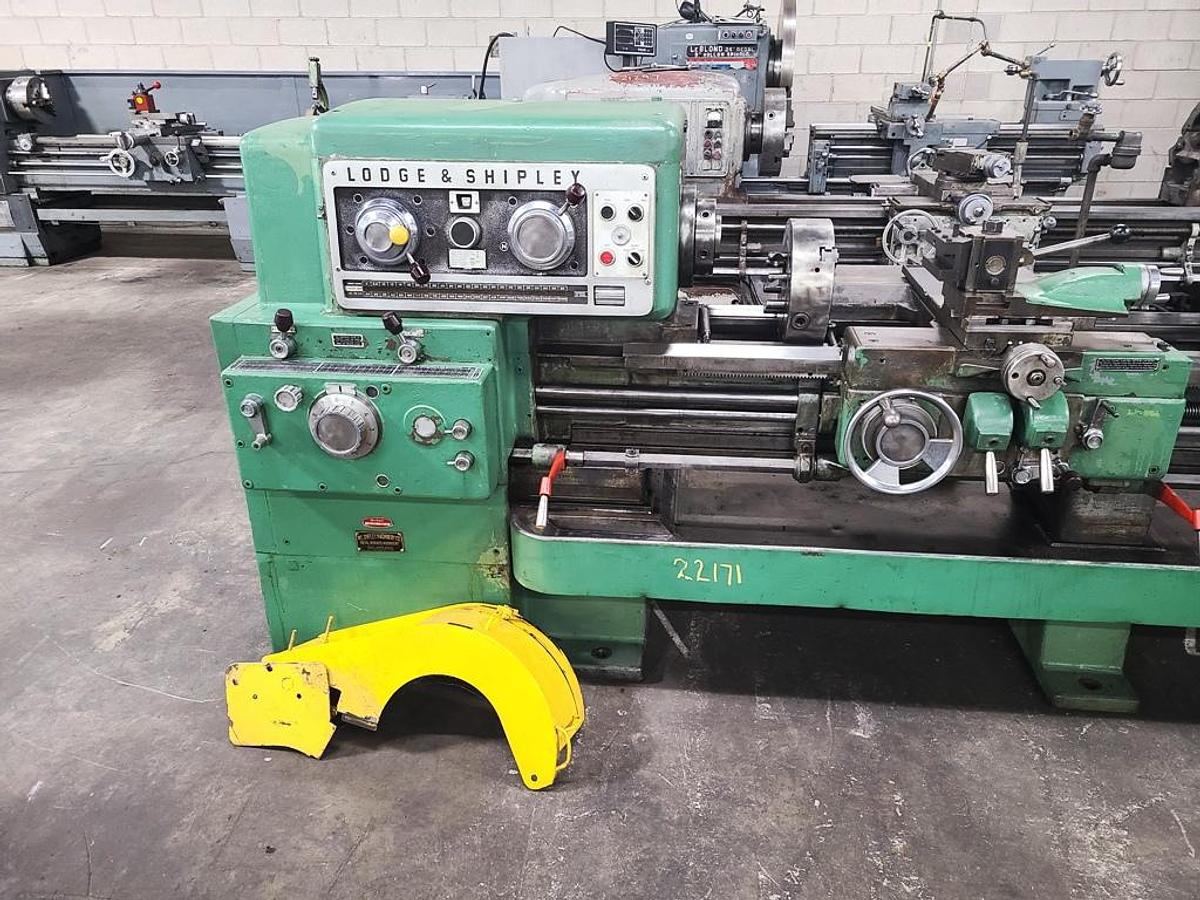

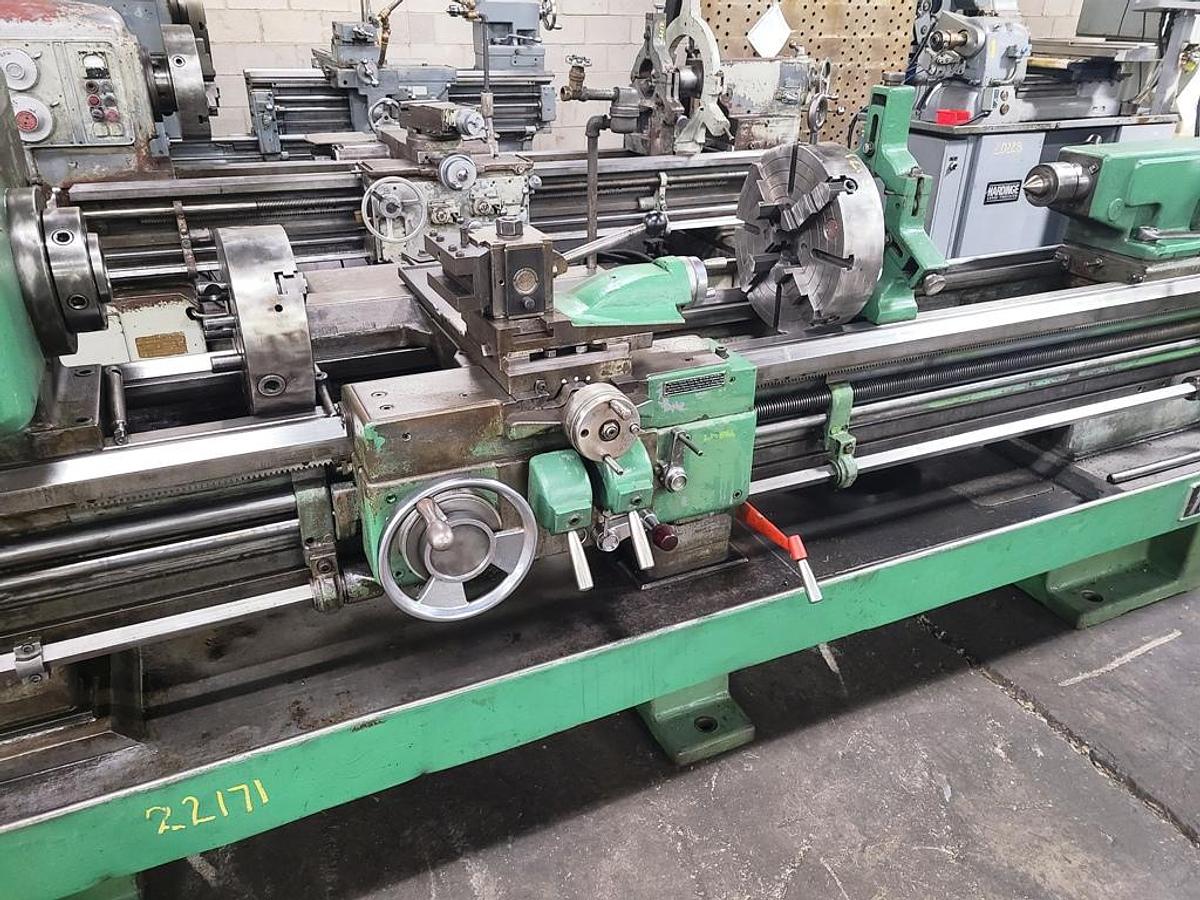

LODGE & SHIPLEY POWER-TURN ENGINE LATHE

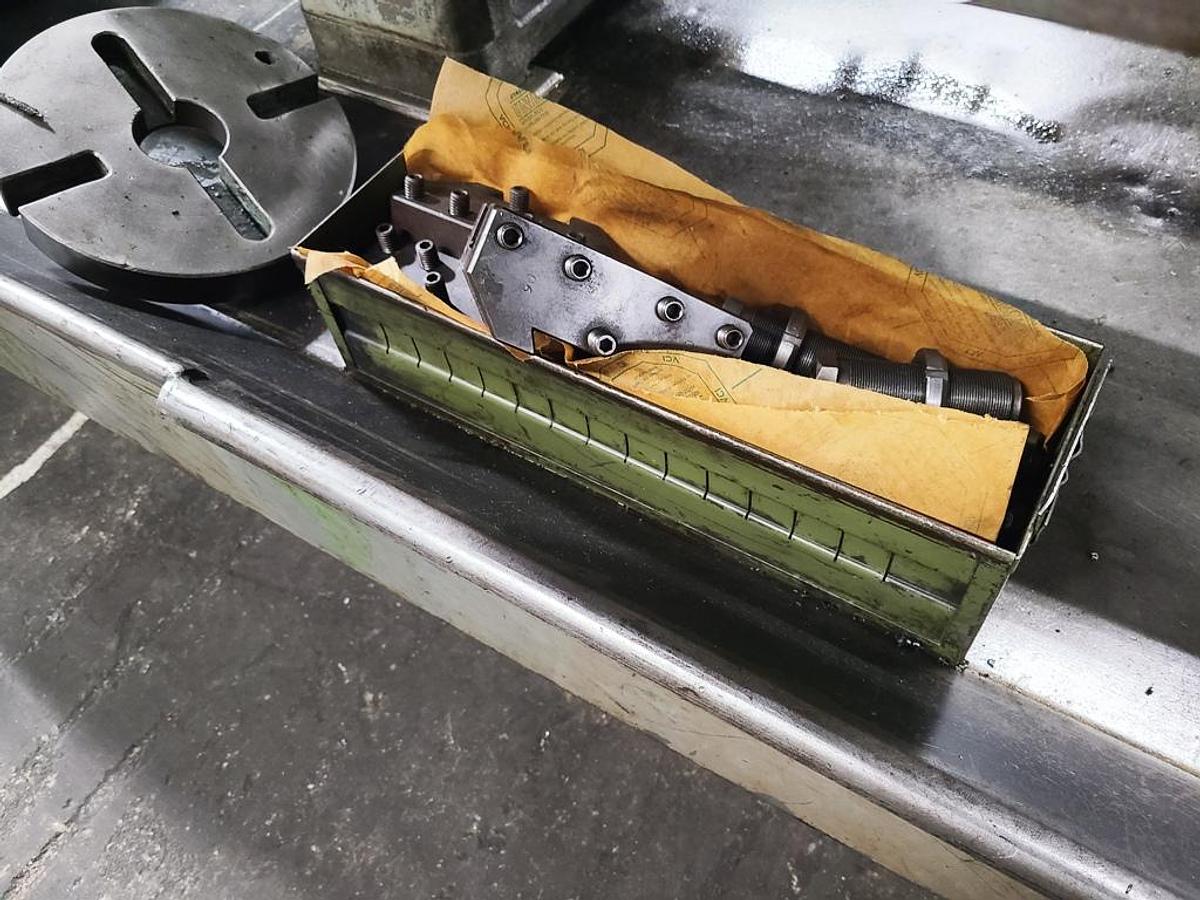

LODGE & SHIPLEY 18" x 78" POWERTURN LATHE PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $12,500.00 HMC Stock # 22171 Machine Serial No.: 48442 Machine Model No.: 1610 New Date: Jan. 1970 Swing Over Bed Ways: 18" Swing Over Cross Slide: 10" Center Distance: 78" Spindle Hole: 1-3/4" Spindle Speeds: 24 to 2,000 RPM Spindle Nose: D6 Camlock Feeds Cross: .0039 to .0312 TPR Feeds Longitudinal: .0312 to .469 IPR Threads Inch: 4 to 256 TPI Threads Metric: None Tail Stock Quill Diameter: 2-5/8" Tail Stock Quill Travel: 8" Tail Stock Taper: #4 Morse EQUIPPED WITH: (1) 12" 3 Jaw Chuck, Master Jaws BUT NO Top Jaws, D6 Camlock Mount (1) 15" 4 Jaw Chuck with 1 Piece Hard Reversible Jaws, D6 Camlock Mount (1) 16" and (1) 18" Face Plates with D6 Camlock Mounts (1) 10" Drive Plate with D6 Camlock Mount (1) 5-1/4" Roller Type Steady Rest (1) 14" Roller Type Steady Rest NEW Top compound Screw Coolant Pan Taper Attachment Thread Chasing Dial Hardened and Ground Bed Way Quick Change Tool Post with Assorted Holders Machine Leveling Screws 15 HP Motor Wired for 3 Phase, 60 Hz, 230 / 460 Volts Presently Wired for 440 Volt Operation Overall Dimensions: 157" Long x 52" Wide x 71" High x 8,500 Lbs.
