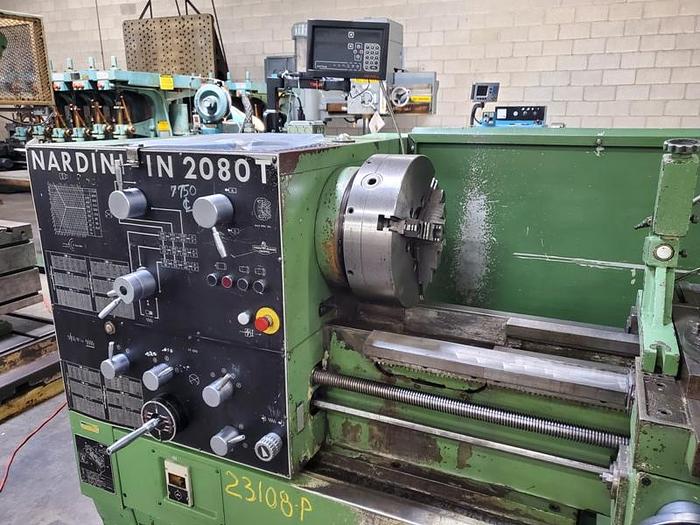

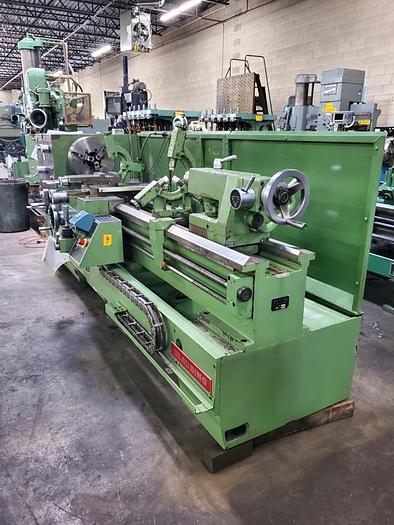

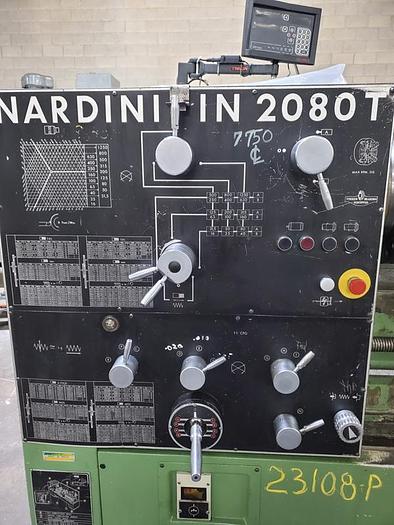

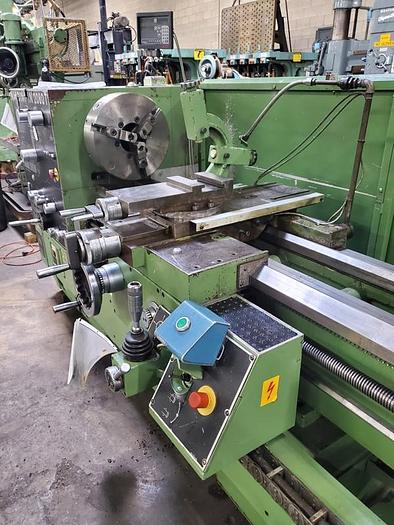

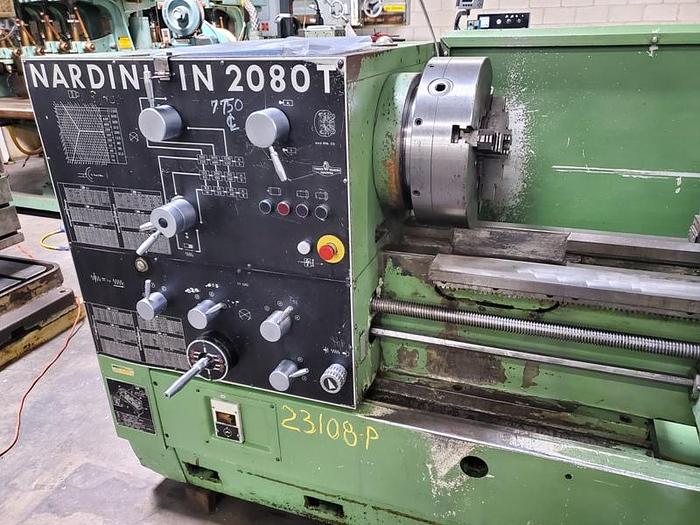

NARDINI GAP BED ENGINE LATHE

20" X 80" NARDINI GAP BED ENGINE LATHE PRICE: Loaded on Truck, Our Warehouse, York, PA … $14,500.00 HMC Stock # 23108-P Machine Serial No.: 379.405.530 Machine Model No.: IN-2000T New Date: 1986 Height of Centers: 10" Distance Between Centers: 80" Swing Over Bed: 20" Swing Over Carriage: 18" Swing Over Cross Slide: 11-3/8" Swing in Gap: 27-7/8" Length in Gap in Front of Face Plate: 11-3/4" Cross Slide Travel: 12-5/8" Tool Slide Travel: 7" Spindle Nose: A1-11 Spindle Bore: 4-3/4" Spindle Internal Taper: 1:20 Reduction Sleeve Taper: #6 Morse (18) Spindle Speeds: 16 to 1250 RPM Tailstock Quill Diameter: 3-1/2" Quill Travel: 103/8" Quill Taper: #5 Morse (70) Metric Threads: .4 to 35 (61) Inch Threads: 42 to 2 (68) Module Threads: .20 to 15 (65) DP Threads: 84 to 1-1/2 Pitch of Leadscrew: 4 (108) Cross Feeds: .0008 to .0663 Inches per Revolution (108) Longitudinal Feeds: .0033 to .1685 Inches per Revolution EQUIPPED WITH: 15-3/4" Bison 3 Jaw Chuck 18" Face Plate Newall 2 Axis Digital Read-Out 6" Steady Rest 6 Position Adjustable Turret Stop for Carriage 2 Speed Tailstock 4 Way Rapid Traverse Assorted Change Gears OEM Manual Full Length Rear Splash Guards (some not seen in this photo) 20 HP Main Motor Wired for 3 Phase, 60 Cycle, 220/440 Volts Overall Size: 144" L-R x 50" F-B x 70" High
