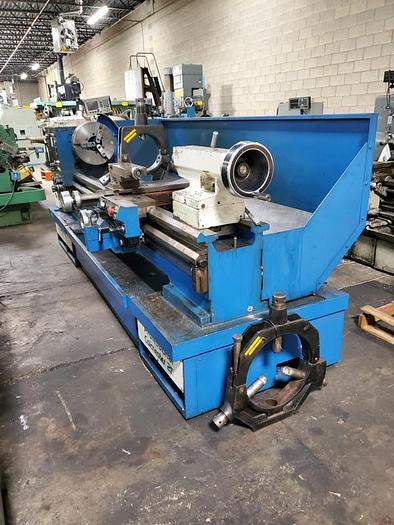

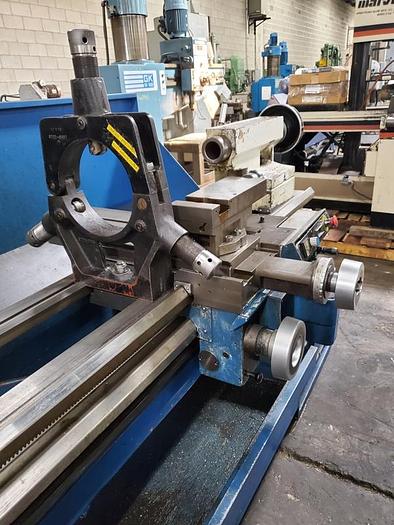

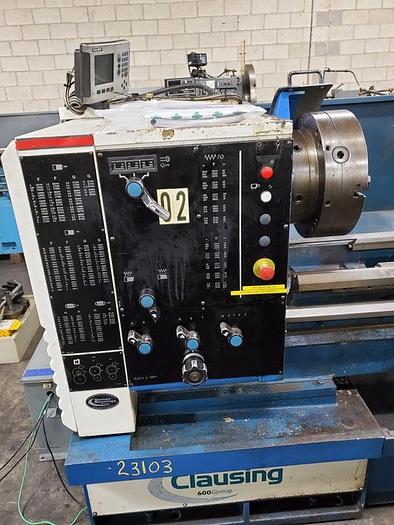

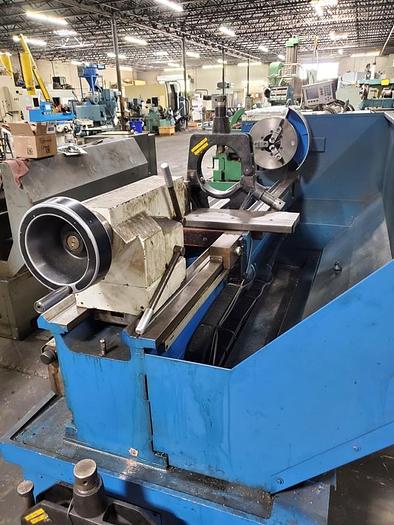

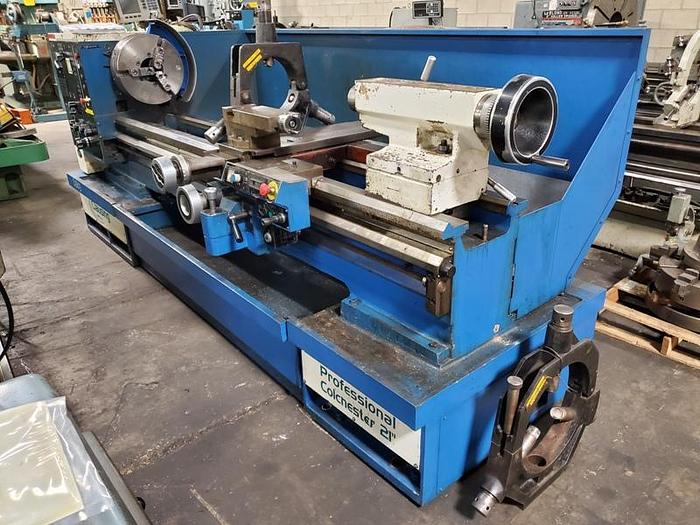

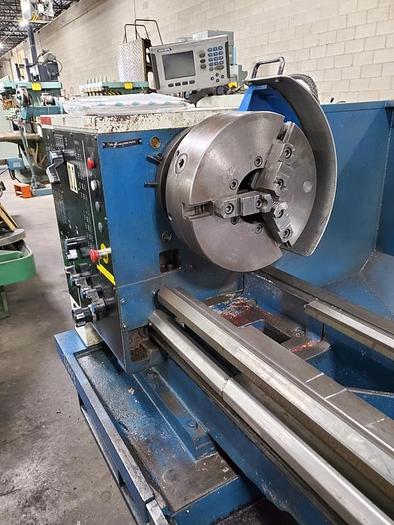

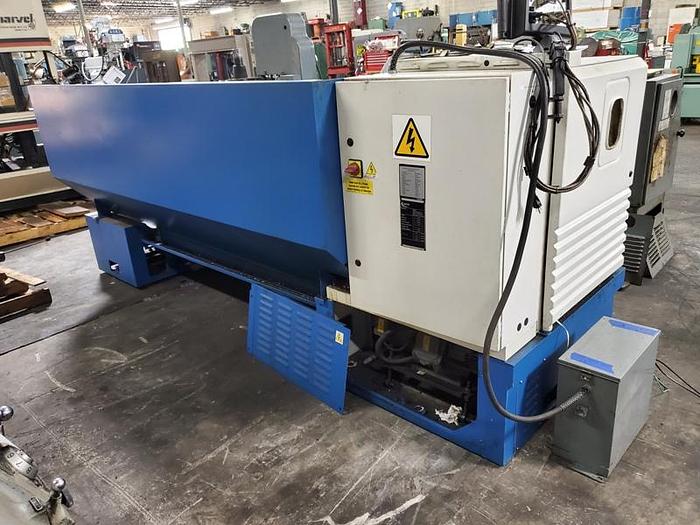

CLAUSING COLCHESTER ENGINE LATHE

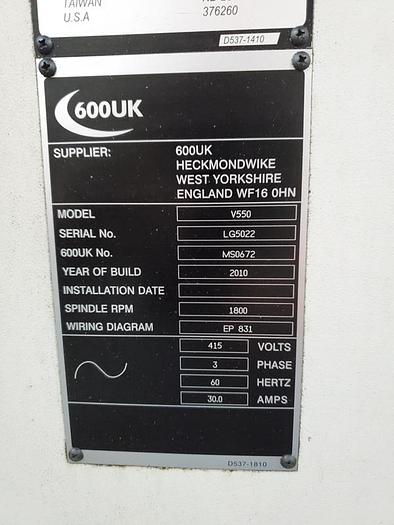

21" X 80" CLAUSING COLCHESTER GAP BED ENGINE LATHE PRICE: Loaded on Truck, Our Warehouse, York, PA …… $25,500.00 HMC Stock # 23103 Machine Serial No.: LG5022 Machine Model No.: V550 New Date: 2010 Swing: 21.81" (Catalog Specification from Clausing, Actual Measured Swing Over the Bed is Approx. 26") Swing in Gap: 32.68" (Catalog Specification, Actual Swing in Gap Not Measured) Width in Front of Faceplate: 8.5" Swing Over Cross Slide: 14.57" Spindle Bore: 4.09" Spindle Nose: D1-11 Camlock Spindle Nose Taper: #5 Morse Spindle Speeds: 18 -1800 (Infinitely Variable Over Three Ranges) Low: 18-200 RPM Mid: 55-605 RPM High: 160-1800 RPM Cross Slide Travel: 11.81" Tailstock Quill Diameter: 3.74" Quill Travel: 5.7" Quill Taper: #6 Morse Longitudinal Feed Range: .0016 - .110 in./rev. Cross Feed Range: .0008 - .055 in./rev. (73) Standard Thread: 2 – 84 TPI (27) Metric Threads: .2 – 14mm (27) Diametral Threads: 8 – 72 DP (51) Module Threads: .2 – 3.5 MOD EQUIPPED WITH: 15-3/4" Bison 3 Jaw Chuck Acu-Rite Digital Readout 15" Solid Bushing Type Steady Rest 9" Roller Type Steady Rest AC Spindle Drive Chuck Guard Two Axis Rapid Traverse Heavy Duty Tailstock Single Piece Leadscrew Cover Roll Out Chip Pan MISSING Coolant Pump 220 Volt Input Step Up Transformer 15 HP Main Motor Wired for 3 Phase, 60 Cycle, 415 Volts Overall Size: 140” LR x 60” FB x 60” High
