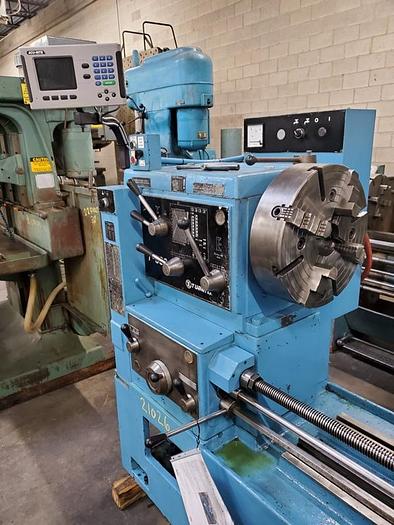

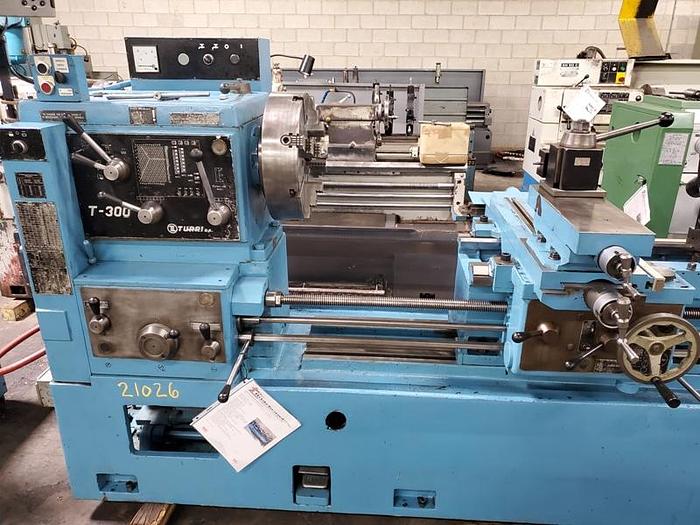

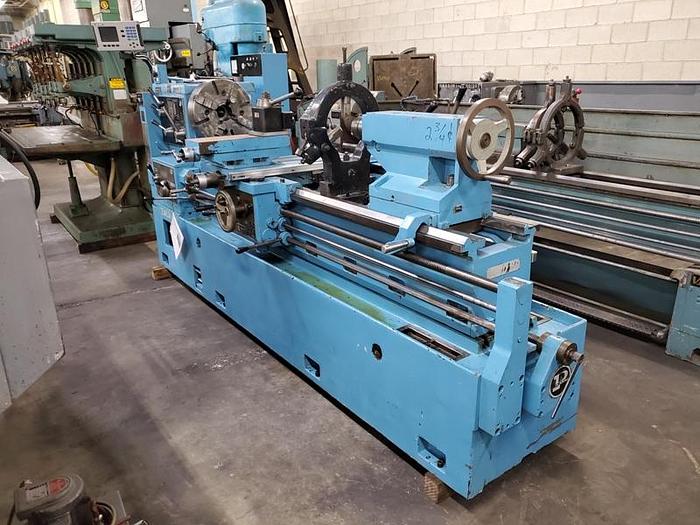

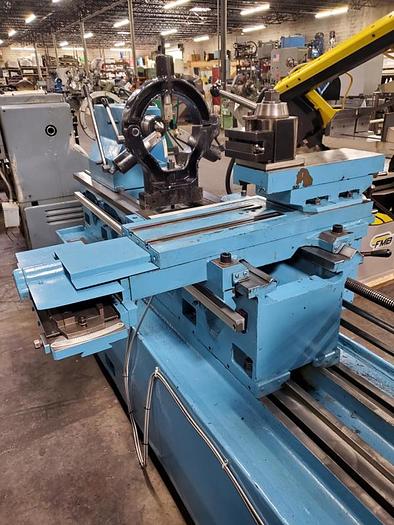

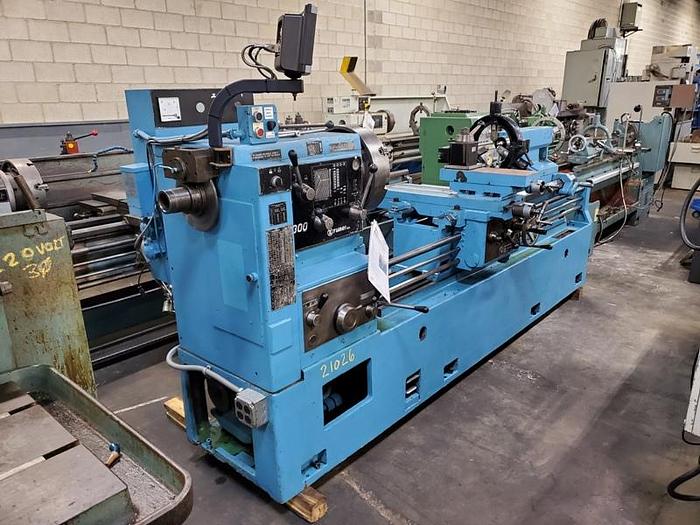

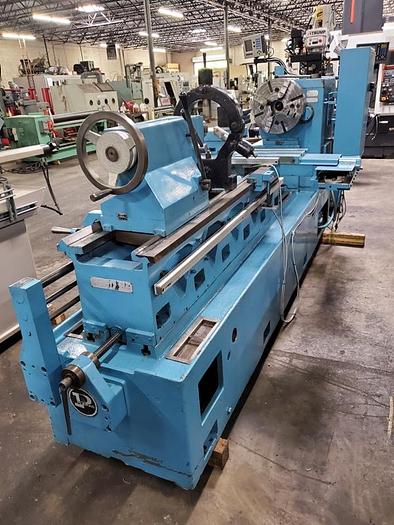

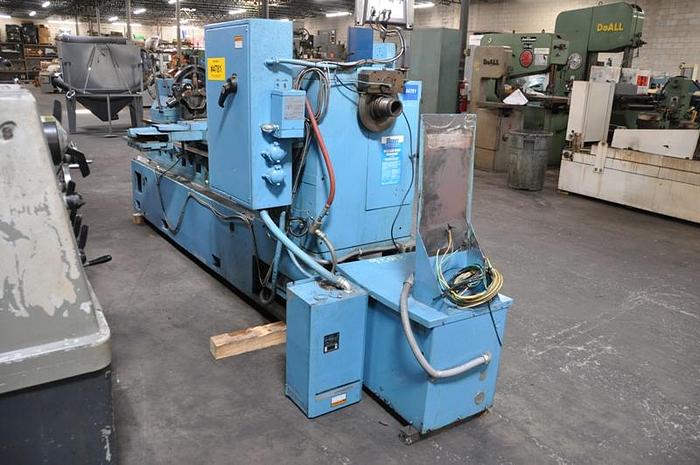

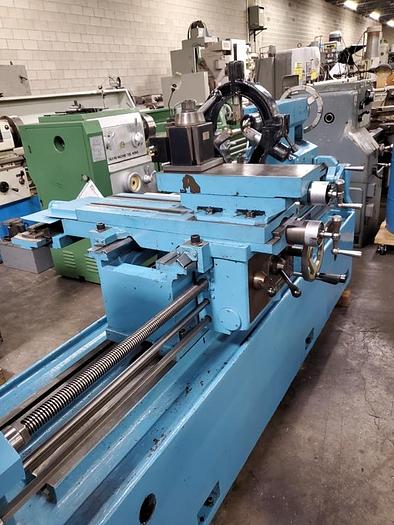

TURRI ENGINE LATHE

TURRI SLIDING GAP BED LATHE PRICE: Loaded on Truck, Our Warehouse, York, PA …… $10,500.00 HMC Stock # 21026 Machine Serial No.: 17/139.84 Machine Model No.: T-300SB New Date: Unknown Swing Over Bed: 24" Swing Over Cross: 16" Swing Over Gap: 34" Length of Gap: 28" Distance Between Centers: 70" Max. Width of Bed: 16" Spindle Hole: 2.4" (18) Spindle Speeds: 12.5 to 1250 RPM (126) Feeds, Longitudinal: .00236" to .13291" TPR (126) Feeds, Transversal: .00118" to .06645" TPR (32) Metric Threads: 1 to 30 MM (42) Standard Threads: 1 to 66 TPI Travel of Cross Slide: 12" Tailstock Taper: #5 Morse Weight Between Centers: 4,409 Lbs. Max. EQUIPPED WITH: Acu-Rite 2 Axis Digital Readout System, Model DRO200-S2XT Aloris Tool Post with (1) DA1 Tool Holder (1) 10" Steady Rest, Dead Type with Bronze Tips (1) Live Center in Tailstock (1) Dead Center in Headstock (1) Bore Bushing in Headstock for Center Taper Attachment – Clamping to Bed Items MISSING (1) 16" Bison 4 Jaw Chuck with Hard Reversible Chuck Jaws (1) Chuck Wrench (1) Hand Crank Handle for Bed Slide Adjustment Hand Crank Tailstock Positioner Coolant Sump and Pump in Base of Machine Air operated Spindle Brake System with Foot Pedal Control Made in Argentina Motor AMP Meter 9.5 / 15 HP Main Motor Wired for 3 Phase, 60 Hz, 220 Volts Only Overall Size: Machine: 148" LR (bed open or closed) x 26" FB x 50" High x 7,500 Lbs.
