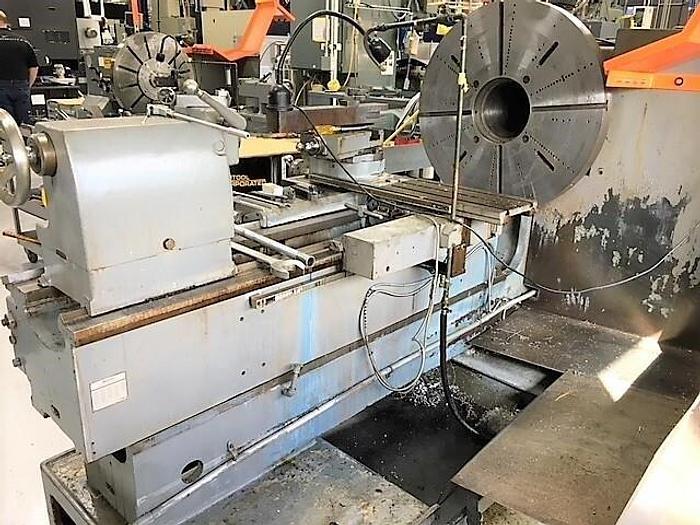

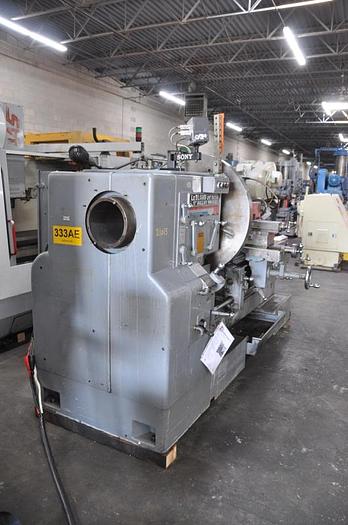

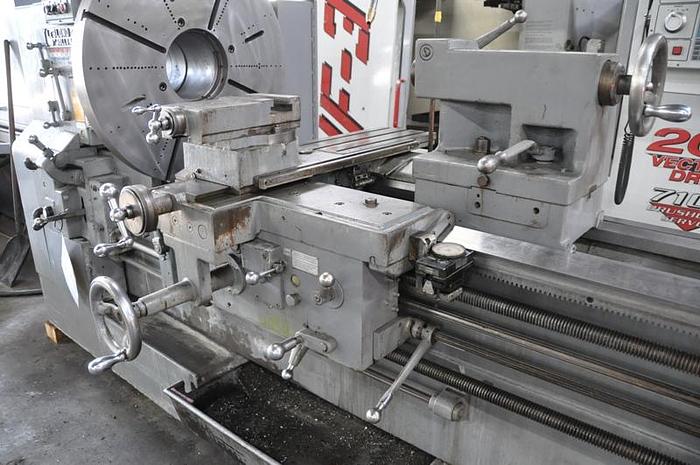

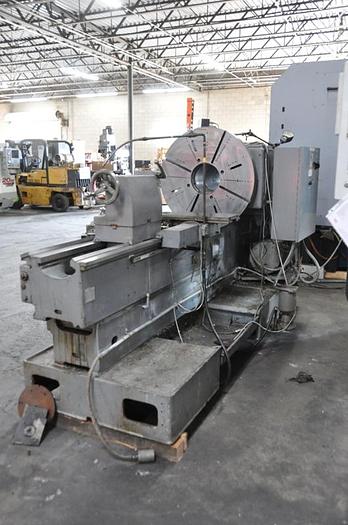

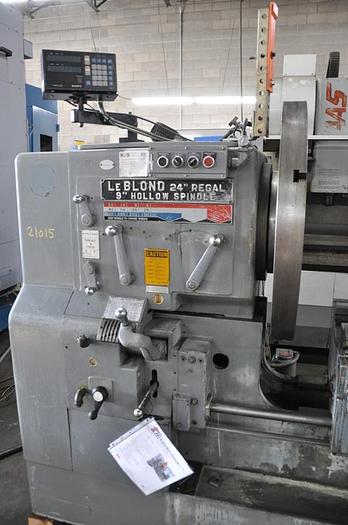

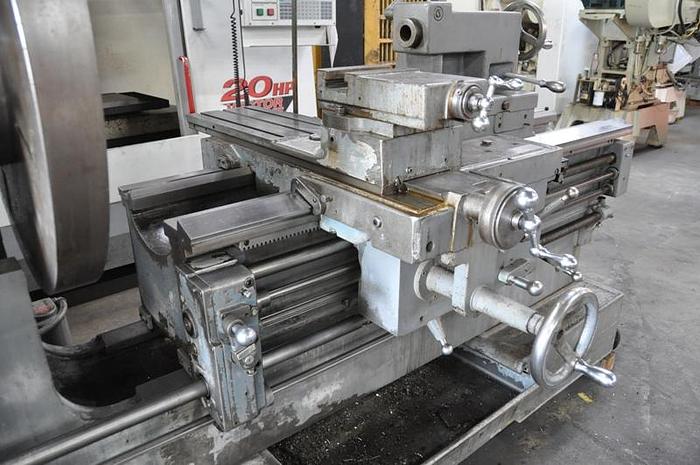

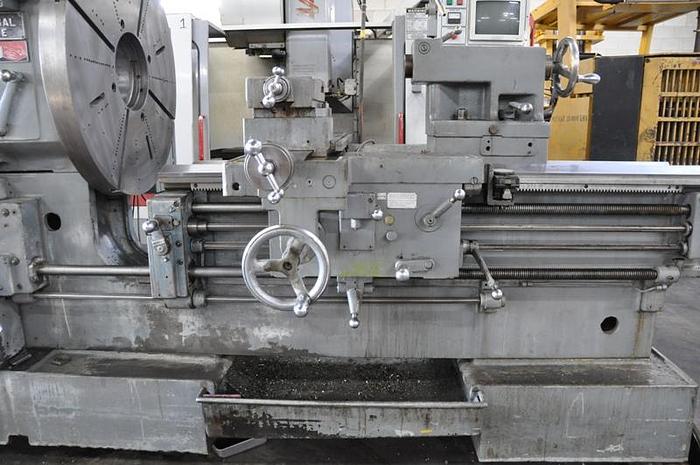

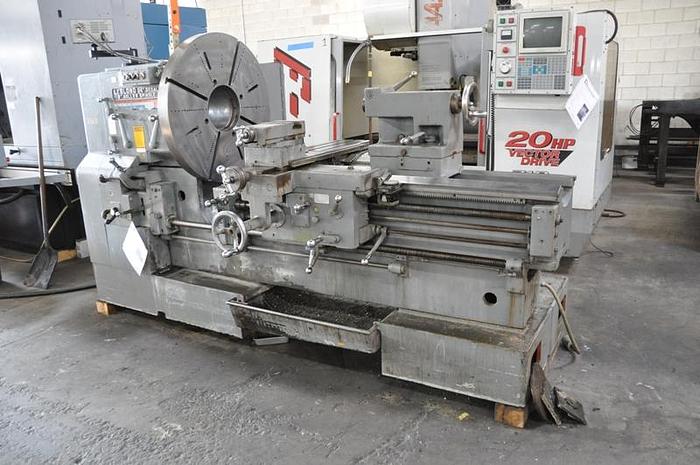

24"/39" x 52"/84" LEBLOND REGAL SLIDING GAP BED LATHE

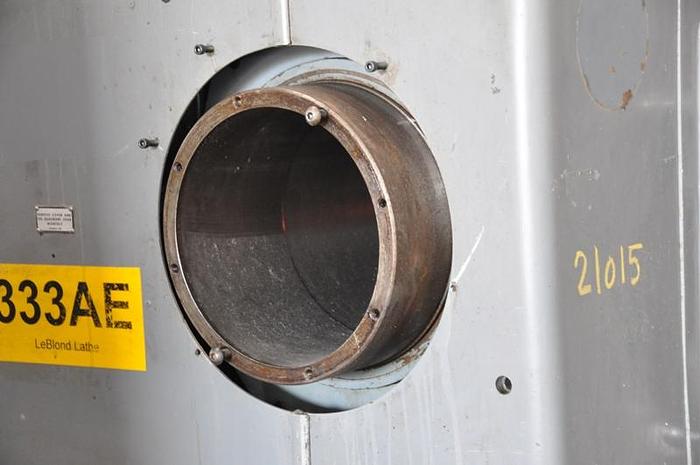

LEBLOND 24"/39" x 52"/84" SLIDING GAP BED LATHE PRICE: Loaded on Truck, Our Warehouse, York, PA …… $39,500.00 HMC Stock # 21015 Machine Serial No.: 6HS-338 Machine Model No.: 24" Regal New Date: 1977 9" Spindle Thru Hole Swing Over Ways, Bed Closed: 26-1/4" Swing Over Bottom Ways, Bed Open: 54" Swing in Gap: 52-1/2" Max. Distance Between Centers (bed closed): 48" Distance Between Centers (bed open): 84" (12) Spindle Speeds: 6 to 400 RPM (48) Feeds: .0036" to .205" Per Revolution (48) Threads: 2 to 112 TPI #5 Morse Taper in Tailstock Quill Tailstock Quill Diameter: 3-1/8" Tailstock Quill Travel: 8" Swing Over Cross Slide: 18-1/4" Spindle Nose: 15.00" Diameter A Series Bolt On 10-5/16" Diameter Spindle Tube End Rear - Not Threaded EQUIPPED WITH: 34" Diameter Face Plate Machine Work Light Removable Chip Pan Hard Replaceable Bed Ways, Very Good Condition Trav-A-Dial on Carriage, NO Thread Chasing Dial Inch Graduated Dials on Cross Slide and Top Components Tailstock Clamp Wrench Sony LH52 2X Digital Readout Variable Power Spindle Brake Control Removable Rear Splash Guard Swing Up Removable Chuck Face Plate Guard NO Bed Support for Extended Operation 1/4 HP Gusher Coolant Pump with Piping, Wired for 3 Ph, 60 Hz, 230/460 Volts 15 HP Spindle Motor, Wired for 3 Ph, 60 Hz, 230/460 Volts Presently Wired for 440 Volts Overall Size, Closed for Shipping: 117" LR x 53" FB x 64" High (on 3-1/2" blocks) x approx. 6500 Lbs DRO, Work Light and Chuck Guard Removed
