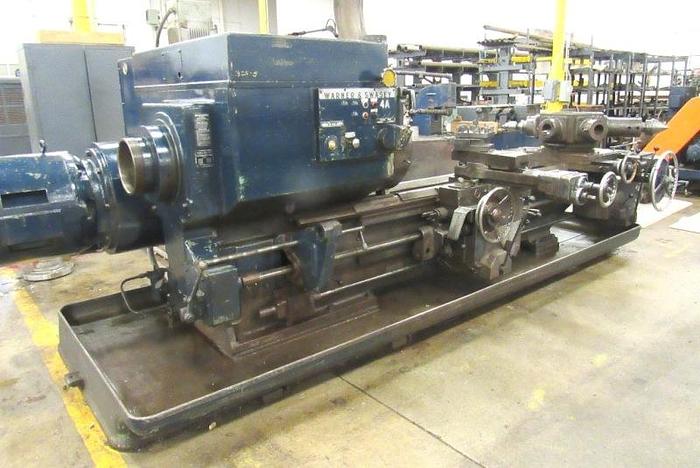

WARNER & SWASEY 4A SQ. HEAD SADDLE TYPE TURRET LATHE

WARNER & SWASEY 4A SQUARE HEAD TURRET LATHE PRICE: Loaded on Truck, Our Warehouse, York, PA …… $19,500.00 HMC Stock No. 17168 Machine Serial No. 1532316 Machine Model No. 4A, M-3550, Lot 7 New Date: 1956 Swing Over Bed: 28-1/4" Swing Over Carriage: 22" Distance Between Centers: 59-7/8" Spindle Hole: 9-1/4" Spindle Nose: A2-15 (16) Spindle Speeds: 20 to 526 RPM via Hydraulic Preselect (32) Total Feeds: (16) Cross Feeds: .003" to .103" (16) Longitudinal Feeds: .005" to .167" Power Rapid Traverse: Cross Slide: 6-3/4 FPM Cross Slide Apron: 15-1/2 FPM Saddle Apron: 36-1/4 FPM Turret Travel: 68-3/8" Spindle Nose to Turret Face: 80-3/16" Maximum Compound Swivels: 45 Degrees Each Way EQUIPPED WITH: Cross Sliding Saddle Turret Swing Up Chuck Guard Lead On Threading with Half Nut on Carriage Large Assortment of Thread Leads and Nuts Large Assortment of Boring Bars, Bushings, Spade Drill Holders and Other Items Rear Splash Guards Turret Tools: (3) Short Flanges, (2) Medium Flanges, (1) Long Flange Tool Holders Hardened and Ground Bed Ways in Good Condition with Hard Way Covers 24" 3-Jaw Power Chuck Lead on Threading to Carriage with Half Nut 4-Sided Carriage Turret Tool Holder 8-3/4" x 8-3/4" Power Angle Compound Feed Power Chuck Wrench 4 Way Power Rapid Traverse to All Axis Assorted Flanged Saddle Turret Tool Holders Hardened and Ground Bed Ways in Very Good Condition Coolant System 60 HP Main Motor, Single Speed Motor 1750 RPM, 150/75 Amps Wired for 3 Phase, 60 Hz 220 / 440 Volts Presently Wired For 220 Volt Operation Overall Size: Machine 204" L-R x 84" F-B x 72" H x 23,000 Lbs. Box of Tooling 22" x 62" x 18" High x ? Lbs. See YOUTUBE Video at: https://youtu.be/NLygdTmwl6c
