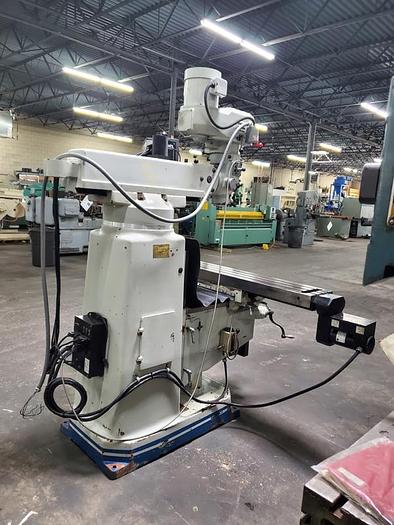

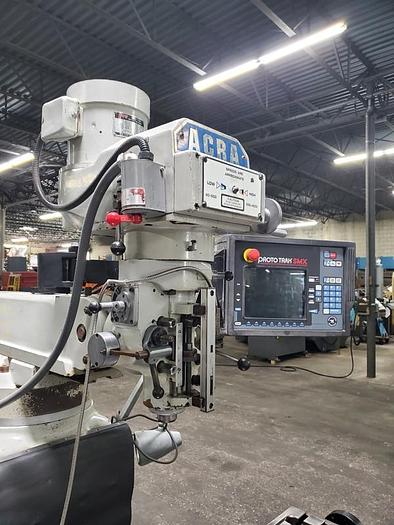

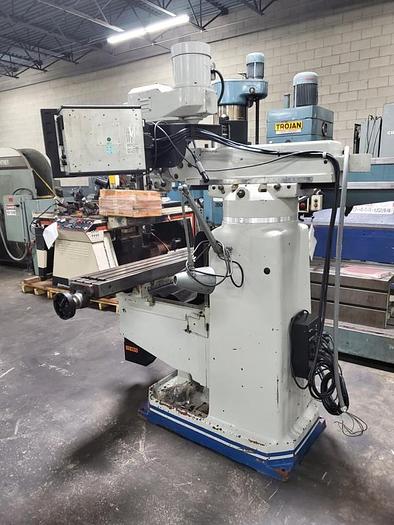

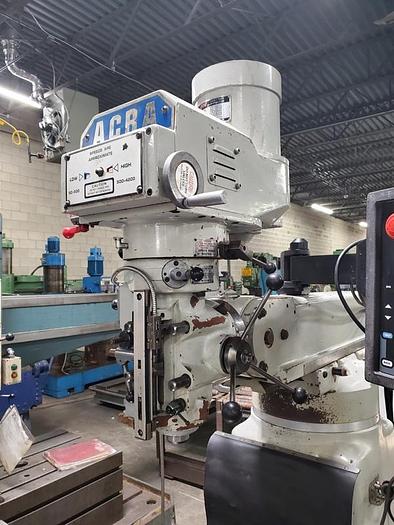

ACRA 2-AXIS CNC VERTICAL MILL

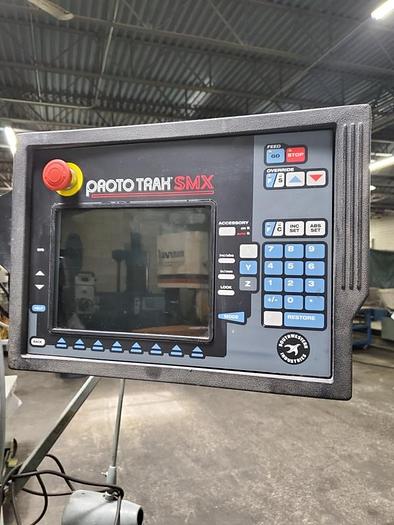

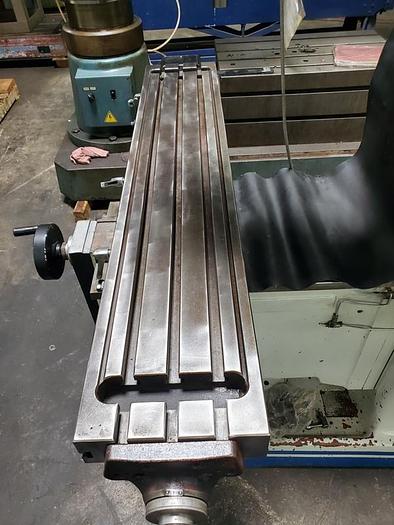

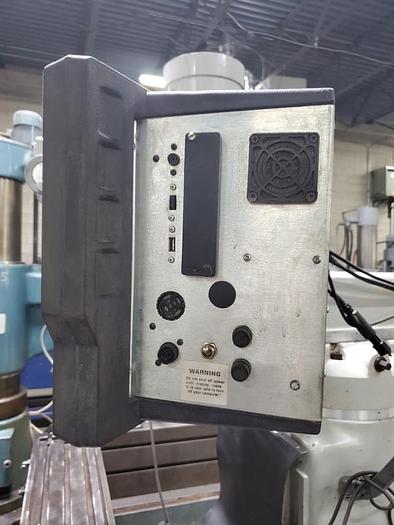

ACRA 2-AXIS CNC VERTICAL MILL PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $12,500.00 HMC Stock # 23073 Machine Serial No.: 961742 Machine Model No.: AM3V New Date: 1996 Work Table: Surface Area: 54″ x 10″ T-Slot Center Distance: 3 @ 2.5″ Centers T-Slot Sizes: 5/8″ Maximum Weight of Workpiece: 750 Lbs. Travels: X-Axis Table Travel: 39.5″ Y-Axis Table Travel: 16.5″ Z-Axis Table Travel (Knee): 16″ Quill Travel: 5″ Spindle: Spindle Taper: R8 Spindle Diameter: 1.875″ Quill Diameter: 3-3/8″ Distance Spindle to Table (Maximum): 18″ Distance Spindle to Column (Minimum/Maximum): 5″ to 27″ Speeds: 60 to 4,200 RPM Power Quill Feed: 0.0018″/Rev, 0.0034″/Rev & 0.0056″/Rev Motor: 3 HP, 220/440 Volt Head Adjustments: Head Swivel: 90 Degrees Head Tilt: 90 Degrees Head Cant: 45 Degrees Equipped With: SWI Prototrak SMX 2-Axis CNC Control Serial Number 9284, New Date: 7/2012 Manual Knee One Shot Lube Work Light 3 HP Main Motor Wired for 3 Phase, 60 Cycle, 220/440 Volts Currently 440 Volts Overall Dimensions: 76″ LR x 72″ FB x 90″ High x 3,500 Lbs.
