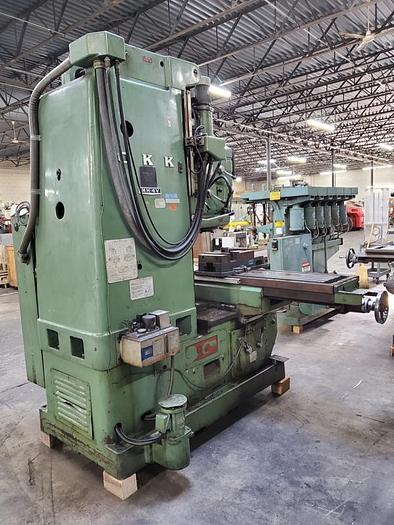

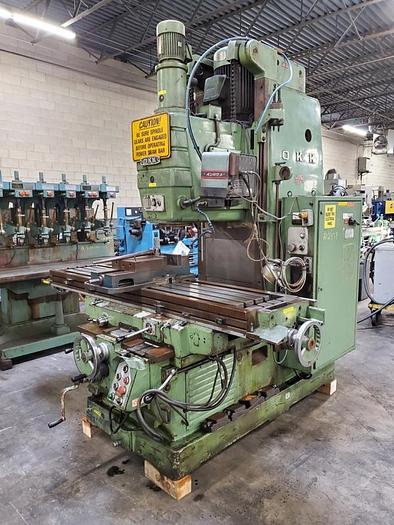

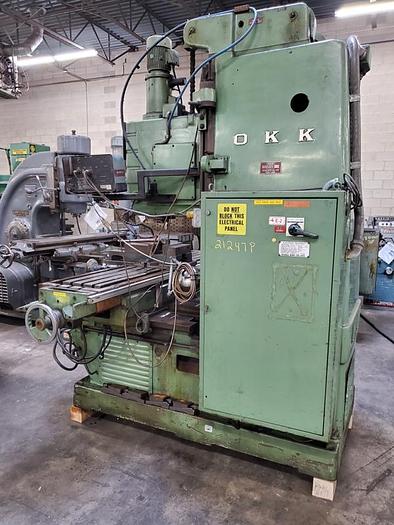

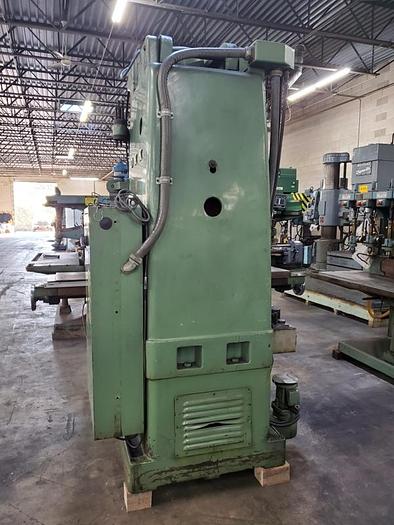

OKK BED TYPE VERTICAL MILL

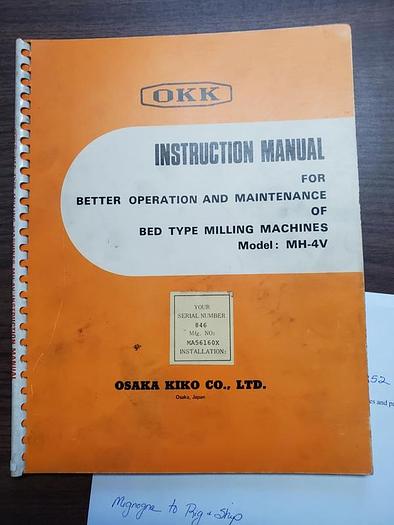

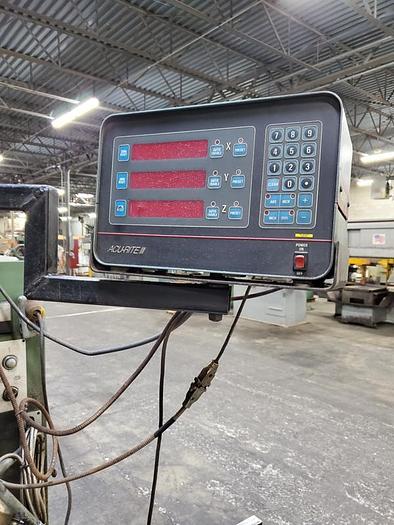

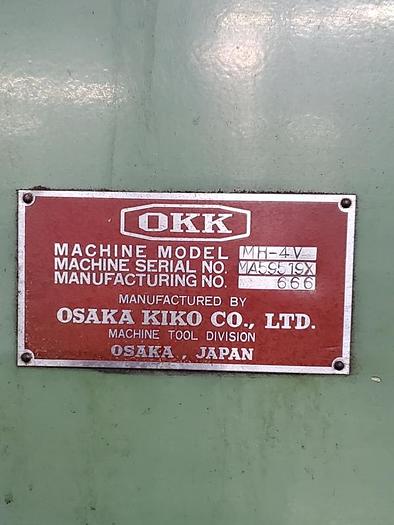

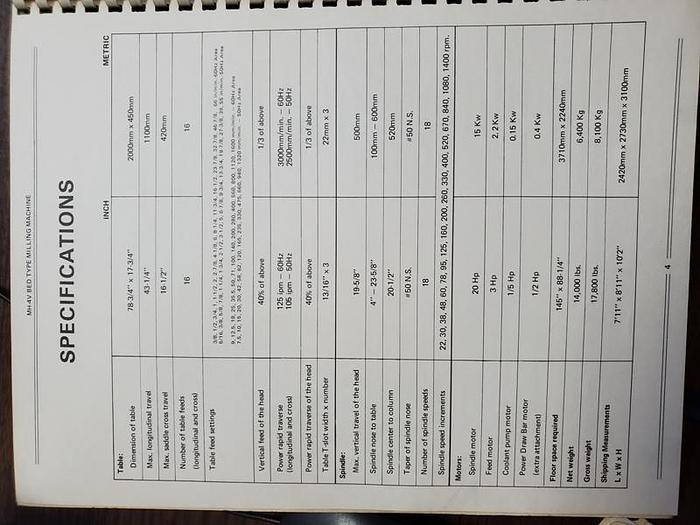

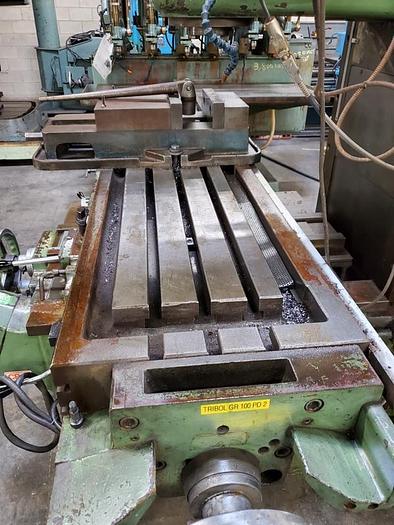

OKK BED TYPE VERTICAL MILL PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $24,500.00 HMC Stock # 21247-P Machine Serial No.: MA59519X Machine Model No.: MH-4V Manufacture No.: 666 New Date: 1981 Table Size: 78-3/4" x 17-3/4" (3) T-Slots: 13/16" Longitudinal Travel: 43-1/4" Cross Travel: 16-1/2" (16) Table Feeds: 3/8 to 66 IPM Power Rapid Traverse: 125 IPM Head Vertical Travel: 19-5/8" Head Vertical Feed Rate: 0.150 to 26.4 IPM Distance Spindle Nose to Table: 4" to 23-5/8" Distance Spindle Center to Column: 20-1/2" Taper of Spindle Nose: #50 National Standard (18) Spindle Speeds: 22 to 1400 RPM EQUIPPED WITH: Power Draw Bar Acu-Rite 3-Axis Digital Readout Coolant Pump 8" Kurt Vise with Handle Central Automatic Lubrication System Automatic Table Feed – Rapid Cycle (3) Adjustable Table Cycle Trip Dogs (4) Wedge Type Machine Leveling Pads (1) OEM Instruction Manual for Operation and Maintenance 20 HP Spindle Motor 3 HP Feed Motor 1/5 HP Coolant Pump Motor 1/2 HP Power Draw Bar Motor Wired for 3 Phase, 50/60 Hz, 230 / 460 Volts Overall Size: 97" LR x 87" FB x 104" High (on 4" blocks) x 14,000 Lbs.
