3 HYDRAULIC PRESSES with HYDRAULIC SYSTEM

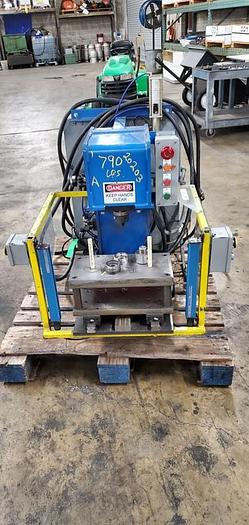

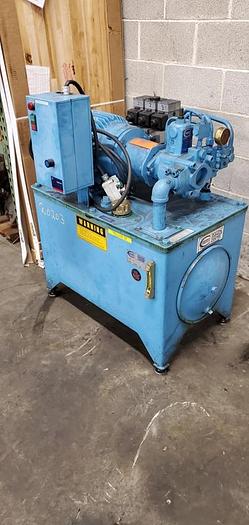

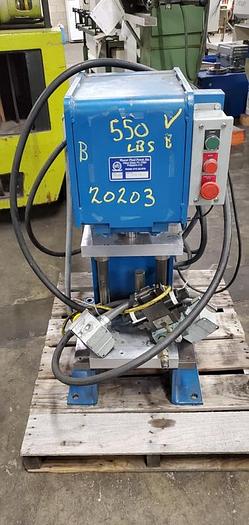

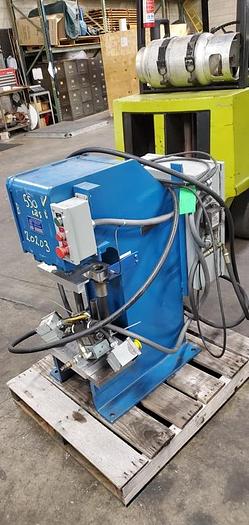

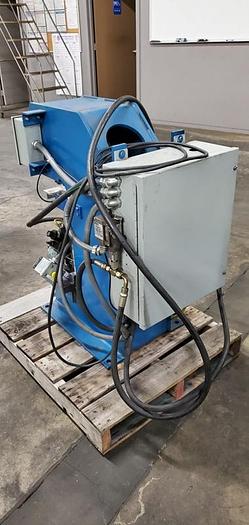

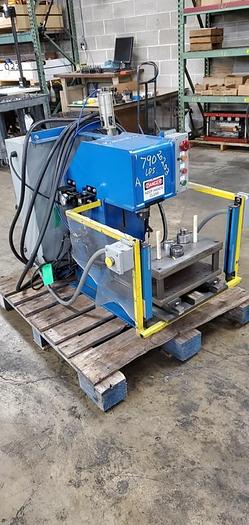

3 HYDRAULIC PRESSES with HYDRAULIC SYSTEM PRICE: Loaded on Truck, Our Warehouse, York, PA …… $3,500.00 HMC Stock # 20203 Machine Serial No.: None Machine Model No.: None New Date: Unknown This is a package of three C frame hydraulic presses that are hooked to a common hydraulic system. All three presses can be operating at the same time and each press has its' own independent control. PRESS A: Centerline of Ram to Frame: 6" Distance Ram Nose to Bed: 14-3/4" Max. Approx. Ram Size: 1-3/4" Dia. Bed Rails on Each Side: 10" FB x 13" Across Rails (press bed is the die set plate) Overall Size: 34" LR x 43" FB x 42" High x 790 Lbs. on Skid Dual Palm Button Cycle Controls 16" x 18" x 3/4" Thick Bolster Plate with 2 Linear Guide Ways for Sliding the Die Set In - Out Under the Ram Compressed Air Required for Sliding Die Setup Air Regulators Cycle Controls: Run – Start – Stop – E Stop Micro Guard Safety Controls Twido Soft MPC Pacino Press V2 Control Software Year 2005 OEM Software Literature and Schematics PRESS B: Centerline of Ram to Frame: 6" Bed Rails on Each Side: 10" FB x 13" Across Rails (press bed is the die set plate) Distance Ram Nose to Bed: 15" Max. Approx. Ram Size: 1-3/4" Dia. Bed Size: 7-1/2" FB x 14" LR x 1" Thick Bolster (1) Homemade Die Set Dual Palm Button Operation Controls NO Linear Way System on this Press Overall Size: 20" LR x 31" FB x 42" High x 550 Lbs. on Skid PRESS C: Centerline of Ram to Frame: 6-1/4" Distance Ram Nose to Bed: 14-1/2 Max. Approx. Ram Size: 1-5/16" Dia. Bed Rails on Each Side: 10" FB x 13" Across Rails (press bed is the die set plate) Universal Micro Spray Marker Controller Dual Palm Button Cycle Controls 16" x 16" x 1" Thick Bolster Plate with 2 Linear Guide Ways for Sliding the Die Set In - Out Under the Ram Compressed Air Required for Sliding Die Setup Air Regulators with Filter and Lubrication Bowls Cycling Safety Controls for Die In or Out of Position Twido Soft MPC Pacino Press V2 Control Software Year 2005 Overall Size on Skid: 23" LR x 41" FB x 38" High x 550 Lbs. HYDRAULIC SYSTEM: Continental Hydraulic System Continental Pump Unit 3 Separate Hydraulic Vales Tank Size Approx.: 46 Gallons 15 HP Baldor Motor Wired for 3 Phase, 60 Hz, 230 / 460 Volts Start – Stop Controls for Hydraulic System Oil Filter Unit with Indicator Gage Hydraulic Pressure Gage Overall Size: 36" LR x 34" FB x 45" High x ? Lbs.
