DOALL VERTICAL BAND SAW

DOALL VERTICAL BAND SAW

$7,500 (USD)

orCall 717-846-2600

Description

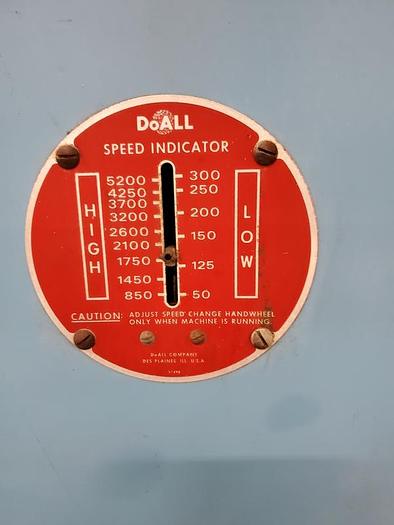

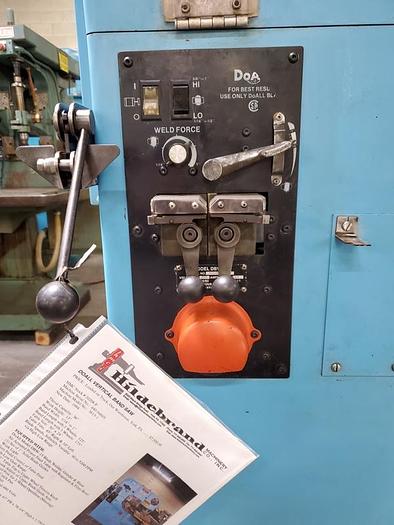

DOALL VERTICAL BAND SAW PRICE: Loaded on Truck, Our Warehouse, York, PA …… $7,500.00 HMC Stock # 20208-P Machine Serial No.: 440-94605 Machine Model No.: 3613-1 New Date: 1994 Throat Capacity: 36" Machine Can Operate in 2 Wheel or 3 Wheel Configuration Capacity with 2 Wheels is 16-1/2", with 3 Wheels 36" Work Height: 13" Band Width: 1/16" to 1" Band Length with 2 Wheels: 125" Band Length with 3 Wheels: 175" Table Size: 30" x 24" Table Tilts: 45° Right & 10° Left Blade Speeds, Infinitely Variable: 90 to 5200 FPM via High-Low Range EQUIPPED WITH: DoAll Model DBW-15 Blade Welder, Grinder & Shear Air Actuated Power Feed Table with Regulator & Filter Bowl (1) Set of 1" Solid Blade Guides Work Light Foot Pedal Control of Table Feed High-Low Gear Range 10-1/2" Table Top to Upper Wheel Tension Knob Hand Crank Adjust of Upper Blade Guide Arm Blade Guard Post for 2-Wheel Operation (Missing) Lower Chip Catch Pan Chip Blower Unit 3 HP Motor Wired For 3 Phase 60 Hz 480 Volts Overall Size: 75" LR x 47" FB x 78-1/4" High x 1,750 Lbs.

Specifications

Model3613-1
ConditionUsed
Stock Number20208
Size36"
