BAILEIGH MITERING COLD SAW
BAILEIGH MITERING COLD SAW
$4,950 (USD)
Description
BAILEIGH MITERING COLD SAW
PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $4,950.00
HMC Stock # 22128
Machine Serial No.: 502184L
Machine Model No.: CS-350M
New Date: November 2015
Head Miter: 45° Left @ 45° Right
Round Solid: at 45° @ 1.575"
Square Tube: at 45° @ 2.953" x 2.953"
Round Tube: at 45° @ 2.953"
Rectangle Tube: at 45° @ 2.953" x 2.362"
Round Solid: at 90° @ 2.362"
Rectangle Tube: at 90° @ 4.25" x 3.5"
Square Tube: at 90° @ 4.25" x 4.25"
Round Tube: at 90° @ 4.331"
Max. Vice Opening: 6.5"
Head Style: Pivot
Arbor Size: 1.26"
Blade Speed: Two Speeds, 26 @ 52 (rpm)
Blade Size: Up to 14" Diameter
EQUIPPED WITH:
12" Diameter HSS Blade
24" Long Material Stop Bar
Miters 45 Deg Right and 90 Deg Left
Two Blade Speeds: 26 and 52 RPM

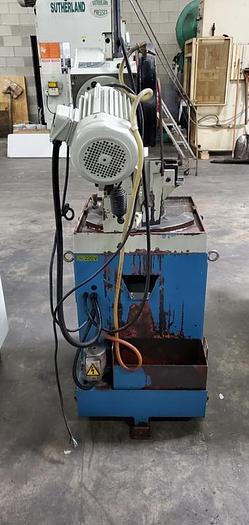

Coolant Tank, Pump and Pipping
All Metal Gears in Direct-Drive Head are Ground and Hardened

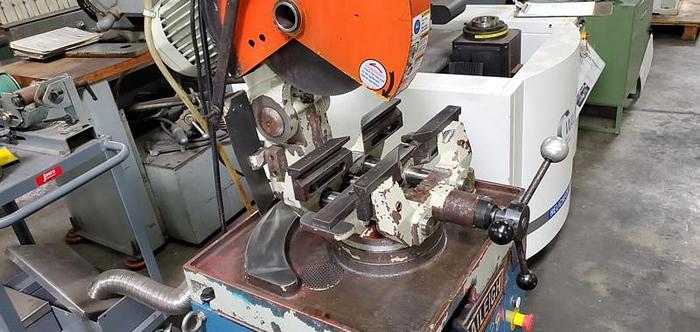

Self-Centering Vise Keeps the Material Perfectly Centered with the Blade

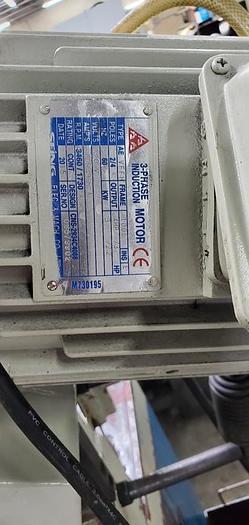

4 HP Motor, Wired for 3 Phase, 60 Hz, 220 Volts Only
Overall Size: 28" LR x 36" FB x 81" High (with handle and head up)
57" High (with handle and head down)
Weight: 800 Lbs.
Approx. New Price Today is $8,879.00
Specifications
Model | CS-350M |
Condition | Used |
Stock Number | 22128 |
Size | 4.3" ROUND TUBE |
