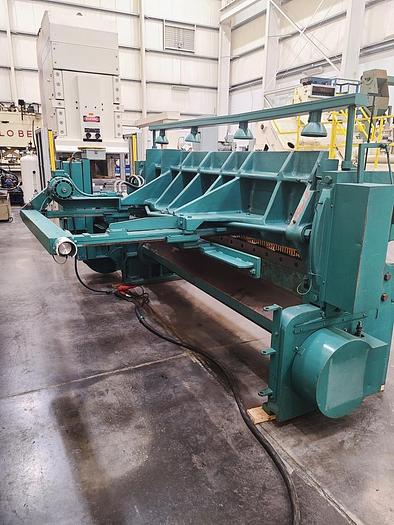

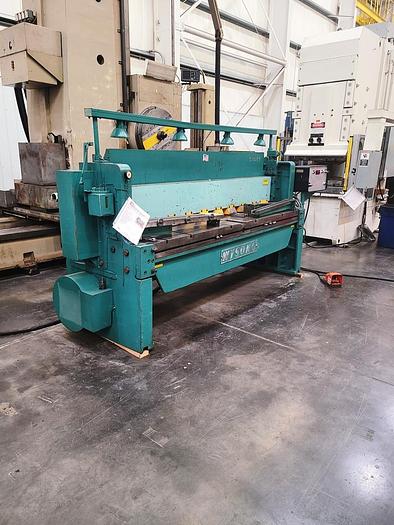

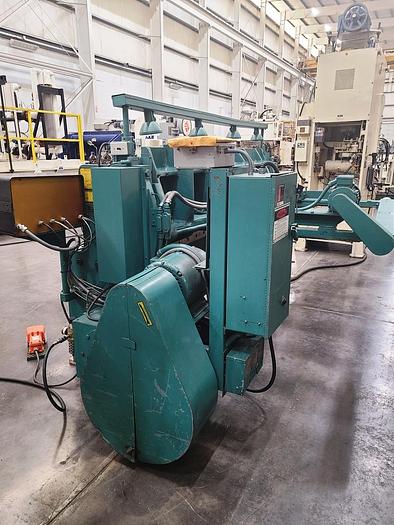

WYSONG MECHANICAL POWER SQUARING SHEAR

WYSONG MECHANICAL POWER SQUARING SHEAR

$19,500 (USD)

orCall 717-846-2600

Description

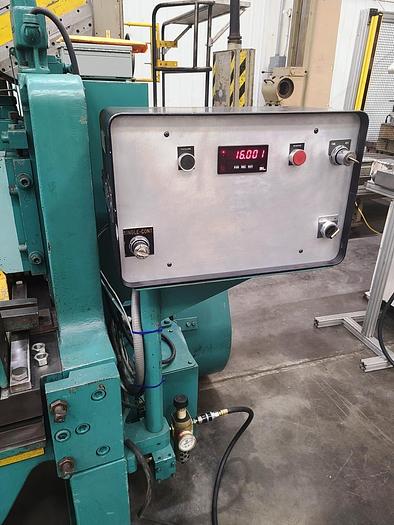

3/16" X 8' WYSONG MECHANICAL POWER SQUARING SHEAR PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $19,500.00 HMC Stock # 21005-P Machine Serial No.: P113-109 Machine Model No.: 796 New Date: 1985 Rated Capacity: 8' of 3/16" Mild Steel Rated Capacity: 12 Ga. of Stainless Steel Cutting Length: 96" Powered Back Gage Range: 35" Approximate Distance Floor to Table: 33" +/- EQUIPPED WITH: Single Axis Power Back Gage With Digital Read Out Electric Foot Pedal Trip Control (2) Adjustable 31" Long Front Material Support Arms (1) 42" Long Squaring Arm (On Left Side) with (2) Adjustable Material Stops (1) Set of 4 Edge Knives in Good Condition Bijur Pressurized Lubrication System Adjustable & Replaceable Ram Ways Wear Strips Full Length Finger Guard Mechanical Material Hold Downs Manually Adjustable Cycle Brake Overhead Light Bar with (4) Flood Lights Air Actuated Mechanical Clutch – Compressed Air Required 15 HP Main Motor, 200/230/460 Volts 3/4 HP Back Gage Motor, 200/230/460 Volts Wired for 3 Phase, 60 Hz, 230/460 Volts Presently Wired for 440 Volt Operation Machine is in Good Physical Overall Size Assembled: 146" LR x 81" F-B (w/o sq arm and supports) x 70" High x 11,750 Lbs.

Specifications

Model796
ConditionUsed
Stock Number21005
Size08' X 3/16"
