TSUDAKOMA CNC TILTING ROTARY TABLE

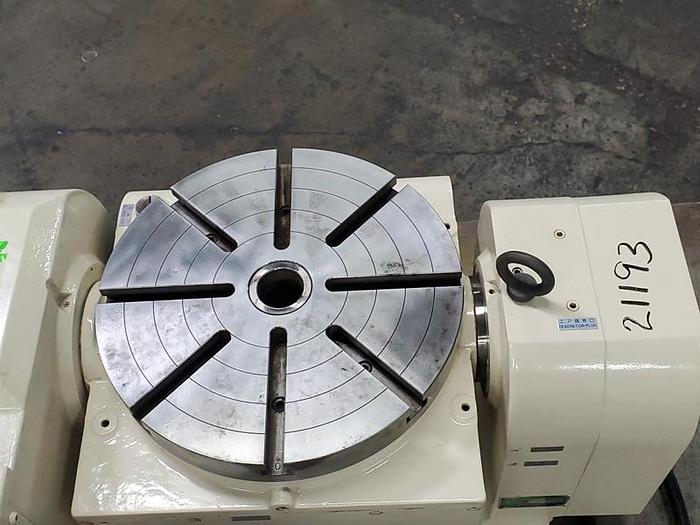

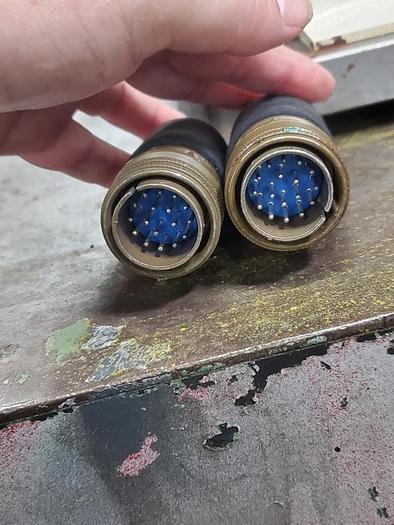

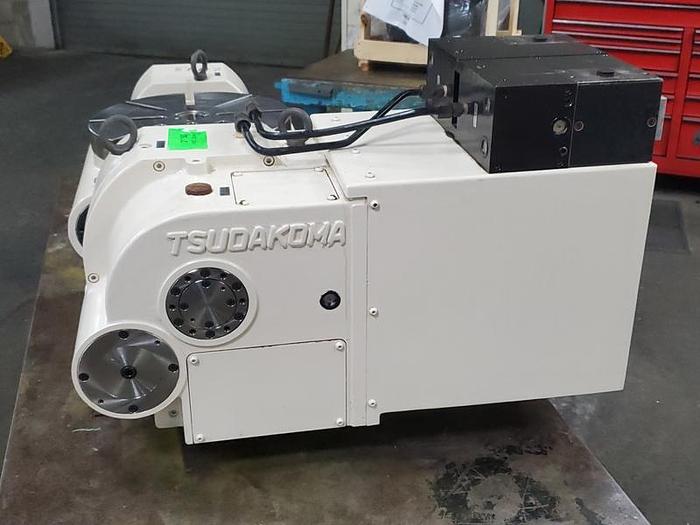

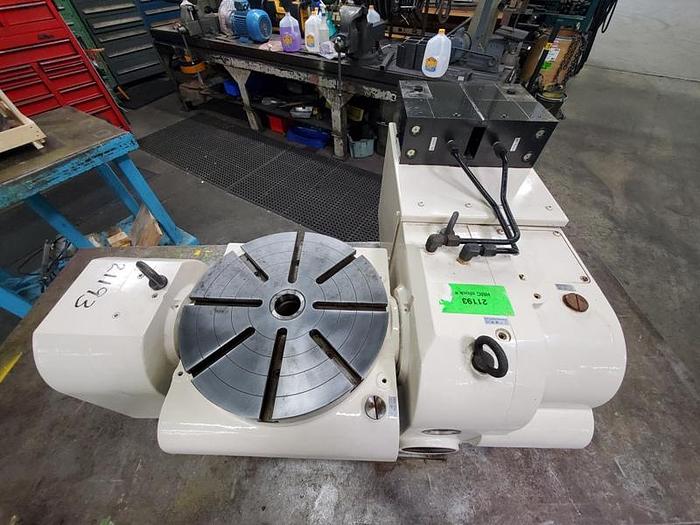

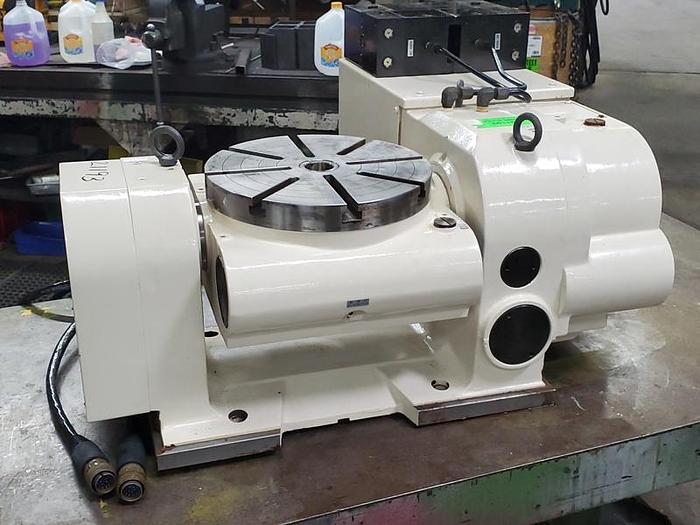

TSUDAKOMA CNC TILTING ROTARY TABLE PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $7,500.00 HMC Stock #21193-P Machine Serial No.: 961329 Machine Model No.: TRNC301 New Date: 1996 SPECIFICATIONS: Table Diameter: 12.59" Center Hole Thru Table: 1.575" Diameter Tilt Range: +110° Center Height at 90°: 10.03” Height of Table in Flat Position: 13.58" Table Load at 0° Tilt: 330 Lbs. Table Load at 90° Tilt: 220 Lbs. Maximum Table Speed: 8.5 RPM Servomotor: Rotary: Fanuc Alpha 8i Tilt: Fanuc Alpha 8i Speed Reduction Ratio: Rotary: 1/360 Tilt: 1/360 Index Accuracy: Rotary: + 7.5 Arc Sec Tilt: + 7.5 Arc Sec Clamping System: Hydraulic Clamping Torque: Rotary: 613 Ft. Lbs. Tilt: 722 Ft. Lbs. Allowable Wheel Torque: 563 Ft. Lbs. Distance Between Unit Frames at Table Top: 15" Dual Cannon Plug Connectors Originally Used on HAAS VF5 VMC Unit Base Size: 23" x 13-1/2" See Photos for More Details Overall Size: 33" LR x 30" FB x 20" High x 770 Lbs.
