RAMPE VIBRATORY TUB

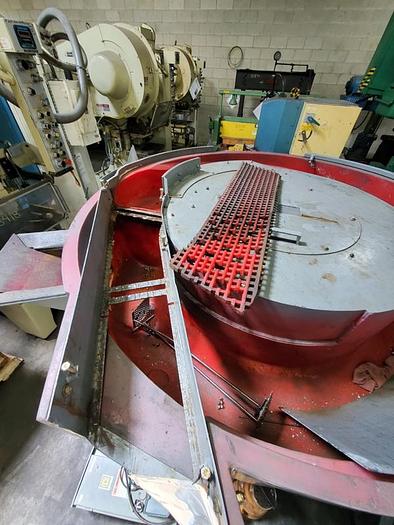

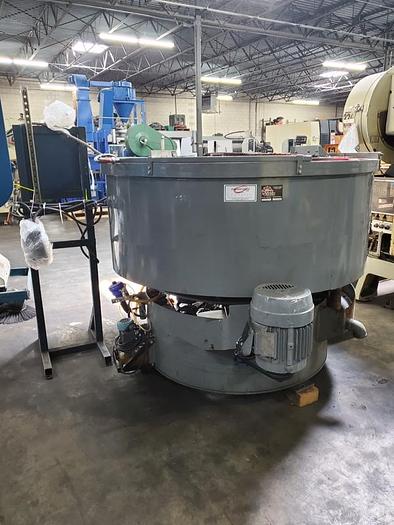

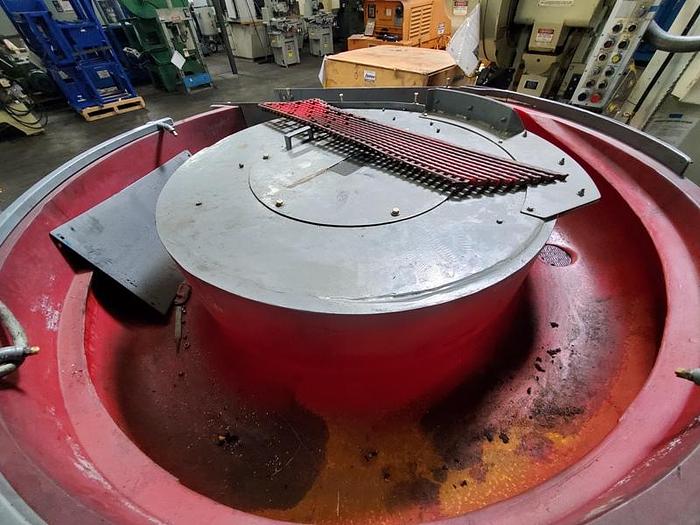

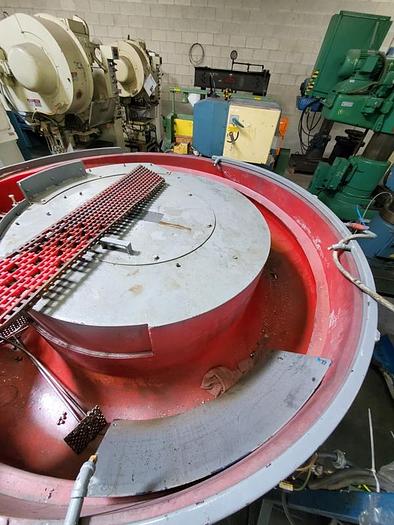

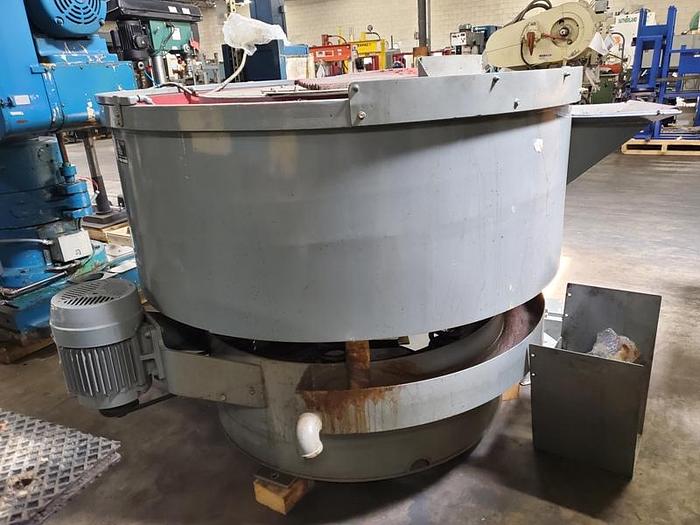

RAMPE VIBRATORY FINISHING TUB PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $4,500.00 AS IS HMC Stock # 22059 Machine Serial No.: 10950602 Machine Model No.: SB 8.5CW New Date: Unknown Cubic Feet Capacity: 8.5 Approximate Dimensions of U Shape Channel: 9" Wide x 9" Deep 7.5 HP Main Motor Bowl Diameter: 72" Stand Alone Control with Timer Media Drain Hour Meter Reading as of May 2022: 20,712 Hours This unit has a VibTech tag and model serial number on this machine. That information is seral number 9106M260, model VT10LR. This does appear to be an original Rampe unit and likely it was relined at some point. At one time there appeared to be an optional loading gate but that was fixed in place and the new liner poured in the bowl. The bowl now exists as a helical ramp. The parts would just fall back down into the bowl. Or you can put a cover over the part exit chute to walk parts out. It appears that an additional chute was added for the operator to pull parts by hand. This really is not a standard design so please study the photos carefully and be aware of what you are buying. Wired for 3 Phase, 60 Cycle 440 Volts Overall Size Machine: 84" LR x 72" FB x 60" High Control: 24" LR x 24" FB x 72" High
