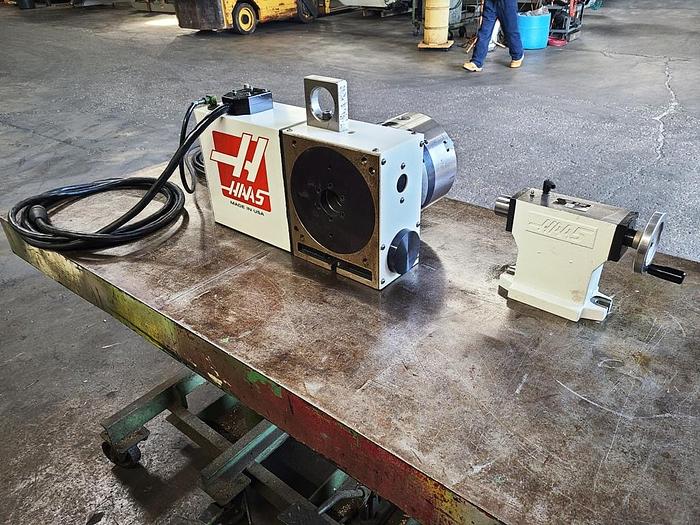

HAAS ROTARY TABLE AND TAILSTOCK

HAAS ROTARY TABLE AND TAILSTOCK

PRICE:  Loaded on Truck, Our Warehouse, York, PA …… $5,900.00

HMC Stock # 24082-P

Machine Serial No.: 217945

Machine Model No.: HRT-210

New Date: Unknown

This 4th axis table is a BRUSH TYPE unit with a brushless control. This unit can ONLY be used on Haas machines that are capable of supporting a brush type 4th axis with the single cable. To be use on other machines the control box is used and will work with the 4th.

Face Plate Diameter: 8.27"

Floor to Center of Plate: 6"

Overall Size: 20" LR x 6" FB x 11" High

EQUIPPED WITH:

Pneumatic Brake

17 Pin Plug

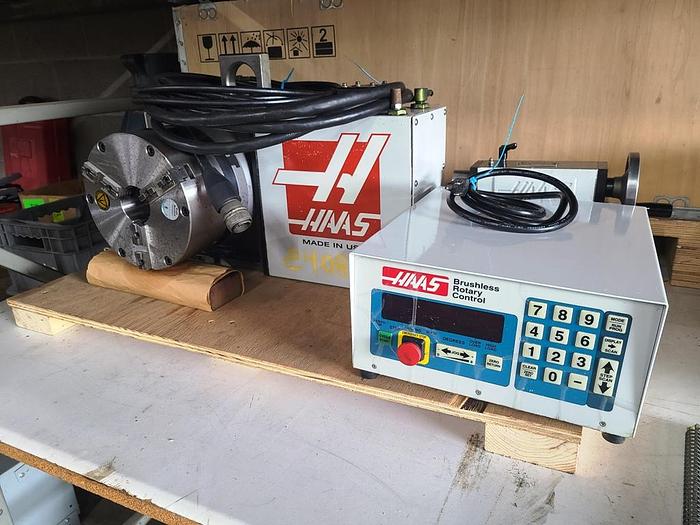

Haas SCO-AC Brushless Rotary Control

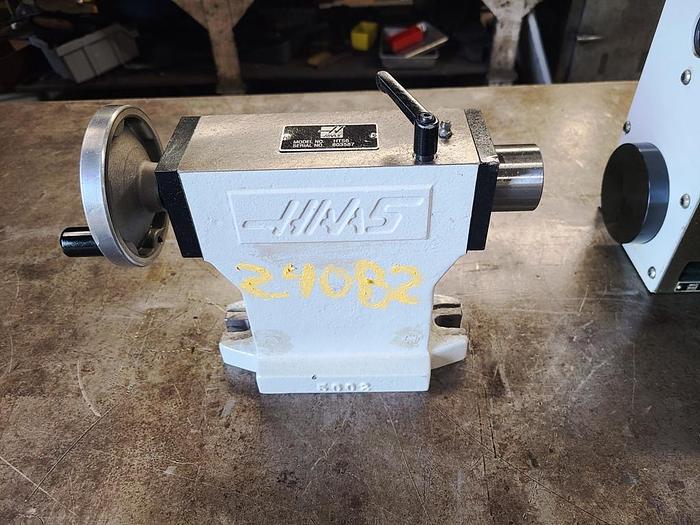

Haas HTS-6 Tailstock, Serial # 803587

Pratt Burnerd 3 Jaw Chuck

Manuals

Wired for Single Phase, 60 Cycle, 115 Volts

Overall Size on Pallet: 36" LR x 36" FB x 12" High
