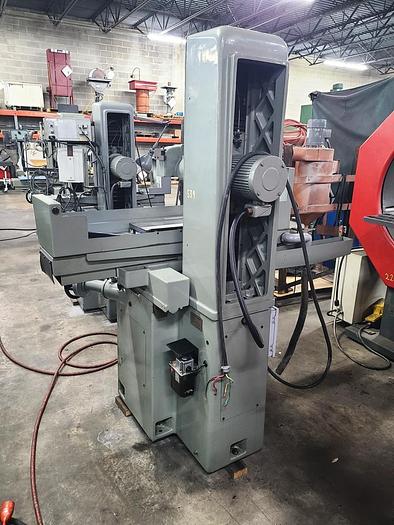

8" X 18" MITSUI HAND FEED SURFACE GRINDER

8" X 18" MITSUI HAND FEED SURFACE GRINDER

PRICE:  Loaded on Truck, Our Warehouse, York, PA …… $7,950.00

HMC Stock # 24079-P

Machine Serial No.: 89105367

Machine Model No.: MSG-250MH

New Date: 1989

Dimension of Working Surface: 19" x 8"

Maximum Grinding Length and Width: 17-3/4" x 9-1/4"

Maximum Height from Table Surface to Grinding Wheel Spindle Center: 15-3/4"

Maximum Longitudinal Movement of Table: 18"

Maximum Cross Movement of Table: 10"

Table Movement per Hand Wheel Revolution: 5"

Hand Wheel for Vertical Feed:

  Per One Revolution: .05"

  Per One Division: .0001"

Hand Wheel for Cross Feed:

  Per One Revolution: .1"

  Per One Division: .001"

Height from Floor to Table Surface: 40"

Wheel Size: 7" Diameter x 1/2" Width x 1-1/4" Bore

EQUIPPED WITH:

8" x 18" Walker Ceramax Permanent Magnetic Chuck

Automatic Lubrication

1 KW Main Motor

Wired for 3 Phase, 60 Cycle, 220 Volts

Overall Size: 75" LR x 55" FB x 76" High x 1,800 Lbs.
