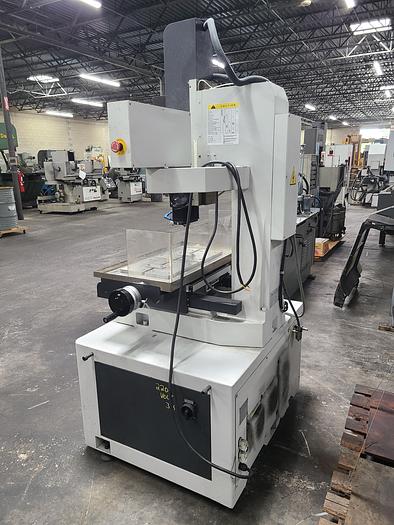

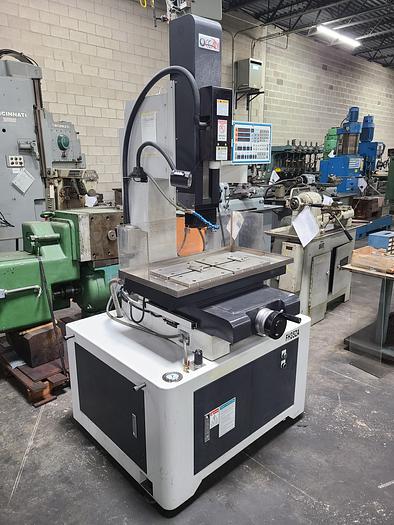

OCEAN TECHNOLOGIES EDM DRILL

OCEAN TECHNOLOGIES EDM DRILL

PRICE:  Loaded on Truck, Our Warehouse, York, PA …… $12,500.00

HMC Stock # 24057-P

Machine Serial No.:  DR17181215

Machine Model No.:  FH35ZA

New Date:  2015

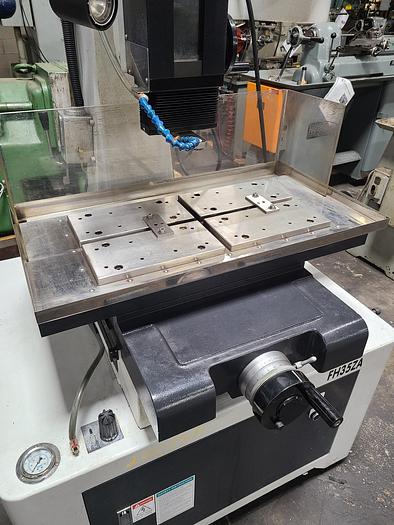

Work Table Size:  600 mm x 300 mm (23.62" x 11.81")

Z-Axis Travel:  350 mm (13.78")

W-Axis Travel:  200 mm (7.87")

Maximum Workpiece Height:  330 mm (12.99")

Maximum Workpiece Weight:  250 kgs (551 Lbs.)

Power Input:  According to Local Voltage

Maximum Average Current:  32 Amps (64A Optional)

Power Capacity:  3.8 KVA

Electrode Diameter:  0.1 ⁓ 3.0 mm (.0039" ⁓ .1181")

   (3.0 ⁓ 6.3 mm Optional) (.1181" ⁓ .2480")

EQUIPPED WITH:

Manual Hand Positioning with Dials

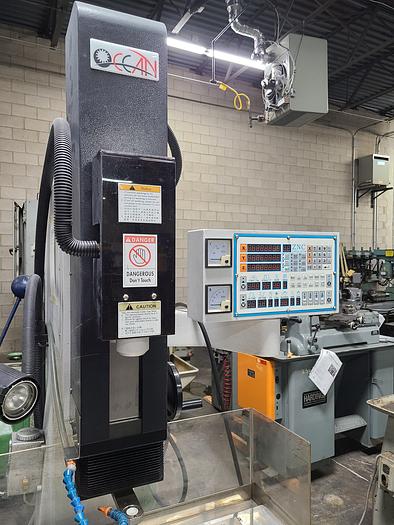

ZNC Control/Digital Read Out

Factory Manuals

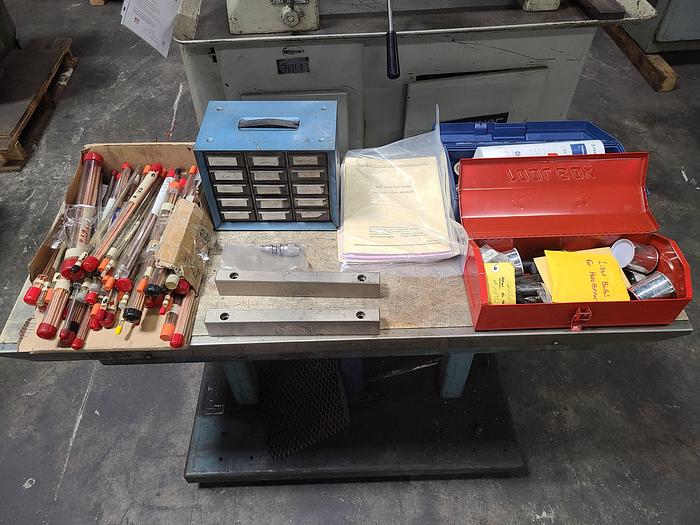

Assorted Electrodes and Keyless Chuck Holder

Assorted Spare Filter and Parts

Work Light

One Shot Lube

(2) Set-Up Fixture Bars

Wired for 3 Phase, 220 Volts

Overall Size: 52" LR x 50" FB x 84" High x 2,500 Lbs.
