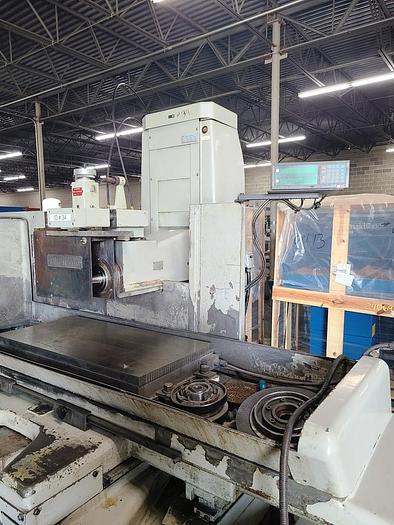

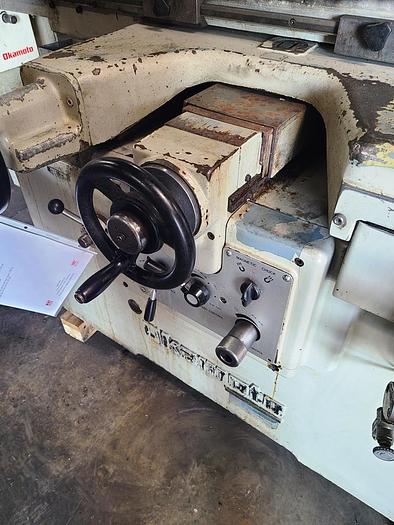

16" X 32" OKAMOTO HYDRAULIC SURFACE GRINDER

16" X 32" OKAMOTO HYDRAULIC SURFACE GRINDER

PRICE:  Loaded on Truck, Our Warehouse, York, PA …… $12,500.00

HMC Stock # 24051-P

Machine Serial No.:  8542

Machine Model No.:  1632N

New Date:  Unknown

Maximum Grinding:  16" Wide x 32" Long

Maximum Vertical Clearance:

   14" Diameter Wheel (50 Hz):  20.6"

   12" Diameter Wheel (60 Hz):  21.6"

Table Load Capacity:  1,550 Lbs.

Maximum Table Travel (Manual):  17.3" x 37.4"

Table Working Surface:  15.7" x 37.4"

Longitudinal Movement of Table

   Hydraulic Feed:  10' to 83' per Minute

Cross Movement of Saddle

   Hydraulic Intermittent Feed:  0.02" to 0.8"

   Hydraulic Continuous Feed:  8" to 40" per Minute

Hand Feed per Revolution:  0.25"

Graduation of Handwheel:  0.001"

Vertical Movement of Wheelhead

   Automatic Feed per Table Stroke:  0.0002" to 0.0015"

   Automatic Feed per Saddle Reversal:  0.0002 to 0.0015"

   Hand Feed per Revolution:  0.05"

   Manual Incremental Feed:  0.0001" to 0.0015"

   Graduation of Handwheel:  0.0001"

   Rapid Feed (50/60 Hz):  16"/19" per Minute

Grinding Wheel Diameter (50/60 Hz):  14"/12"

Grinding Wheel Width:  1-1/2"

Grinding Wheel Bore:  5"

EQUIPPED WITH:

Sony Two Axis Digital Read Out

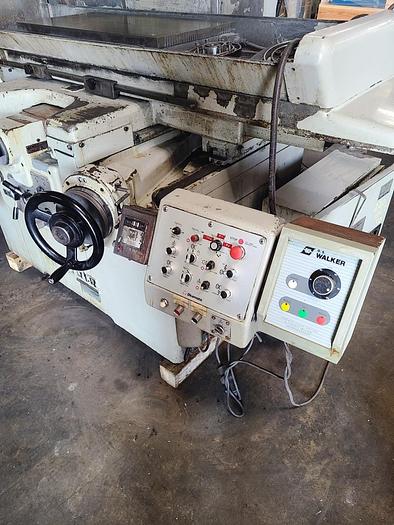

16" x 32" Electromagnetic chuck with OS Walker Control

Hydraulic Incremental Power Down Feed

Rapid Up/Down to Wheel Head

Spark Out

(2) Wheel Hubs

Manual

Coolant Tank and Pump

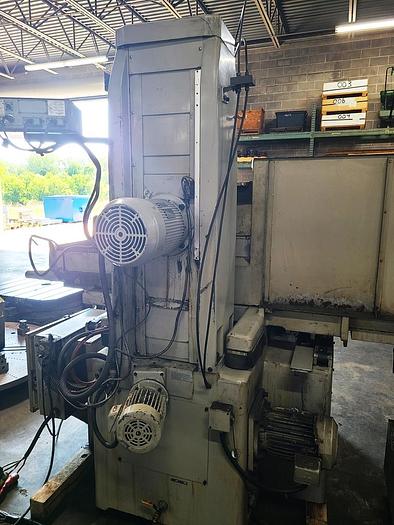

Spindle Motor: 5 HP, Wired for 3 Phase, 60 Cycle, 220 Volts

Hydraulic Pump Motor:  2 HP

Vertical Rapid Feed Motor:  1/2 HP

Machine: 96" LR x 80" FB x 88" High x Approx. 7,780 Lbs.

Coolant Tank: 40" LR x 30" FB x 36" High
