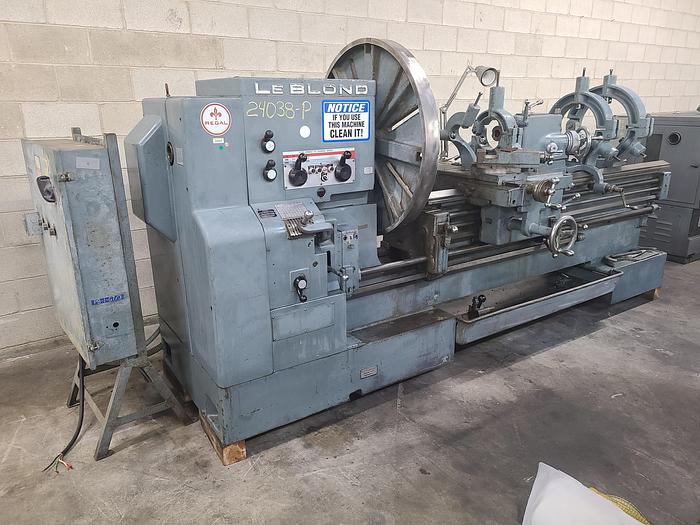

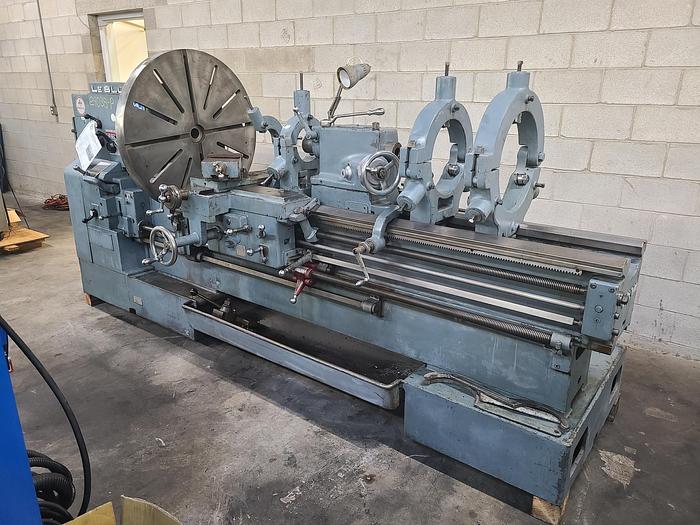

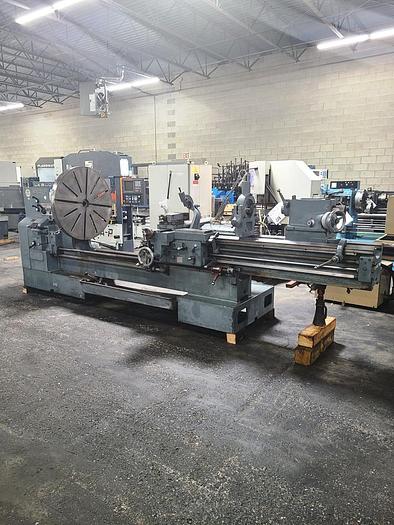

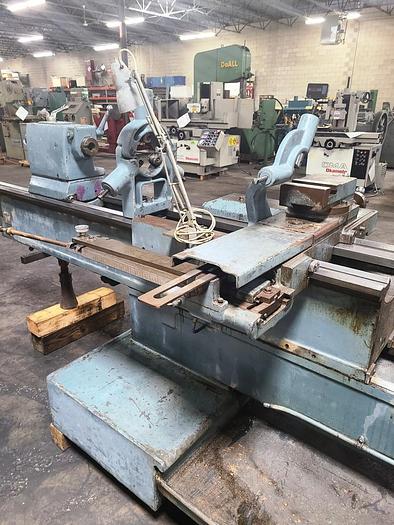

24"/96" X 52"/116" LEBLOND SLIDING GAP BED LATHE

24"/96" X 52"/116" LEBLOND SLIDING GAP BED LATHE

PRICE:  Loaded on Truck, Our Warehouse, York, PA …… $39,500.00

HMC Stock # 24038-P

Machine Serial No.:  3F-507

Machine Model No.:  24" Regal

New Date:  1962

Spindle Bore:  2-1/8"

Swing Over Ways, Bed Closed:  26-1/4"

Swing in Gap:  52-1/2" Maximum

Distance Between Centers, Bed Closed:  72"

Distance Between Centers, Bed Open:  116"

(12) Spindle Speeds:  27 to 1080 RPM

(48) Feeds:  .0036" to .205" per Revolution

(48) Threads:  2 to 112 TPI

#5 Morse Taper in Tailstock Quill

Tailstock Quill Diameter:  3-1/8"

Tailstock Quill Travel:  8"

Swing Over Cross Slide:  18-1/4"

Spindle Nose:  L2

Overall Length, Bed Extended:  16'

EQUIPPED WITH:

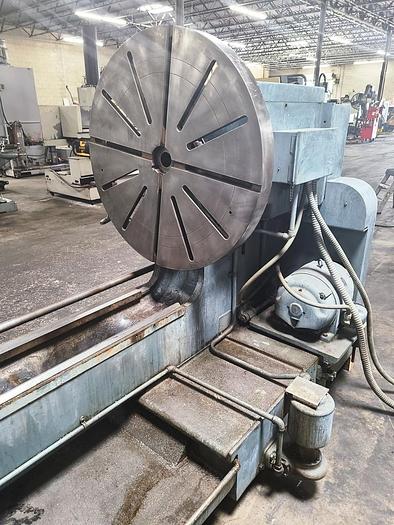

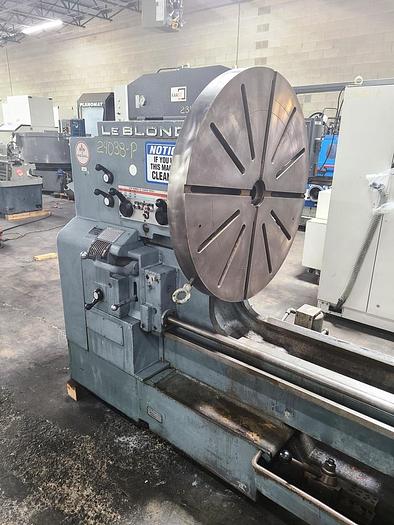

38" Diameter Face Plate

Taper Attachment

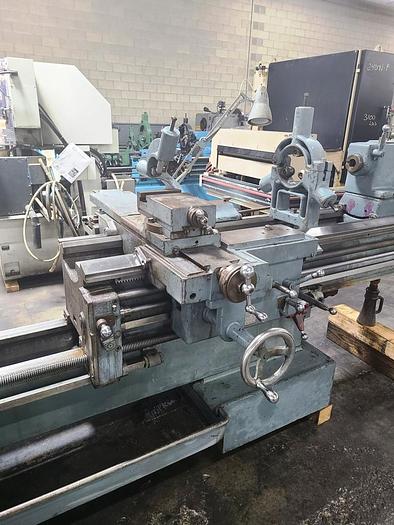

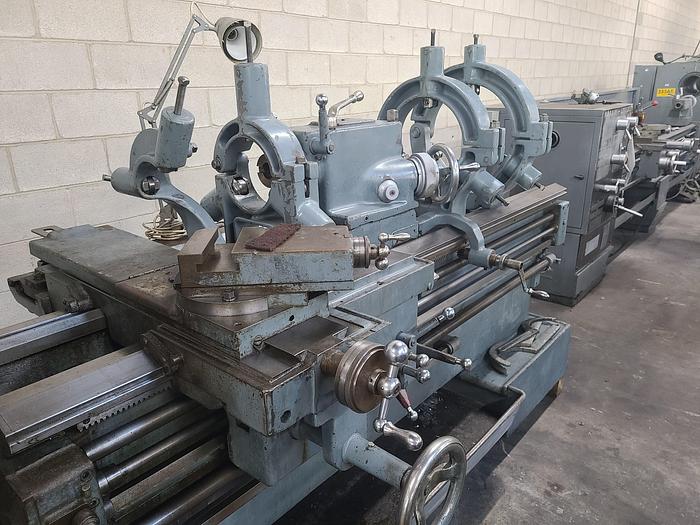

7" Roller Type Steady Rest

Follower Rest

Quick Change Tool Post

Removable Chip Pan

Hard Replaceable Bed Ways, Very Good Condition

Thread Chasing Dial

Inch Graduated Dials on Cross Slide and Top Components

NO Bed Support for Extended Operation

Missing (1) Bed Clamp

Coolant Pump, Wired for 3 Phase, 60 Hz, 230/460 Volts

15 HP Spindle Motor, Wired for 3 Phase, 60 Hz, 230/460 Volts

Overall Size, Closed for Shipping:  148" LR x 70" FB x 70" High
