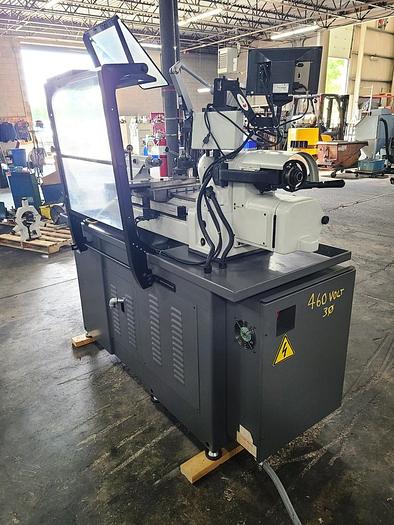

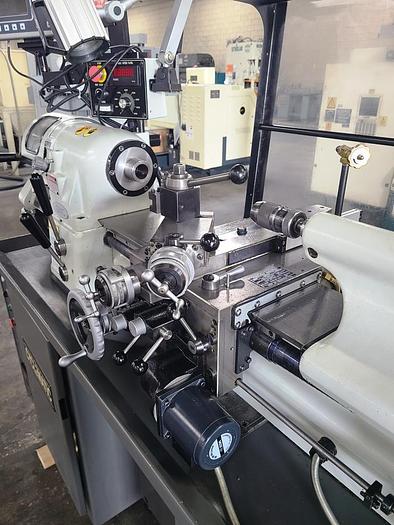

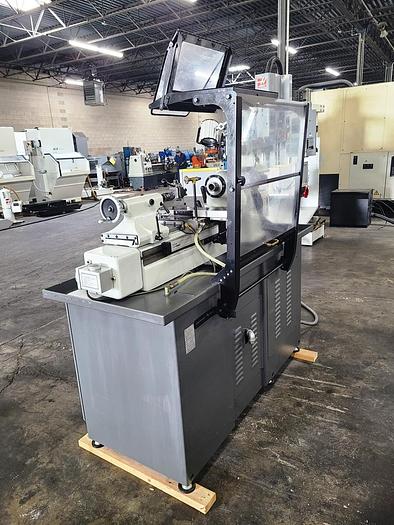

CYCLEMATIC TOOL ROOM LATHE

CYCLEMATIC TOOL ROOM LATHE

PRICE:  Loaded on Truck, Our Warehouse, York, PA …………… $13,500.00

HMC Stock # 24039-P

Machine Serial No.:  9810972

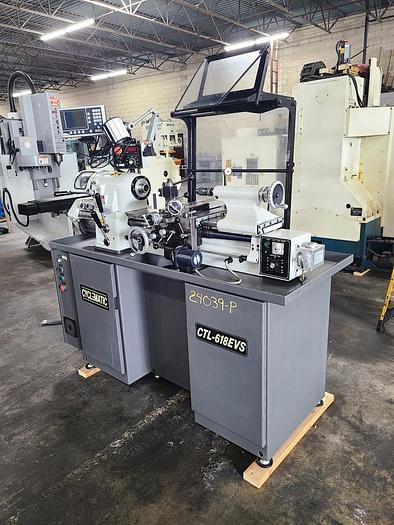

Machine Model No.:  CTL-618EVS

New Date:  2009

Spindle Capacity with Jaw Chucks:  5" (127 mm)

Spindle Capacity with Expanding Collets:  3" (76 mm)

Spindle Capacity with Round 5C Collets:  1-1/6" (27 mm)

Spindle Capacity with Step Chucks:  1-1/16" to 6" (27 to 152.4 mm)

Spindle Nose Diameter:  2.189" (55.6 mm)

Spindle Nose ID/OD:  5C (10")/4" Taper

Variable Spindle Speeds:  0 to 4000 RPM

Hole Through Spindle:  1-1/4" (31.75 mm)

Distance Between Center:  18" (457 mm)

Swing Over Bed:  11" (280 mm)

Swing Over Carriage:  9" (228.6 mm)

Swing Over Cross Slide:  6" (152.4 mm)

Carriage Power Feed Range:  5/16" to 7" (8 to 178 mm)

Cross Slide Power Feed Range:  3/16" to 4" (5 to 102 mm)

(36) English Threads:  11 to 108 TPI

(36) Metric Threads:  1.1 to .675 mm

Leadscrew Diameter:  1": to 8 TPI (25.4 mm)

Cross Slide Travel:  6" (152.4 mm)

Quick Action Compound Slide Travel:  0.1" (2.5 mm)

Compound Slide Travel:  3" (76 mm)

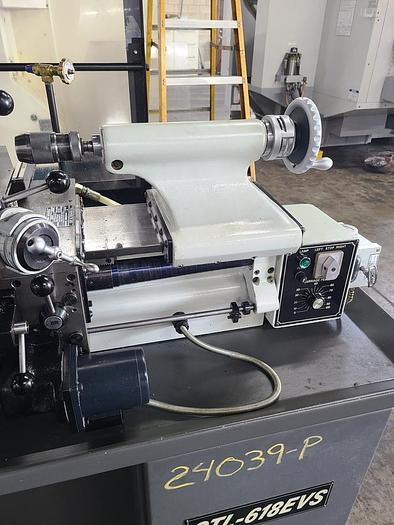

Tailstock Spindle Diameter:  1.358" (34.5 mm)

Tailstock Spindle Taper:  #2 MT

Tailstock Spindle Travel:  3-3/4" (95 mm)

EQUIPPED WITH:

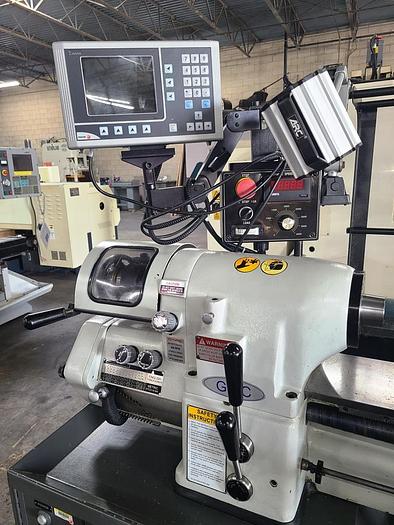

Fagor Digital Read Out

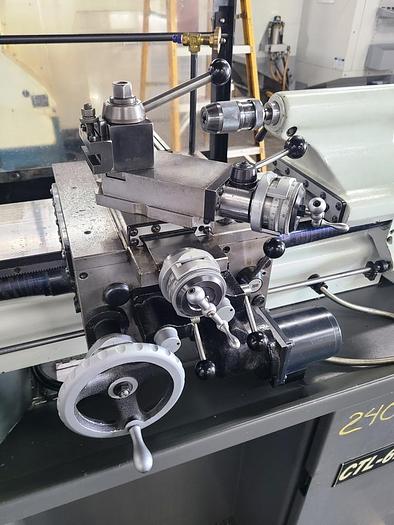

Quick Change Tool Post

Inch/Metric Dials

Rear Chip Guard

Assorted 5C Collets

Inch/Metric Gear Banjo

Steady Rest

Follower Rest

Work Light

Manual

One Shot Lube

Coolant

1/8 HP Coolant Pump Motor, Wired for 3 Phase, 220 Volts

5 HP Main Motor, Wired for 3 Phase 60 Cycle 440 Volts

Overall Size:  76" L-R x 36" F-B x 74" High x 2,200 Lbs.
