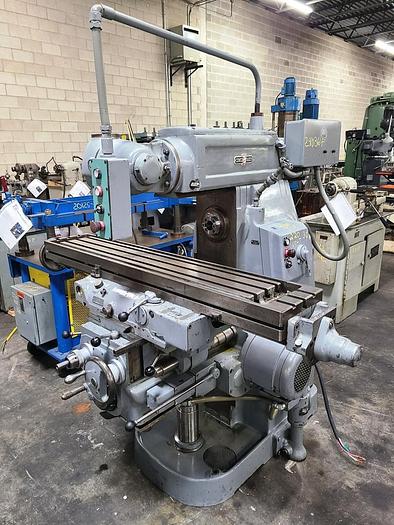

CINCINNATI HORIZONTAL / VERTICAL MILLING MACINE

CINCINNATI HORIZONTAL / VERTICAL MILLING MACINE

PRICE:  Loaded on Truck, Our Warehouse, York, PA …… $9,500.00

HMC Stock # 24036-P

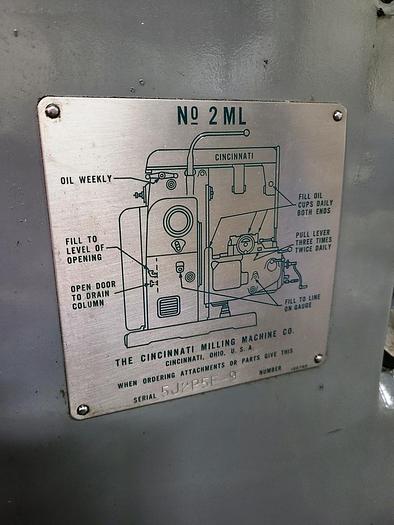

Machine Serial No.:  5J2P5E-9

Machine Model No.:  NO. 2 ML

New Date:  1957

Table Size:  54" x 9"

T Slots:  (3) x 11/16"

Distance Between T Slots:  2-5/16"

Table Longitudinal Travel:  28"

Table Cross Travel:  10"

Table Vertical Travel:  16-1/2"

Centerline of Spindle to Top of Table:  0" Minimum to 16-1/2" Maximum

Spindle Taper:  40 NS

Spindle Speeds:  25 to 1500 RPM

Feeds:  (16)

     Longitudinal and Cross:  1/4" to 30" per Minute

     Vertical:  1/8" x 15" per Minute

Power Rapid Traverse:

     Longitudinal and Cross:  150" Per Minute

     Vertical:  75" per Minute

EQUIPPED WITH:

Independent Overarm Spindle (IOS)

Taper in Head: 40 NS

Spindle Speeds:  (8) 100 to 1530 RPM

Universal Milling Head (NO Quill Feed)

2 HP Motor

Rear/Side Controls

Conventional or Climb Milling

Rapids

Lubrication System

Base Mounted Coolant Pump

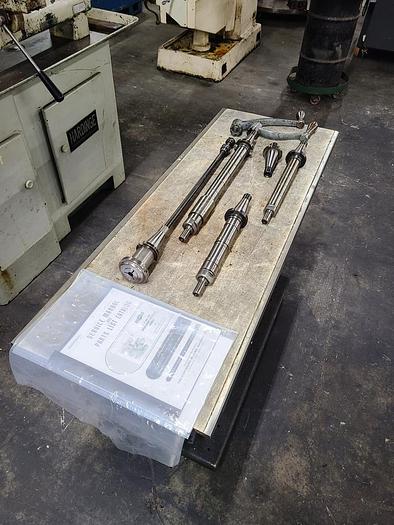

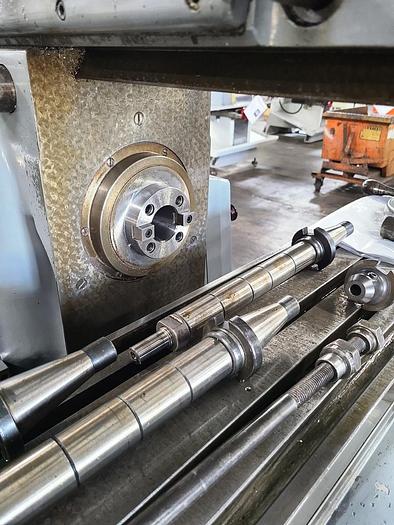

Assorted 40 Taper Arbors

All Soft Scraped Ways in VERY GOOD Condition

Spindle Tapers in Excellent Condition

VERY GOOD Overall Running Condition

No Automatic Table Cycles on This Mill

Missing (1) Table Feed Trip Dog

3 HP Main Motor

Wired for 3 Phase, 60 Cycle, 220 Volts

Overall Size:  70" LR x 70" FB x 77" High x 4,100 Lbs.
