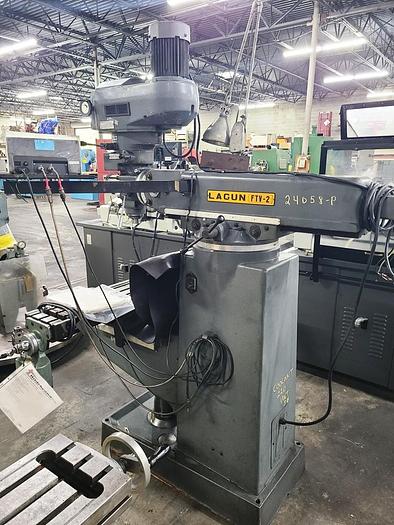

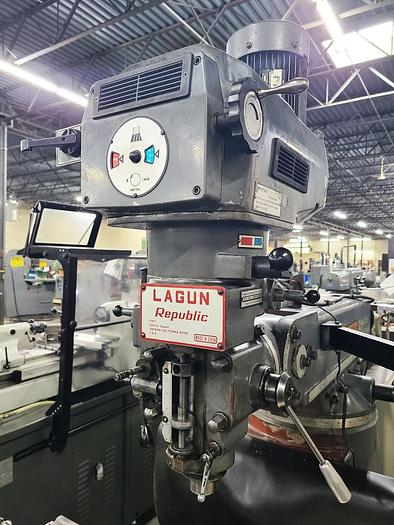

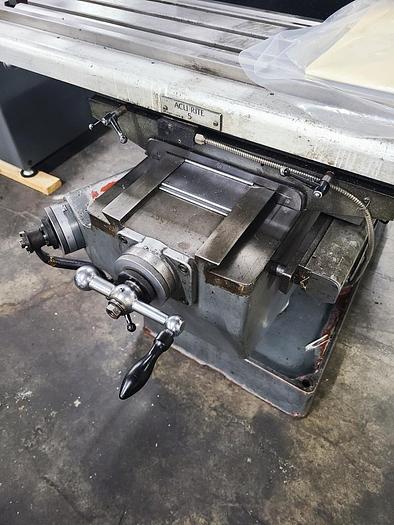

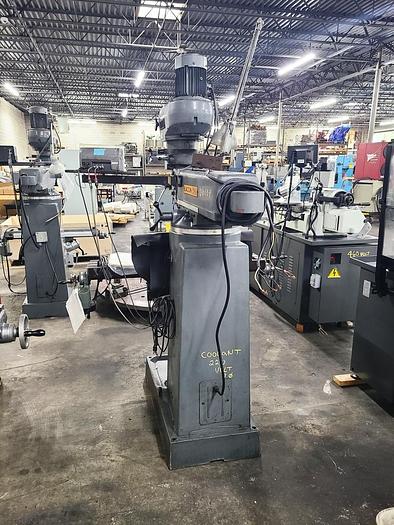

LAGUN VERTICAL MILLING MACHINE

LAGUN VERTICAL MILLING MACHINE

PRICE:  Loaded on Truck, Our Warehouse, York, PA …… $5,950.00

HMC Stock # 24058-P

Machine Serial No.:  SE-16707

Machine Model No.:  FTV-2

New Date:  Unknown

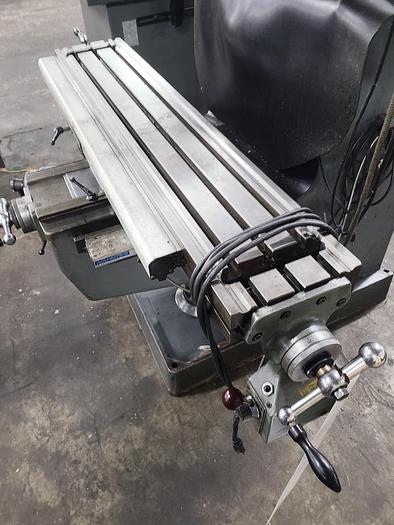

Table Size:  9" x 48"

Variable Spindle Speeds:  58 to 4200 RPM

Longitudinal Table Travel:  35"

Saddle Travel:  16"

Knee Vertical Travel:  16"

Ram Travel:  22"

Quill Diameter:  3-3/8"

Quill Travel:  5" Manual or Power Feed

(3) Quill Feeds:  .0015, .003 & .006

Spindle Taper:  R8

Manual Collet and Draw Bar

Soft Knee Ways (Fair Condition)

Servo Power Feed to Table

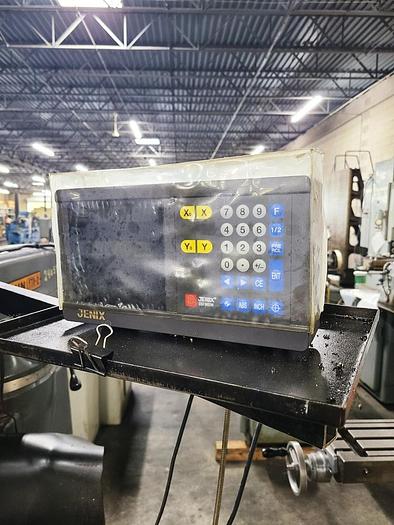

2-Axis Jenix Digital Readout

One Shot Lubrication

Work Light

3 HP Motor, Wired 3 Phase, 60 Cycle, 220-440 Volts

Overall Size:  60" LR x 70" FB x 86" H x 2,850 Lbs.
