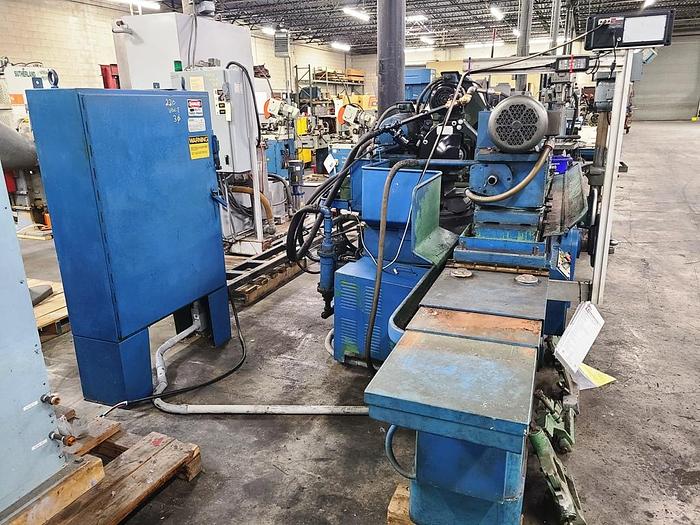

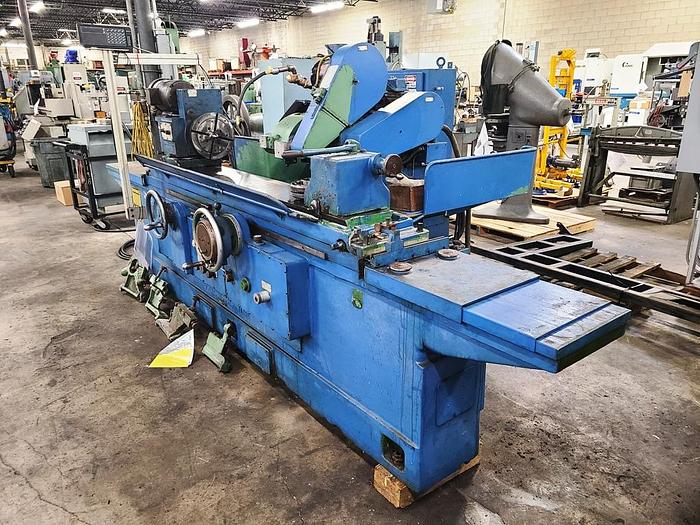

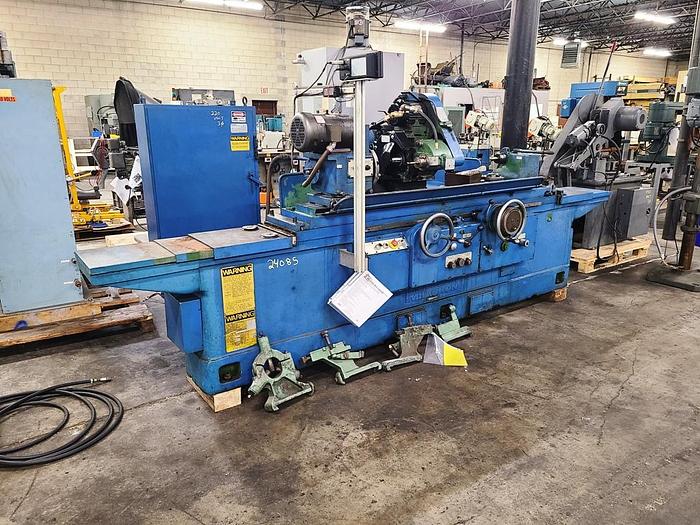

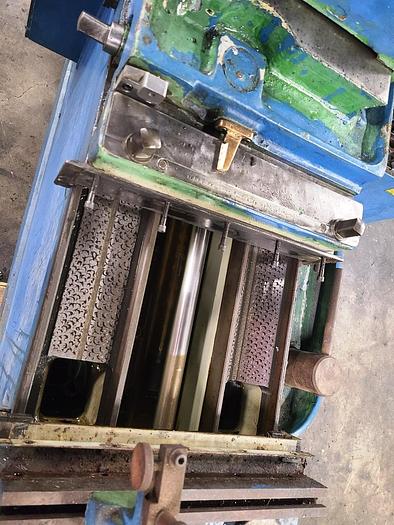

14" X 48" CINCINNATI UNIVERSAL CYLINDRICAL GRINDER

14" X 48" CINCINNATI UNIVERSAL CYLINDRICAL GRINDER

PRICE:  Loaded on Truck, Our Warehouse, York, PA …… $14,500.00

HMC Stock # 24085

Machine Serial No.:  353213E80-0001

Machine Model No.: 14 x 48 Universal

New Date:  1980

SPECIFICATIONS

Capacity:  14" x 48"

Maximum Swing Over Table:  14-15/16"

Maximum Dia. Machine Will Grind with Full Size Wheel:  14-15/16"

Minimum Dia. Machine Will Grind with Either Full Size or Worn Out Wheel:  0

Nominal Distance Between Centers:  48"

Distance from Floor to Centers:  42-3/8"

Swivel Table Graduated to an Angle:

  Toward Wheelhead:  9°

  Away from Wheelhead:  2°

Swivel Table Graduated to Taper Per Foot:

  Toward Wheelhead:  3-3/4"

  Away from Wheelhead:  1-1/4"

Floor Space Required:  72-3/4" x 185"

Approx. Net Weight with All Motors:  9,900 Lbs.

GRINDING WHEELHEAD

  Swivel Range:

     Lower Swivel, Right and Left:  90°

     Upper Swivel, Right and Left:  30°

  Grinding Wheels Regularly Supplied (Dia. x Face x Hole):

     14" x 1-1/2" x 5"

     14" x 1" x 5"

CROSS FEED:

  Automatic Infeed at Table Reversal (Dia. Reduction:

     Low:  .0002" to .005", High:  .0005" to .0125"

  Pick Feed Selections:

     Right End Only, Left End Only:  Yes

     Right and Left Ends:  Yes

  Wheelhead Movement Per Turn of Crossfeed Handwheel:

     Low:  .050", High:  .250"

  Minimum Infeed Increment in Terms of Dia. Reduction:  .000050"

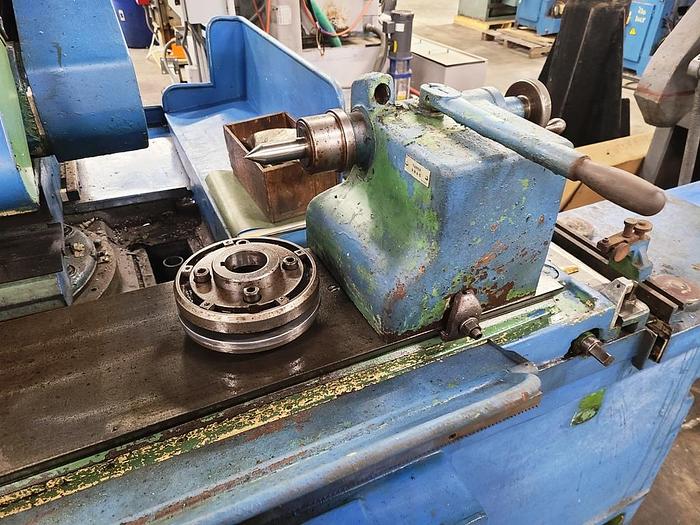

HEADSTOCK AND FOOTSTOCK:

  Taper Hole in Headstock and Footstock Spindles:  No. 9 B & S

  Number of Work Rotation Speeds:  Infinite

  Range of Work Rotation Speeds:  50 to 500 RPM

     (Footstock Center Retraction by Hand Lever)

  Headstock Spindle Nose, American Lathe Standard:  5"

  Headstock Swivel:

     Toward Wheelhead:  90°

     Away from Wheelhead:  30°

TABLE TRAVERSE:

  Number of Traverse Speeds:  Infinite

  Range of Table Traverse Speeds:  3 to 220 IPM

  Minimum Movement Required to Reverse Table:  3/32"

  Accuracy of Table Reversal at All Traverse Rates:  .004"

  Independent Right-Hand and Left-Hand Tarry Adjustment, Seconds:  0 to 5

  Mechanical Hand Table Traverse per Revolution of Handwheel:

     Rapid:  15/16", Slow:  0.2"

POWER REQUIREMENTS (ELECTRICAL EQUIPMENT INCLUDED WITH MACHINE):

  Wheelhead Motor:  3 HP

  Hydraulic Pump Motor:  1 HP

  Headstock Motor:  1 HP

  Internal Grinding Attachment Motor:  1 HP

  Cutting Fluid Pump Motor:  1/4 HP

  Wired for 3 Phase, 60 Cycle, 220 Volts

EQUIPPED WITH:

  Swing Down Internal Grinding with Cartridge Type Spindle

  Single Axis Digital Read Out Scale for Infeed on Grinding Head

  Left and Right Table Tarry

  (3) Steady Rests

DIMENSIONS:

 Machine:  168" LR x 80" FB x 72" High

 Control Cabinet:  40" LR x 16" FB x 70" High
