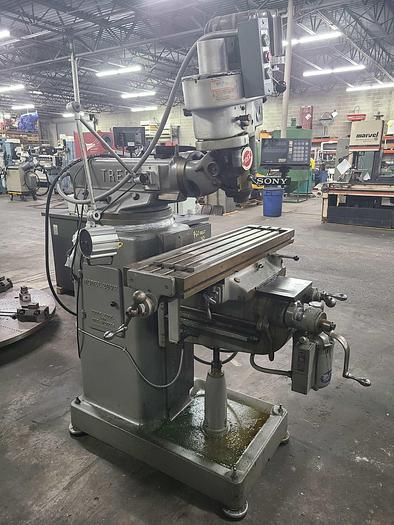

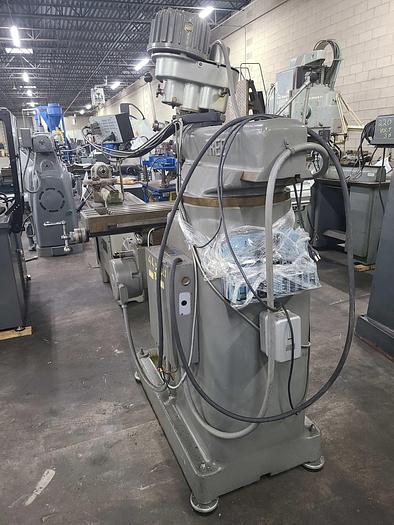

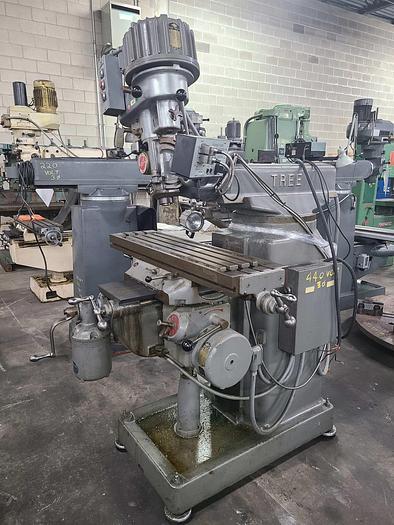

TREE VERTICAL MILLING MACHINE

TREE VERTICAL MILLING MACHINE

PRICE:  Loaded on Truck, Our Warehouse, York, PA …… $1,000.00 As Is

HMC Stock # 24087-P

Machine Serial No.: Unknown

Machine Model No.: 2UVR

Table Size: 42" x 10-1/2"

Variable Speed: 60 – 3300 RPM

Gear Table Feed: (5) Feeds 3/4, 1-3/8, 2-3/8, 4, 7 Inches per Minute

Sony Digital Read Out

Spindle Taper: TBD

Uses Collets

Small Selection of Collets Come with Mill

Work Light

Soft Saddle Ways in Fair Condition

1.5 HP Main Motor

Wired for 3 Phase, 60 Cycle, 440 Volts

Overall Size: 60" LR x 72" FB x 72" High

Inspection Notes Please Read

440 Volt, 3 Phase. Variable speed spindle sounds good but is forward only NO reverse. Quill feed works, but is missing the spindle nut and whatever locks the collets to the spindle to hold tools. The tools are not held by a drawbar. All table feeds and rapid works, saddle is hand feed ONLY. The knee rapid motor runs but does not turn the knee screw, unknown as to why. The Sony Millman 2 Axis DRO with .0002 resolution works. Other repairs might be needed as this was not fully gone through.  Machine is offered AS IS condition 10-9-24.
