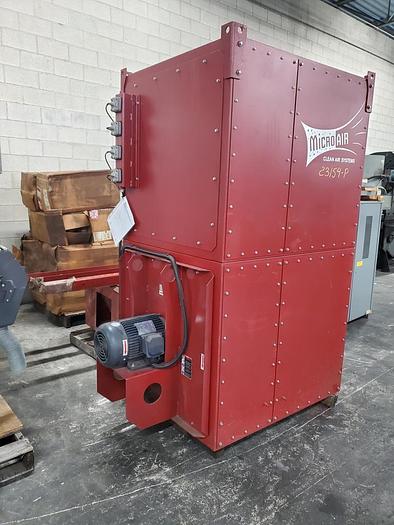

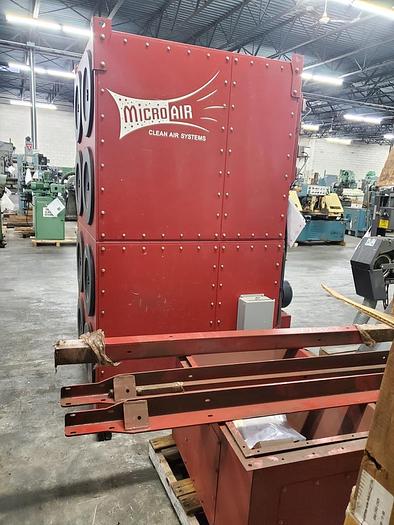

MICRO AIR DUST COLLECTOR

MICRO AIR DUST COLLECTOR

PRICE:  Loaded on Truck, Our Warehouse, York, PA … $8,950.00

HMC Stock # 23154-P

Machine Serial No.:  PN-P3753

Machine Model No.:  RP8

New Date: 2005

Purchased New by Previous Owner and Never Installed.

Currently Disassembled.

Construction: 12-Gauge Steel

Filters: (8) Cartridge Type Filters

Original New Filters are with the Unit. Appear to be in Good Shape but Not Guaranteed Due to the Amount of Time They Have Been in Storage.

Filter Area: 1920 Square Feet of Media

Air Consumption: 2.7 SCFM at 80 PSI

Cleaning Frequency: Between 5 and 30 Seconds

After Pulse System: Standard Equipment Designed to Clean Filters After Unit is Turned Off. Time Can be Adjusted Between 0 and 15 Minutes.

Filter Access: End Filter Caps

Air Volume: 2,000 – 5,000 CFM Maximum

Fan: Direct Drive, High Static, Backward Inclined, Plug Fan

Static Range: 0" – 8.5" W.C.

Hopper: Standard with 10" Outlet, 14-Gauge Mild Steel

Wind Load Rating: 100 MPH

Pressure Rating of Cabinet: +/- 20" W.C.

EQUIPPED WITH:

Roto Pulse Cleaning System for Filters

Wall Mounted Control

Top Mounted Inlet Plenum

Legs

10 HP Main Motor

Wired for 3 Phase, 60 Cycle, 208-230/460 Volts

OVERALL SIZES (For Shipping Purposes):

Main Cabinet:  65" LR x 47" FB x 87" High

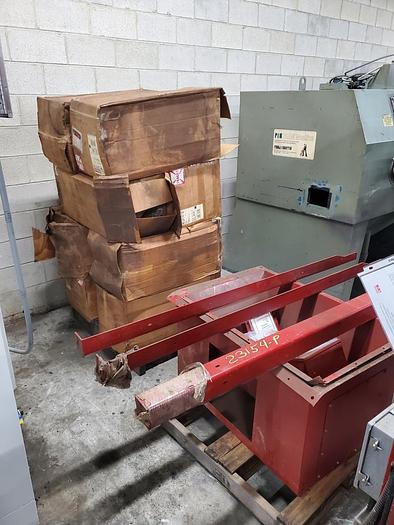

Legs and Catch Pan:  72" LR x 42" FB x 31" High

Skid of Filters:  40" LR x 40" FB x 70" High

Overall Weight: 2,000 Lbs.

Assembled Height Per Factory Information:  148.5" High (That Does Not Include the Optional Plenum with This Unit That Will Add 22" of Height)
