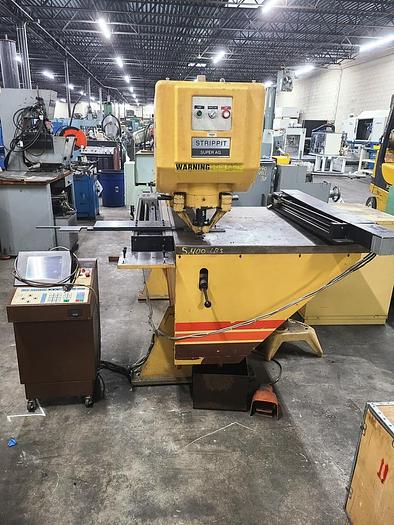

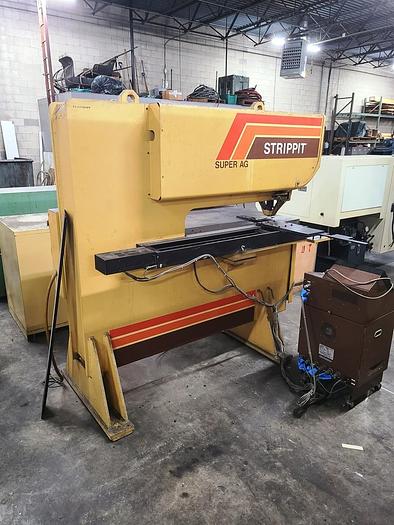

STRIPPIT SUPER 30/30 FABRICATOR MECHANICAL PUNCH

STRIPPIT SUPER 30/30 FABRICATOR MECHANICAL PUNCH

PRICE:  Loaded on Truck, Our Warehouse, York, PA …… $4,500.00

HMC Stock # 24100-P

Machine Serial No.: 2211110488

Machine Model No.: Super 30/30 AG

New Date: 1988

Working Throat Capacity: 30"

Rated Tonnage Capacity: 30 Ton

Center Line of Punch to Rear Frame: 34"

Maximum Hole Diameter: 3-1/2" Dia. in 12 Ga.

Maximum Material Thickness: 1" Dia. in 1/4"

Working Sheet Size: 30" x 30"

Working Area with Gauging Stops: 30" x 30"

Stroke Length: 5/8"

Hits Per Minute: 165

Vertical Table Adjustment: 2-1/4" Manually

Traverse Movement of Material Holder Bar: 27" X, 29-3/4" Y

Template Work Area: 32" X x 30" Y

Left Side of Table Work Area: 40" X x 43-3/4" Y

EQUIPPED WITH:

Designed for Use with 1-1/4" Dia. and 3-1/2" Dia. Tooling

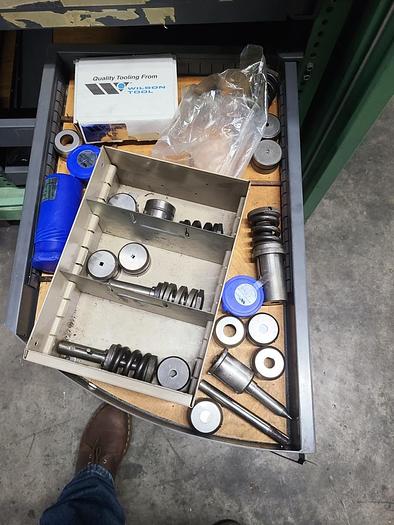

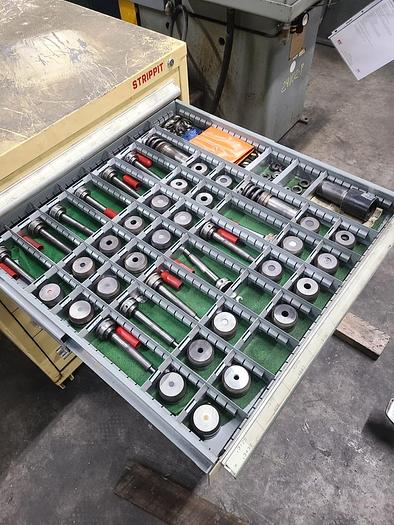

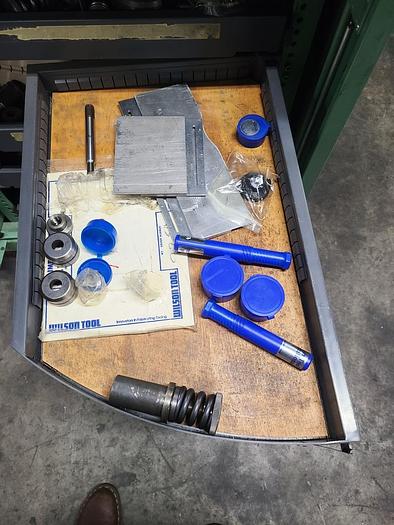

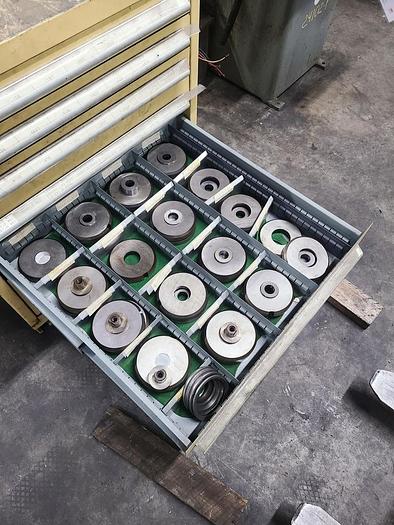

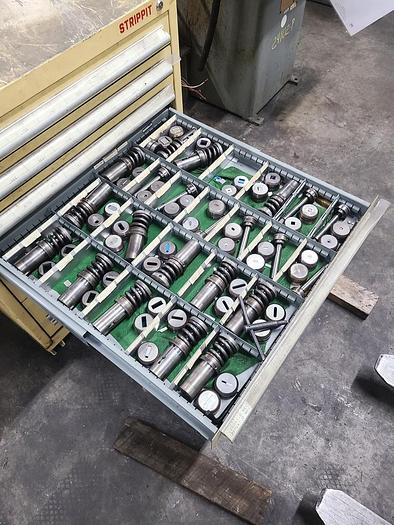

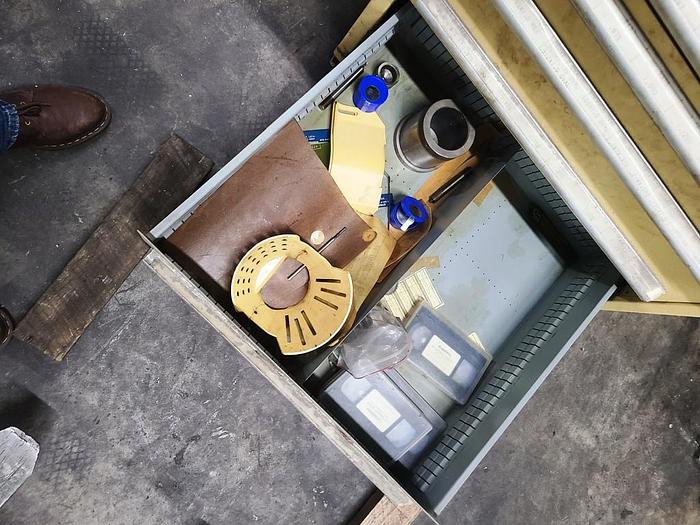

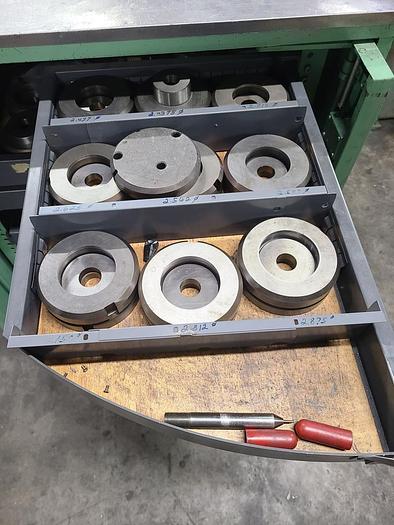

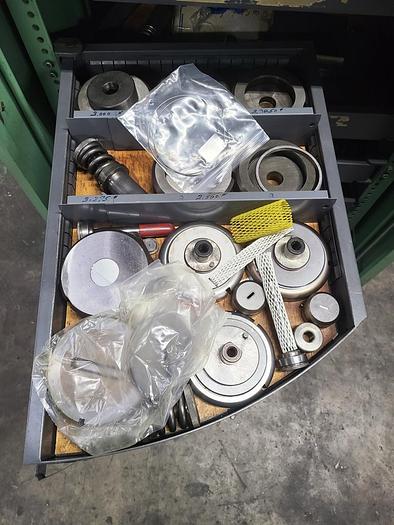

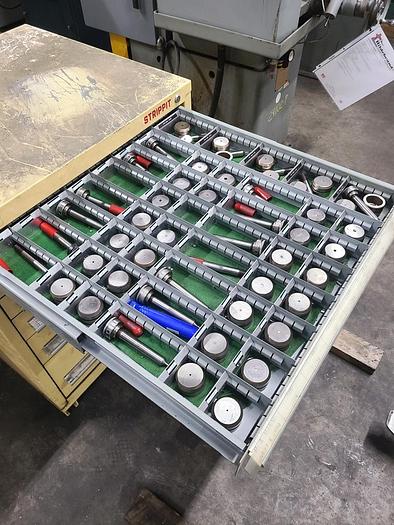

(2) Cabinets Full of Assorted Tooling

Foot Pedal

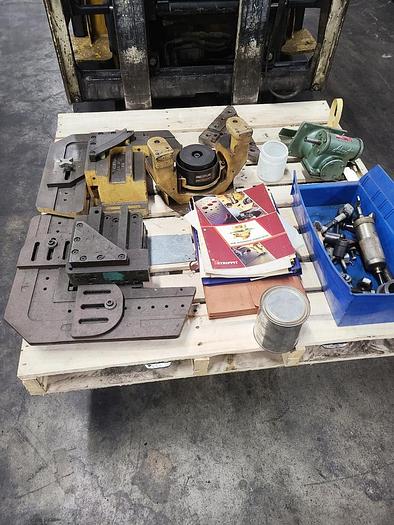

(2) Corner Notching Attachments

Strippit Punch Grinder for Sharpening Tooling

Wired for 3 Phase, 60 Cycle, 440 Volts

OVERALL SIZE:

Machine: 60" LR x 72" FB x 70" High x 5,400 Lbs.

Cabinet: 30" LR x 30" FB x 36" High

Cabinet: 35" LR x 21" FB x 42" High

Skid: 40" LR x 40" FB x 30" High

This machine was originally equipped with an NC sheet positioning system.  The system is attached to the machine, but it is not fully functional.  That system is not guaranteed to work.  The punch portion of the machine has been cycled and works fine.  The machine would be well suited to be used as a manual punch and the new owner can fabricate whatever table or sheet support system they needed for the left side of the machine.
