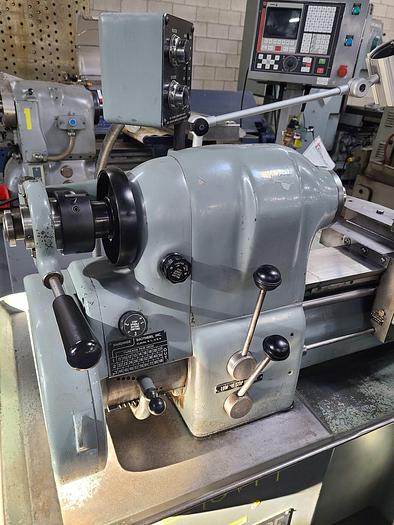

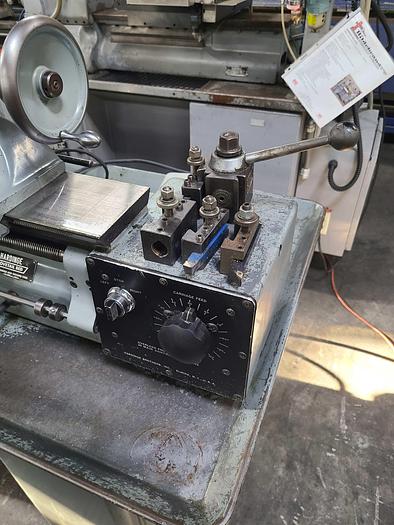

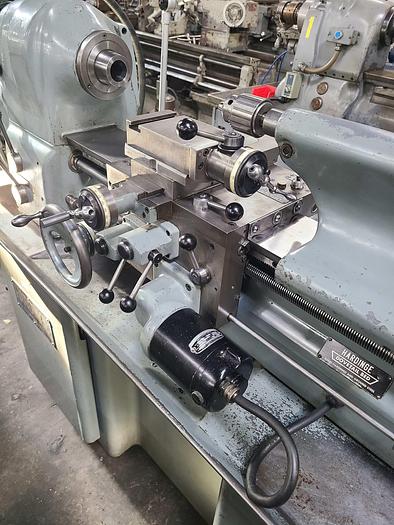

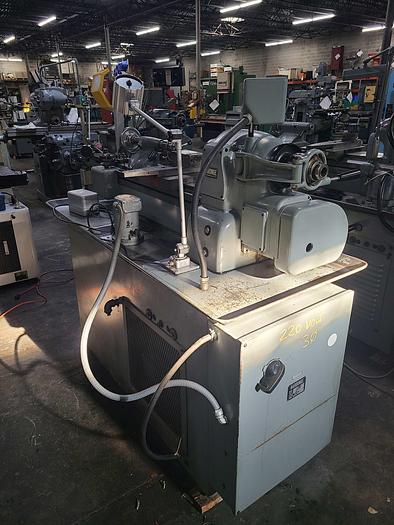

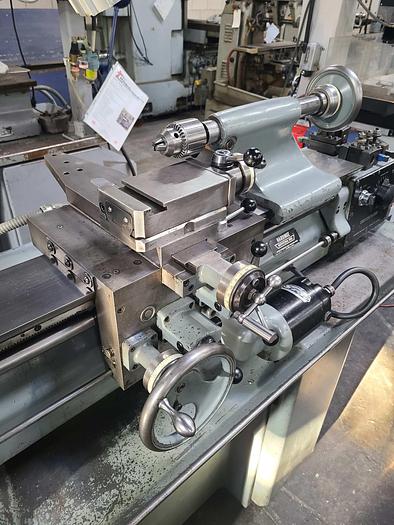

HARDINGE HLVH TOOL ROOM LATHE

HARDINGE HLVH TOOL ROOM LATHE

PRICE:  Loaded on Truck, Our Warehouse, York, PA …… $4,950.00

HMC Stock # 24094-P

Machine Serial No.: HLVH-BK2767-4

Machine Model No.: HLVH-BK

New Date: 1960

Swing Over Bed: 11"

Swing Over Carriage Edge: 9"

Swing Over Cross Slide: 6-1/2"

Distance Between Centers: 18"

Spindle Mount: Hardinge Taper

Variable Spindle Speeds: 125 to 3000 RPM

Spindle Thru Hole: 1-1/4" Diameter

Variable Feed Rates, Longitudinal: 5/16 to 7 IPM

Variable Feed Rates, Cross Feed: 3/16 to 4 IPM

(27) English Threads: 11 to 108 TPI

Tailstock Quill Taper: #3 Morse

Quill Travel: 3-5/8"

EQUIPPED WITH:

Inch Graduated Dials

Leadscrew with Quick Change Gear Box - Inch Only

No End Quadrant Gears

Controls for: Forward/Reverse and High/Low

Carriage Feed Kick Out Stops

Coolant

One Shot Lube

Hard Bed Ways

Cabinet Base

Assorted Collets

Work Light

1 HP Main Motor, Wired for 3 Phase, 60 Cycle, 220 Volts

Overall Size: 69" L-R x 31" F-B x 72" H
