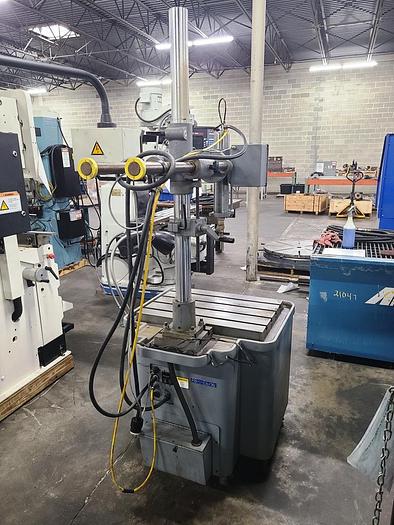

ELECTRO-ARC METAL DISINTEGRATOR

ELECTRO-ARC METAL DISINTEGRATOR

PRICE:  Loaded on Truck, Our Warehouse, York, PA …… $4,950.00

HMC Stock # 24088-P

Machine Serial No.: 12059

Machine Model No.: 2DBQT

Table Size Overall with Coolant Trough: 31" L-R x 23-1/2" F-B

Table Size Working Surface: 26" L-R x 18-1/4" F-B

Table Top has (4) 5/8" T-Slots on 4" Centers

Distance from Table Top to Electrode Holder Nose: 34" Max.

Travel of Electrode Ram: 9" Max.

Distance Longitudinal Travel Adjustment of Head: 26" Max.

Head Swivels Left or Right 90 Degrees

Bolt on Style Head & Arm Assembly

EQUIPPED WITH:

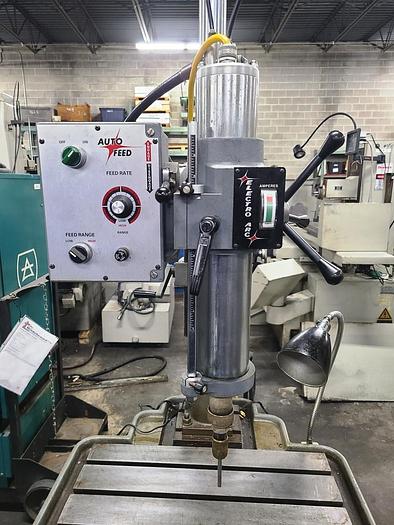

Electro-Arc Solid State Auto Feed

Variable Voltage Control

Variable Stroke Control

Wired Single Phase, 220 Volts

No Electrodes or Electrode Collets

Main Unit is Mounted on Casters for Easy Portability

Overall Dimensions: 31" L-R x 58" F-B x 81" H x 880 Lbs.
