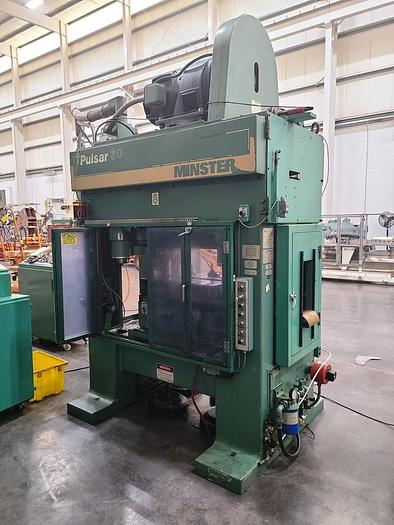

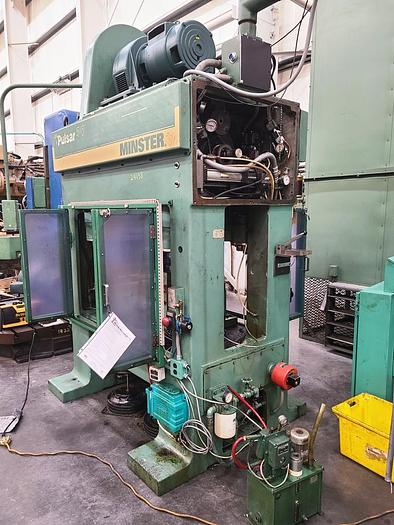

30 TON MINSTER PULSAR STRAIGHT SIDE PRESS

30 TON MINSTER PULSAR STRAIGHT SIDE PRESS

PRICE:  Loaded on Truck, Our Warehouse, York, PA …… $5,500.00 As Is

HMC Stock # 24138

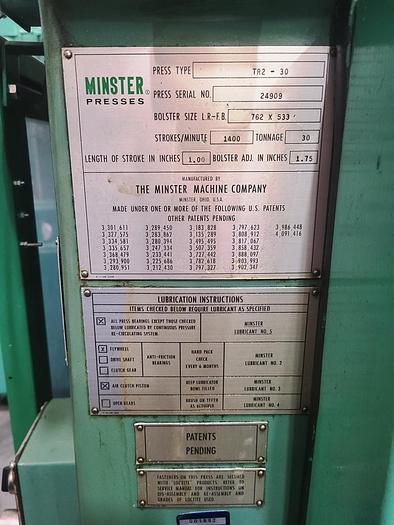

Machine Serial No.:  TR2-30-24909

Machine Model No.:  Model # TR2-30

New:  1981

Capacity:  30 Tons

Stroke:  1"

SPM:  100 to 1400

Max. 800 SPM with 300 Pound Upper Die

Adjustment:  1-1/4" (Power Adjustment with Digital Indicator)

Shut Height:  9"

Bed Area:  30" L-R x 21" F-B

Ram Face:  30" L-R x 12" F-B

Opening in Bolster:  24" L-R x 4" F-B

15-3/8" Wide Windows

Minster Heavy Duty Hydraulic Operated Friction Clutch & Brake

Counterweighted Drive System Provides 100 Degree Dynamic Balance of Slide

Recirculating Oil System

Slide Guided by Six-Post Guiding System

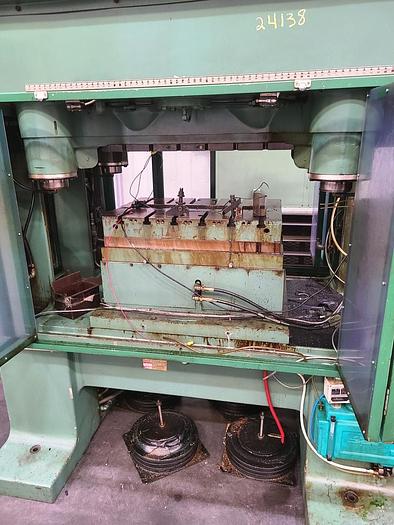

Bolster Plate:  30" L-R x 21" F-B x 3.5" Thick with (7) 11/16" T-Slots

   Running the 21" Width

Upper Die Plate Bolted to Ram:  34-1/2" L-R x 12" F-B x 1-1/8" Thick

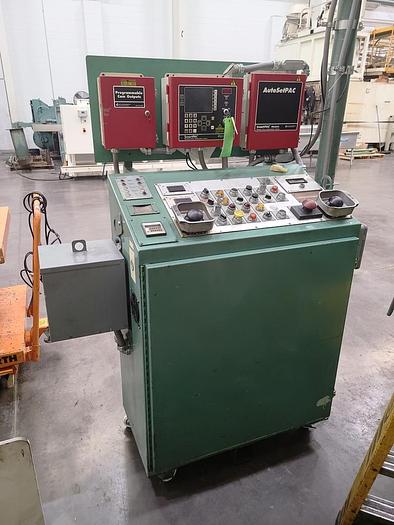

Operator Console with Full Press Controls for:  SPM, Digital Tach,

   Load Meter & Past Preset Counter

Feed Length Digital Display

Smart PAC Wintress Press Controls

(4) 13" Diameter Air Cushion Press Mounting Pads

Manual

25 HP, 3 Phase, 60 Cycle, 230/460 Volt Motor

Press Overall Dimensions:  90" L-R x 55" F-B x 120" H Without Mounting Feet

Operator Console:  41" L-R x 24" F-B x 46" H (89" High Without Motor and Electrics)

Approx. Weight:  20,000 Lb.

Purchased as an idle machine from a connector facility.  Was not able to be seen under power.  Overall mechanical condition looks good, but the machine was only given a cursory inspection.
