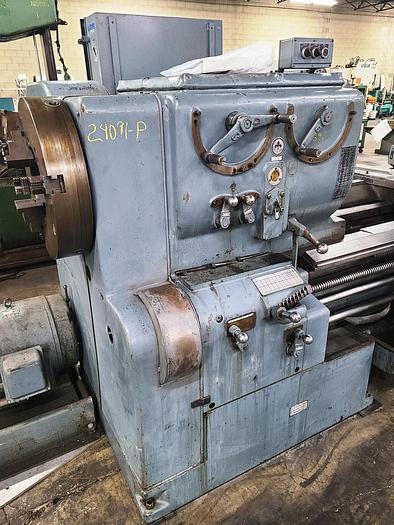

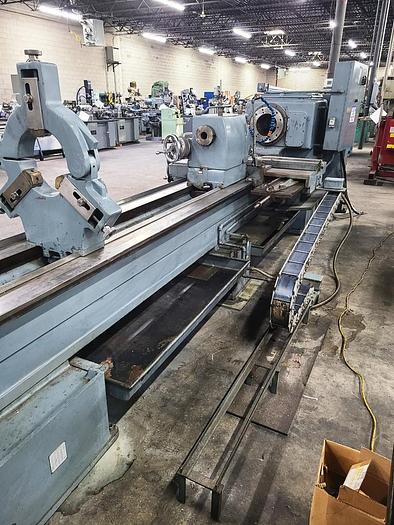

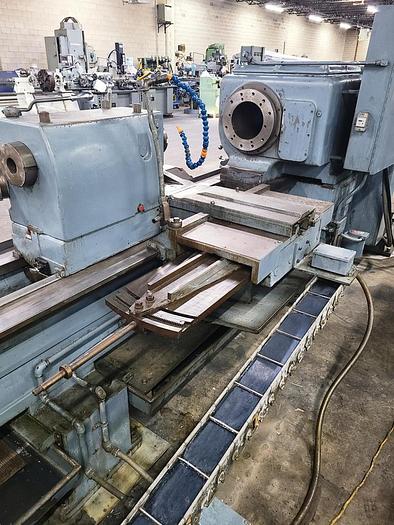

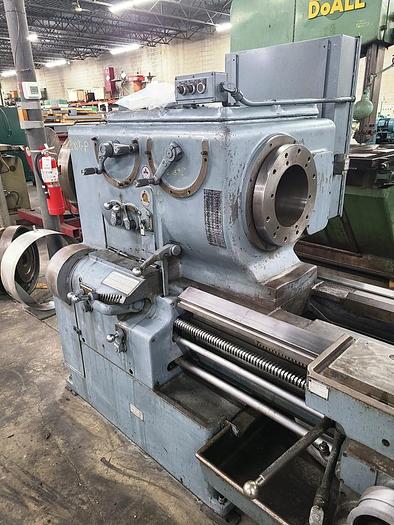

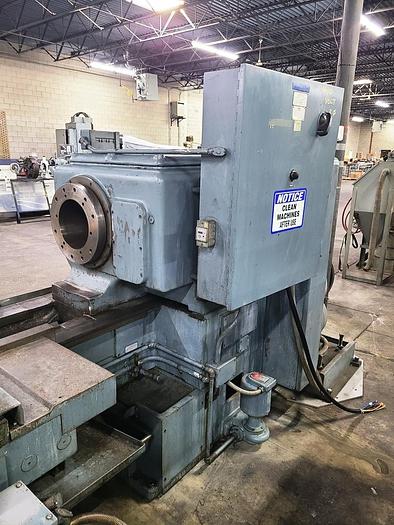

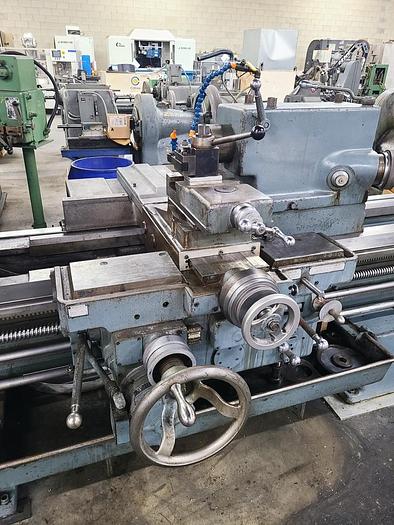

36" X 120" LEBLOND HOLLOW SPINDLE LATHE

36" X 120" LEBLOND HOLLOW SPINDLE LATHE

PRICE:  Loaded on Truck, Our Warehouse, York, PA …… $54,500.00

HMC Stock # 24091-P

Machine Serial No.: 3NFL-1130

Machine Model No.: NF

New Date: 1965

Swing: 36"

Distance Between Centers: 120"

Bed Width: 24"

Overall Bed Length: 144"

(18) Spindle Speeds: 10 – 362 RPM

(60) Feeds: .0045 – .269 Thousandths per Rev

(60) Inch Threads: 1 – 60 Threads Per Inch

Hole Through Spindle: 9-1/4"

Spindle Nose: Uses Flat Back Chucks with Two Different Bolt Hole Diameters for the 3 Jaw and 4 Jaw Chucks. This Does Not Correspond to any Common Design like Long Taper, Short Taper or Camlock.

Taper in Tailstock: #5 Morse

Tailstock Travel: 20"

EQUIPPED WITH:

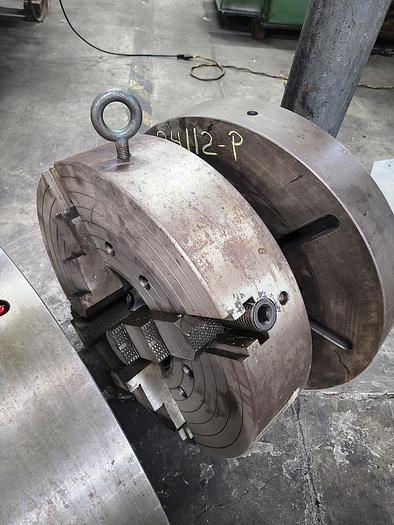

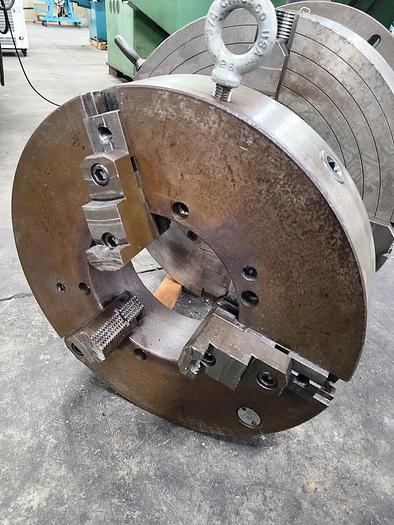

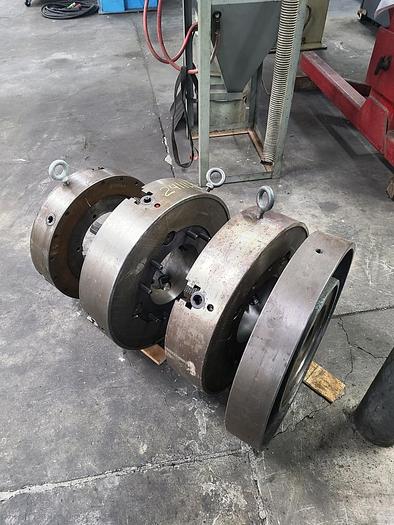

(2) 21" 3 Jaw Chucks with 9-1/4" Holes

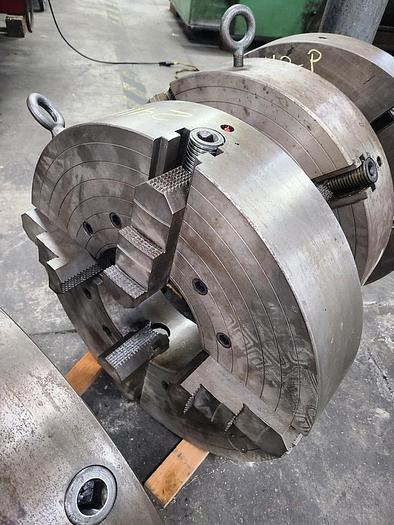

(2) 21" 4 Jaw Chucks with 9-1/4" Holes (Cushman Brand)

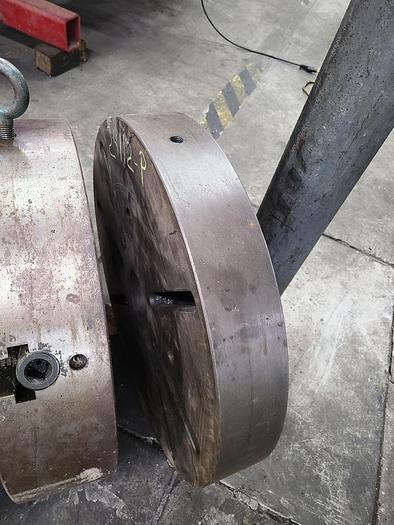

(1) 25" Face Plate

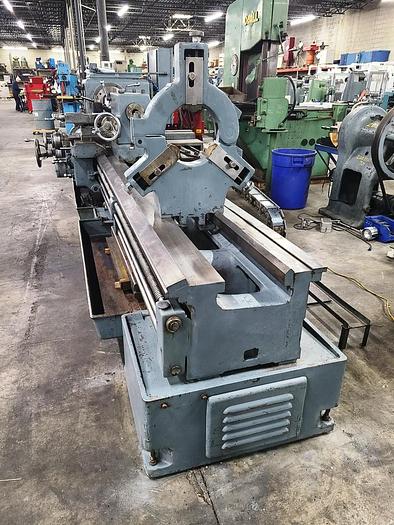

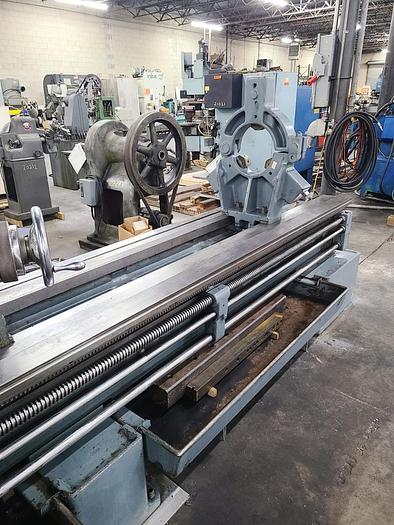

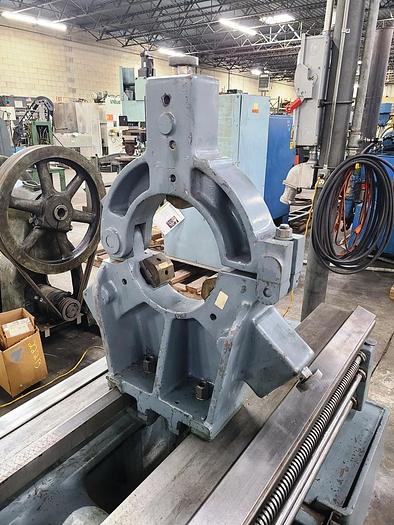

11" Hold Diameter Bronze Bushing Type Steady Rest

Quick Change Tool Post (No Holders)

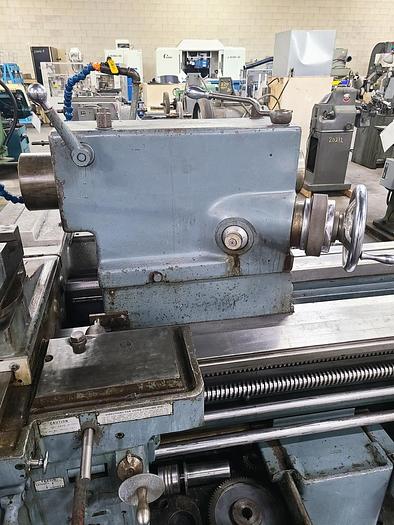

2-Speed Tailstock with Thru Hole

Taper Attachment (Bed Clamp is Missing)

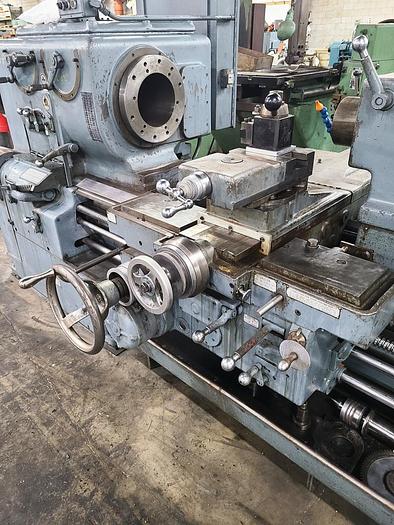

Rapid Traverse to Carriage and Cross Slide

Hard Replaceable Bed Ways in Good Condition

(2) Roll Out Removeable Chip Pans

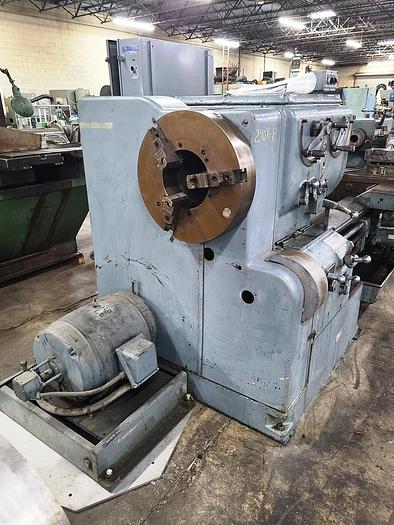

Independent Floor Mounted Main Spindle Motor

20 HP Main Motor

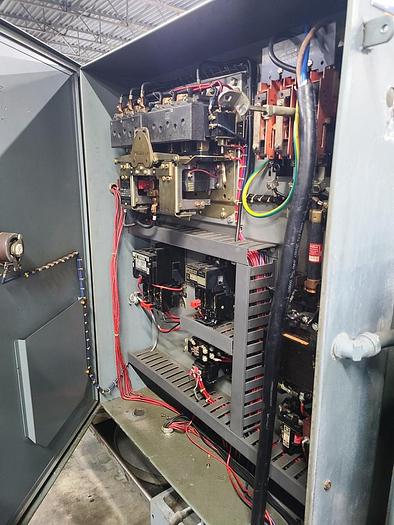

Wired for 3 Phase, 60 Cycle, 220/440 Volts

Currently Wired for 440 Volts

Overall Size: 228" LR x 72" FB x 74" High
