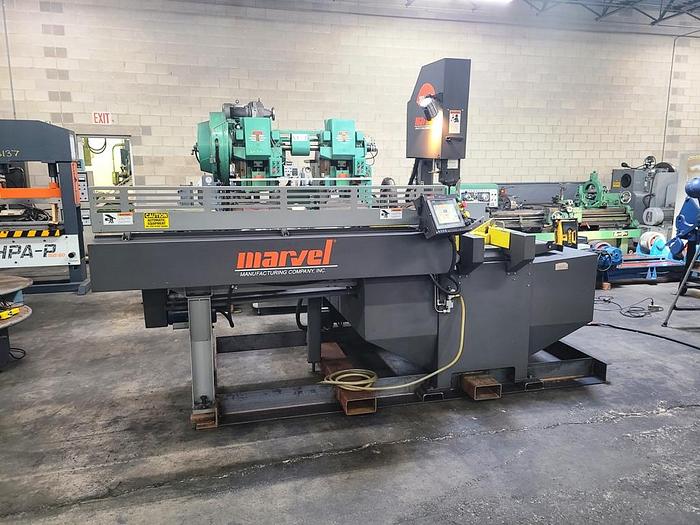

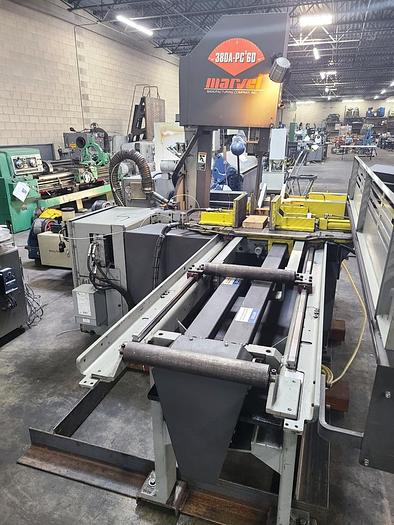

MARVEL VERTICAL BAND SAW

MARVEL VERTICAL BAND SAW

$74,500 (USD)

Available quantity:1

Description

MARVEL VERTICAL BAND SAW

PRICE:  Loaded on Truck, Our Warehouse, York, PA …… $74,500.00



HMC Stock # 24110-P

Machine Serial No.: E380-0427PC3

Machine Model No.: E380-PC3-60

Year: 2018



CAPACITY:

Round: Head In Straight Position

@ 0 Degrees: 15" Diameter

@ 45 Degrees: 14" Positive / 13.25" Negative

@ 60 Degrees: 9.25" Positive / 8" Negative



Round: Head In 3 Degree Cant Position

@ 0 Degrees: 14.5" Diameter

@ 45 Degrees: 13.5" Positive / 12.75" Negative

@ 60 Degrees: 8.75" Positive / 7.75" Negative



Rectangle (W x H): Head In Straight Position

@ 0 Degrees: 15" x 20"

@ 45 Degrees: 15" x 14" Positive / 15" x 13.25" Negative

@ 60 Degrees: 15" x 9.25" Positive / 15" x 8" Negative



Rectangle (W x H) Head In 3 Degree Cant

@ 0 Degrees: 14.5" x 20"

@ 45 Degrees: 14.5" x 13.5" Positive / 14.5" x 12.75" Negative

@ 60 Degrees: 14.5" x 8.75" Positive / 14.5" x 7.75" Negative



Table Load Capacity: 1,000 Pounds

Maximum Vise Opening: 15.25"

Blade Speed: 60 – 400 FPM (Infinitely Variable)

Blade Size: 1.25" x .042" x 192"

Feed Force: 0 – 300 Lbs.

Band Wheel: 16" Diameter



EQUIPPED WITH:

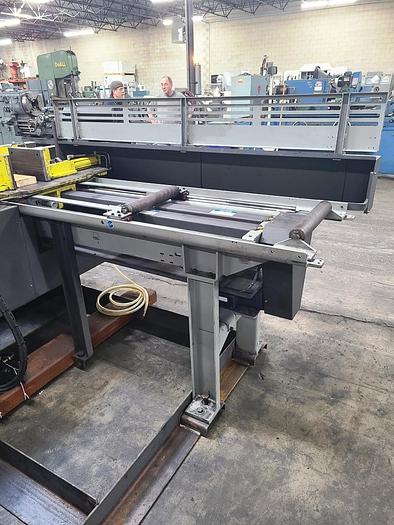

Automatic Bar Feed: The Automatic Bar Feed design features a 48″ stroke length with indexing speeds of up to 70 ft./min., and creep speeds of 33 in./min. The bar feed vise is electrically driven and combines precision double ball screws with preloaded re-circulating ball linear guides, resulting in positioning accuracy of ± .005″ per index. The vise itself is hydraulically clamped to prevent material slippage. Material can also be fed through the machine manually in both directions using the shuttle vise.



0° – 3° Canted Column: Adjustable 0° or 3° forward approach angle, for notching, or increased efficiency in cutting of structural materials. Must specify if 0° or straight column set up is desired as the machines are by default shipped from the factory in 3° Canted Column



Feed Pressure: Direct Force Sensing Electric Ball Screw Feed which combines more consistent feed force with greater control, 0 – 300 lbs. column travels on re-circulating linear ball ways. Feed pressure can be automatically set when material is selected.



Vises: Hydraulic, half stroking with 6.7″ high x 11.4″ wide 60° faceplates.



Jammed Blade Protection: Automatically senses resistance as the column returns and stops to prevent blade damage.



Upper Blade Guide Arm: Hydraulically positioned and locking, travels on linear guides, controlled through PC3 touch screen control.

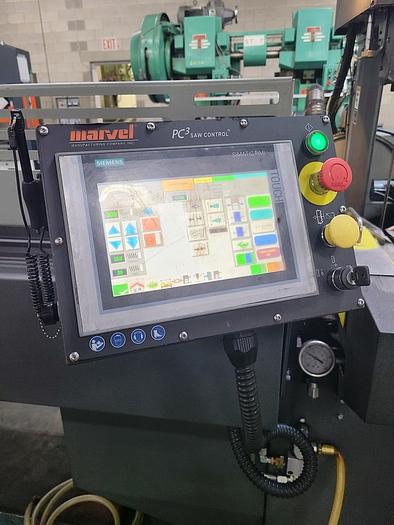

Control: Provides a Programmable Logic Control Unit with an 9″ color, touch screen display. The control features graphical part programming with memory for up to 500 jobs and parts, as well as a material selection chart and customizable material library. Both blade speed and feed force are automatically set according to material type for optimal cutting performance. Job features include Inch/Metric capability, out-of-stock shut down device, a fast cut job option and expanded memory storage using removable media. Also includes Jammed Blade Protection that senses resistance as the column returns and stops to prevent blade damage.



5 HP Main Motor, Wired for 3 Phase, 60 Cycle, 440 Volts

Overall Size: 137" LR x 88" FB x 92" High



Specifications

ManufacturerMarvel
ModelE380-PC3-60
Year2018
ConditionUsed
Serial NumberE380-0427PC3
Stock Number24110
