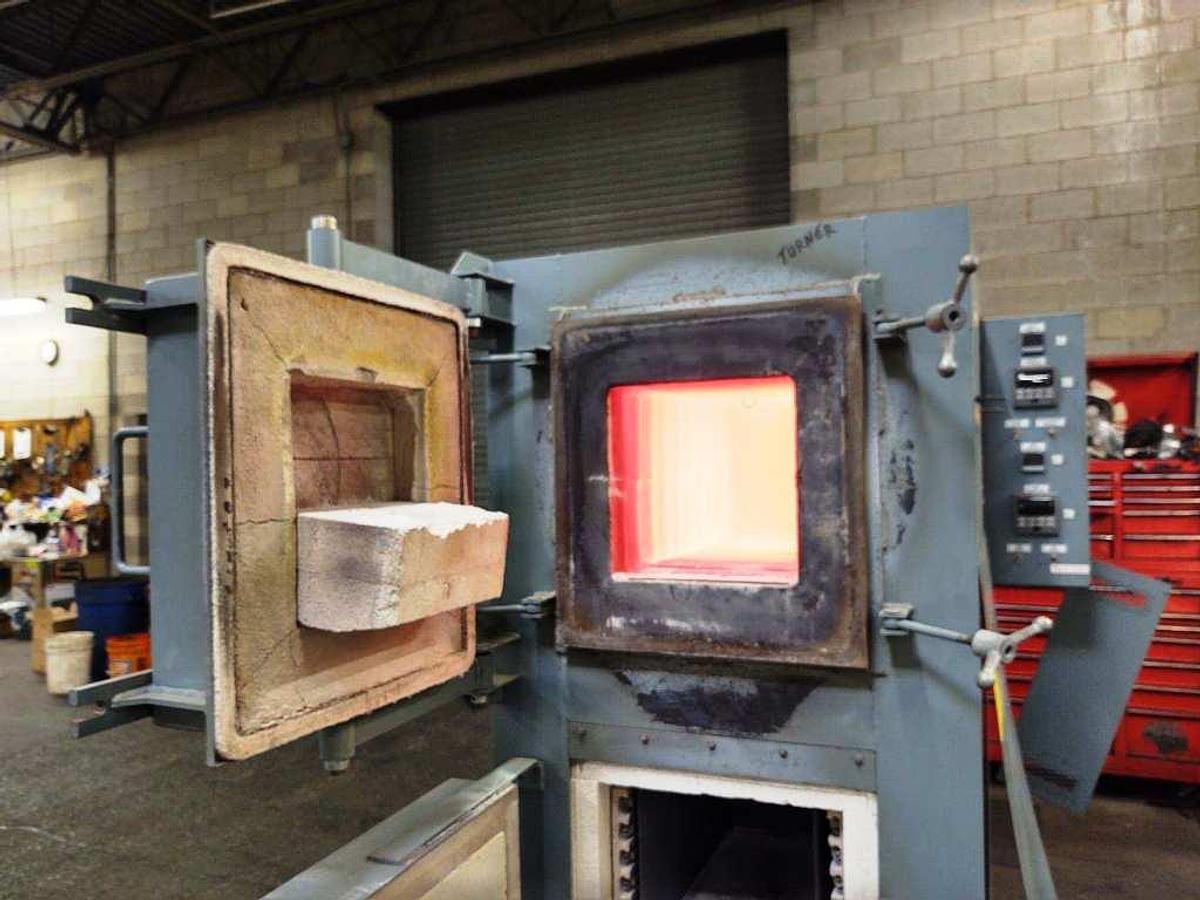

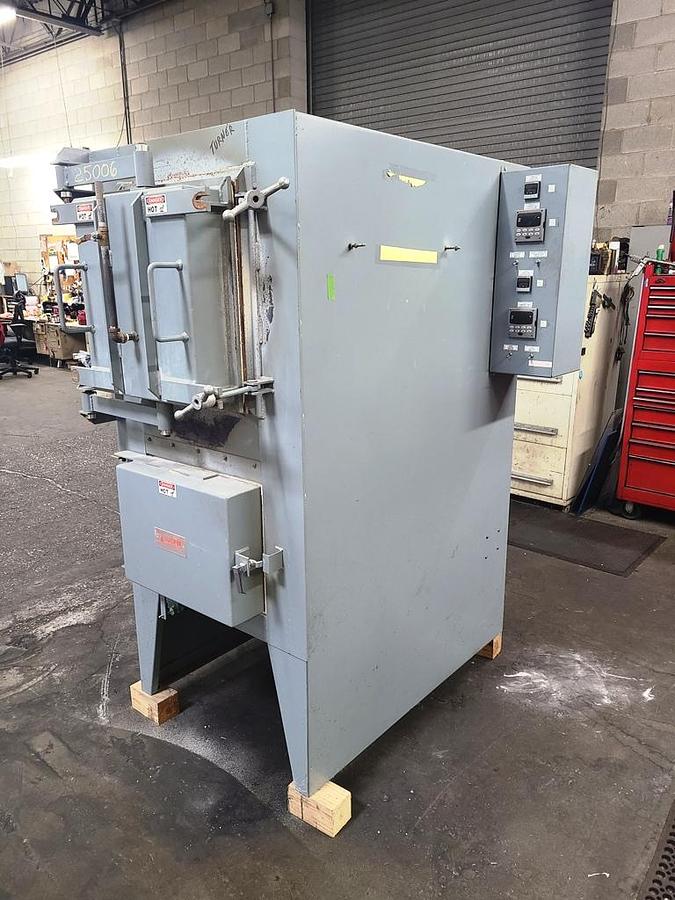

LUCIFER INERT ATMOSPHERE DUAL CHAMBER FURNACE

LUCIFER INERT ATMOSPHERE DUAL CHAMBER FURNACE

PRICE: Loaded on Truck, Our Warehouse, York, PA …… $12,500

HMC Stock # 24006

Machine Serial No.: 8558

Machine Model No.: 82AM-K24

New Date: Unknown

UPPER CHAMBER

Maximum Temperature: 2050 Degrees F

Chamber Size: 11-1/2" LR x 12" High x 24" Deep

LOWER CHAMBER

Maximum Temperature: 1200 Degrees F

Chamber Size: 13 1/2" LR x 12-1/2" x 24” Deep High with Metal Box Insert

EQUIPPED WITH:

Fire Brick Lining for Both Chambers

Both upper and lower chamber have a steel insert

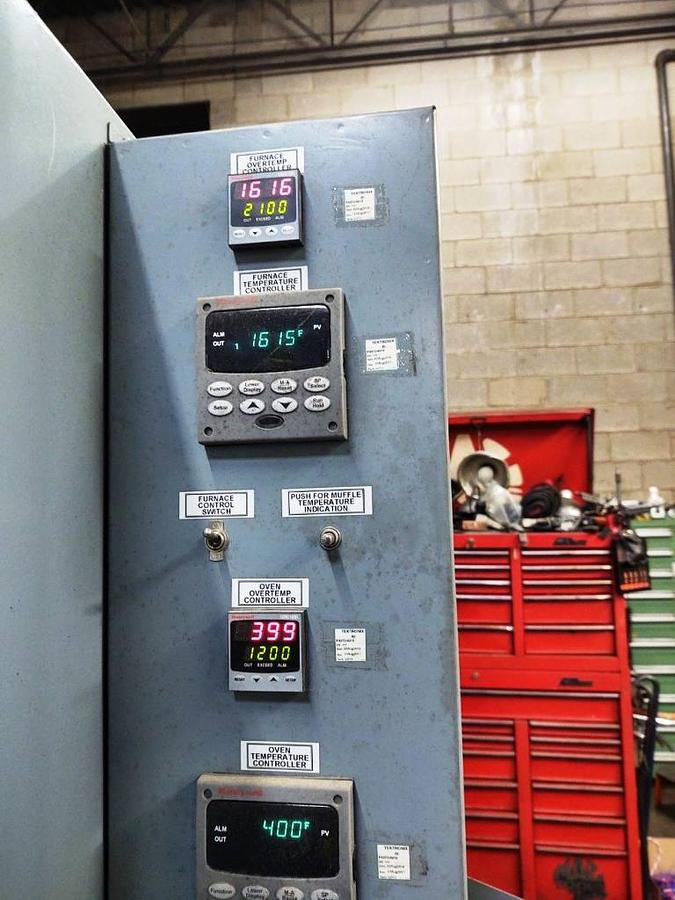

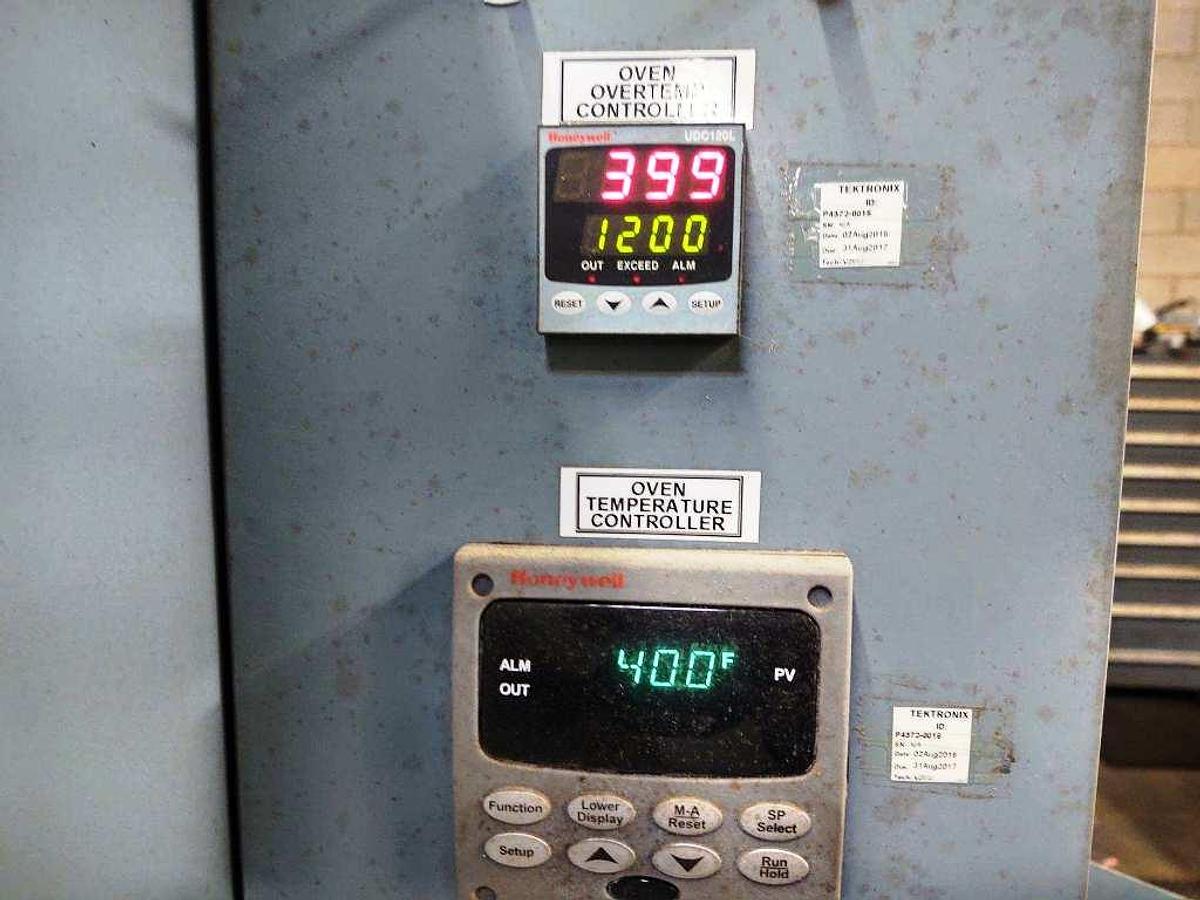

Honeywell Temperature Controls for Each Chamber

Upper Chamber equipped for Nitrogen Atmosphere

Wired for 3 Phase, 208 Volts, 24.5 KW, 70 AMPS

Overall Size: 45" LR x 60" FB x 74" High x 2,800 Lbs.
